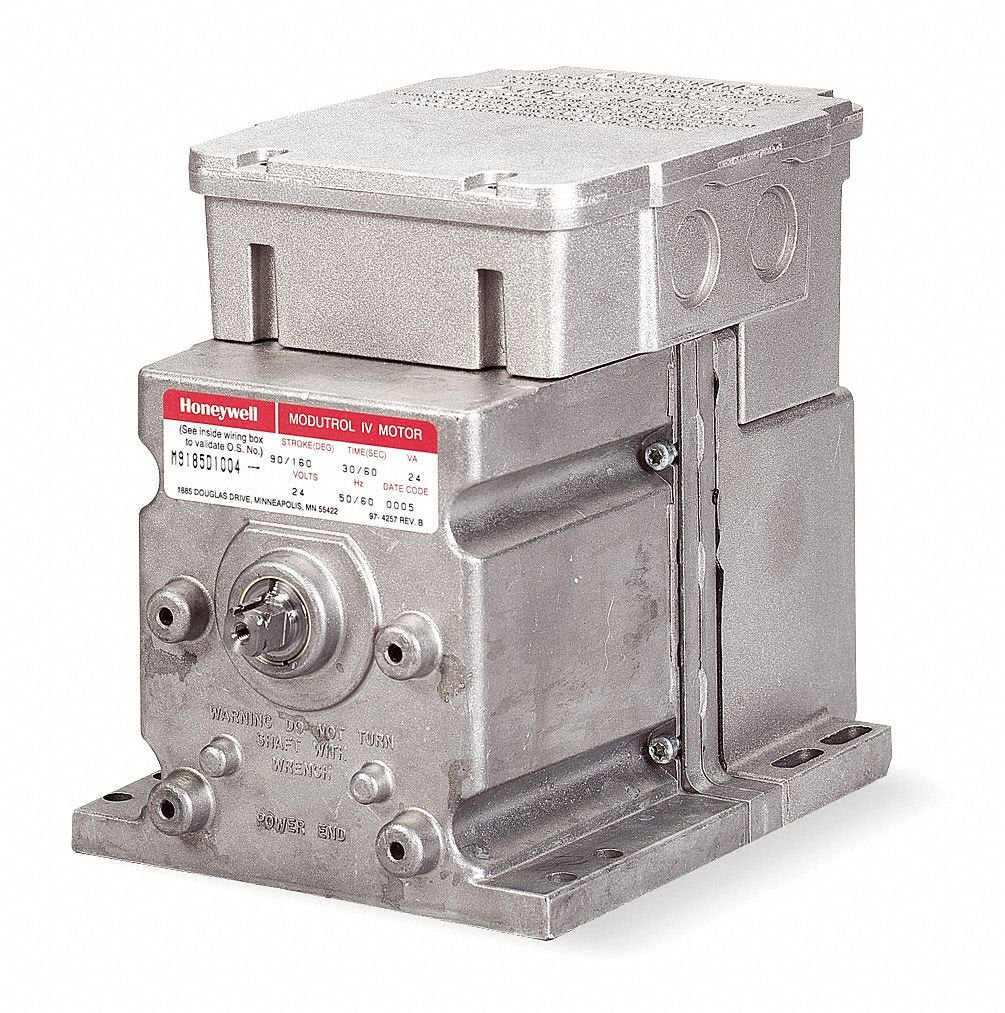

Honeywell M8185D1006 Modutrol IV Motor 24V Spring Return Actuator

Product Description

The Honeywell M8185D1006 is a high-efficiency Modutrol IV Motor designed for reliable operation of dampers and valves in HVAC systems. This model is recognized for its robust construction and performance, ensuring a dependable 24V spring return actuator mechanism.

• Equipped with a spring return feature that ensures fail-safe operation by returning the motor to its original position upon power interruption.
• Features a 60 Inch-lb torque and adjustable stroke from 90 to 160 degrees, suitable for various applications.
• Dual-ended square shaft design enhances installation flexibility and compatibility with different types of equipment.

Product Highlights

This actuator's integral junction box provides NEMA 3 weather protection, making it ideal for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: Honeywell
• MPN: M8185D1006

Technical Specifications

• Control Signal: 2-Position, SPST
• Fail Safe Mode: Spring Return
• Rotation Angle: CW
• Voltage Rating: 24 V, 50/60 Hz
• Power Consumption: 20 VA
• Electrical Connection: Quick Connect
• Dimensions: 6-7/16 Inch H x 5-1/2 Inch W x 8-3/4 Inch D
