Belimo AFRB24 Direct Coupled Actuator 180 in-lb

Product Description

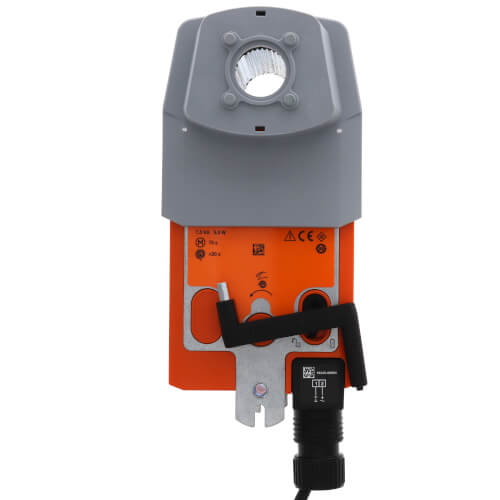

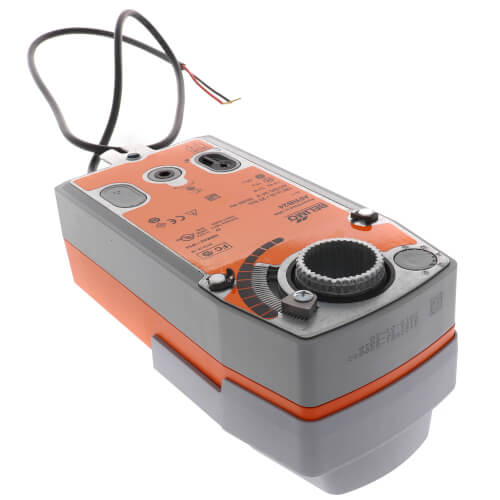

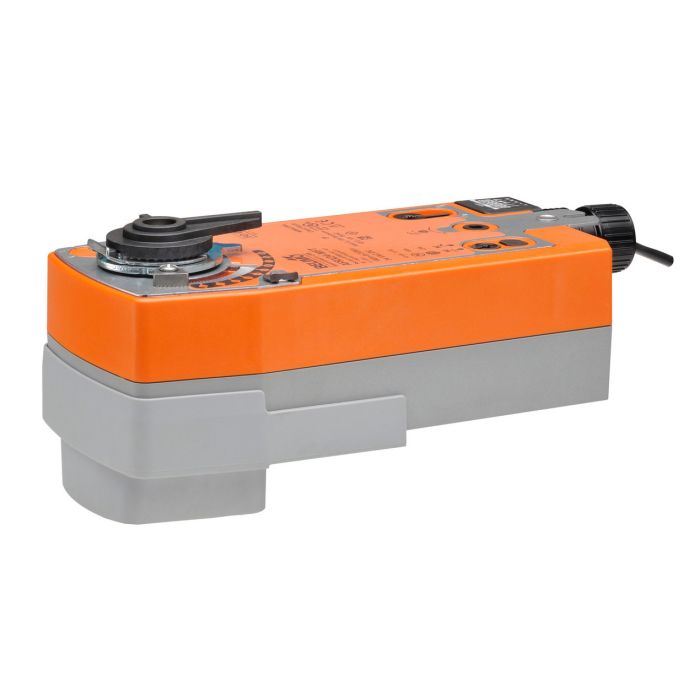

The Belimo AFRB24 is a direct coupled actuator designed to provide reliable control for dampers and valves. This actuator operates with a torque rating of 180 inch-pounds and is suitable for HVAC systems. It features a spring return function and operates on 24 VAC/DC power.

• Torque rating: 180 inch-pounds
• Spring return functionality
• Suitable for both heating and cooling applications

Product Highlights

The Belimo AFRB24 actuator is used in various air handling systems including fan coil units and VAV boxes. It is effective in hydronic systems and can handle both variable and constant flow applications.

Product Information

Standard Information

• Brand: Belimo
• MPN: AFRB24

Technical Specifications

• Actuator Type: Valve
• Power Supply: 24 VAC/DC
• Torque: 180 lb-in
• Power Consumption: 5 W Running, 2.5 W Holding
• Fail Safe Mode: Spring Return
• Ambient Temperature: -22 F to +122 F
• Manual Override: Yes
• Control Input: On/Off
