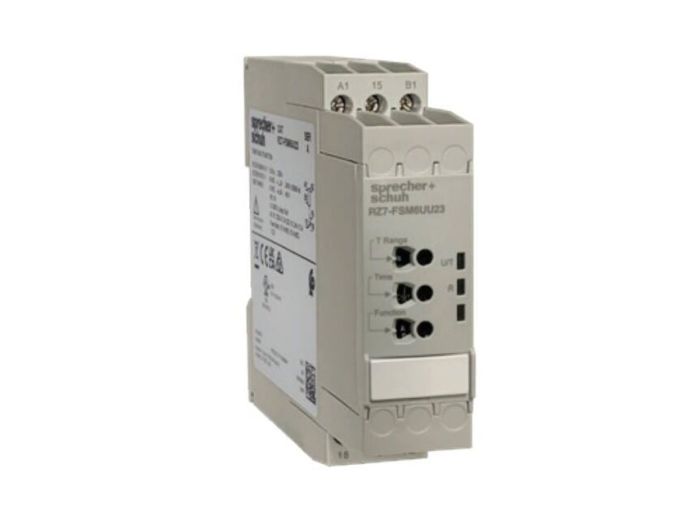

Sprecher + Schuh RZ7-FSA7UU23 Timing Relay 22.5mm

Product Description

The Sprecher + Schuh RZ7-FSA7UU23 is a timing relay from the RZ7-FS series, designed for on-delay operations. This 22.5mm timing relay features a DPDT contact configuration and an adjustable timing range. It is suitable for various industrial applications requiring precise timing control.

• Timing range of 0.05 seconds to 300 hours
• DPDT contact configuration
• DIN rail mounting

Product Highlights

The Sprecher+Schuh RZ7-FSA7UU23 timing relay offers precise timing control with easy installation.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: RZ7-FSA7UU23

Technical Specifications

• Manufacturer Part Number: RZ7-FSA7UU23
• Manufacturer: Sprecher + Schuh
• Product Series: RZ7-FS
• Family Series: Sprecher + Schuh Relays, RZ7-FS Series
• Description: Timing Relay 22.5mm
• Operation: On Delay
• Contacts: DPDT
• Mounting: DIN Rail
• Status Indicator: LED
• Time Range Adjustment: Onboard
• Adjustment Operator: Screwdriver Slot
• Timing Range: 0.05 s to 300 hrs
• Max Time: 300 Hrs
• Time Tolerance: 0.2 %
• Coil Voltage: 24-240 VAC, 24-48 VDC
• Nominal Coil Voltage: 24 VAC, 24 VDC, 48 VAC, 48 VDC, 120 VAC, 208 VAC, 240 VAC
• AC Voltage: 24-240 VAC
• DC Voltage: 24-48 VDC
• Contact Rating: 5 A
• Termination: Screw Terminals
• Protection Rating: IP40
• Approvals: CCC, CE, cUL
• Net Weight: 0.325 lbs
• Gross Weight: 0.325 lbs
• Product Type: Electronic Timing Relay
• Supply Voltage: 24 to 48 V dc 24 to 240 V
• Function Type: On-Delay
• Frequency Rating: 50/60 Hz
• Reset Time: <80 ms
• Switching Voltage: 500 V ac
• Switching Current: 3 A
• Setting Accuracy: ±6 %
• Repeatability: ±0.2 %
• Timer Energized: 100 %
• Dielectric Strength: 6000 V
• Electrical Life: 100000 Cycles
• Mechanical Life: 30000000 Cycles
• IP Rating: IP40
• Height: 85.6 mm
• Width: 22.5 mm
• Depth: 113.4 mm
• Minimum Operating Temperature: -25 °C
• Maximum Operating Temperature: 60 °C
• Standards Met: cULus Listed (File No. E14840, Guide NKCR/NKCR7) CE Marked UKCA C-tick EN/IEC 60947-1 EN/IEC 60947-5-1 UL 508 CAN/CSA C2
• UNSPSC Code: 39120000
• Brand: Sprecher + Schuh
• Unit of Measure: EA
• Primary brand: Sprecher+Schuh
• Order code / Manufacturer SKU: RZ7-FSA7UU23
• Manufacturer product status: Commercialized
• Operating Temperature: -25 °C to 60 °C
