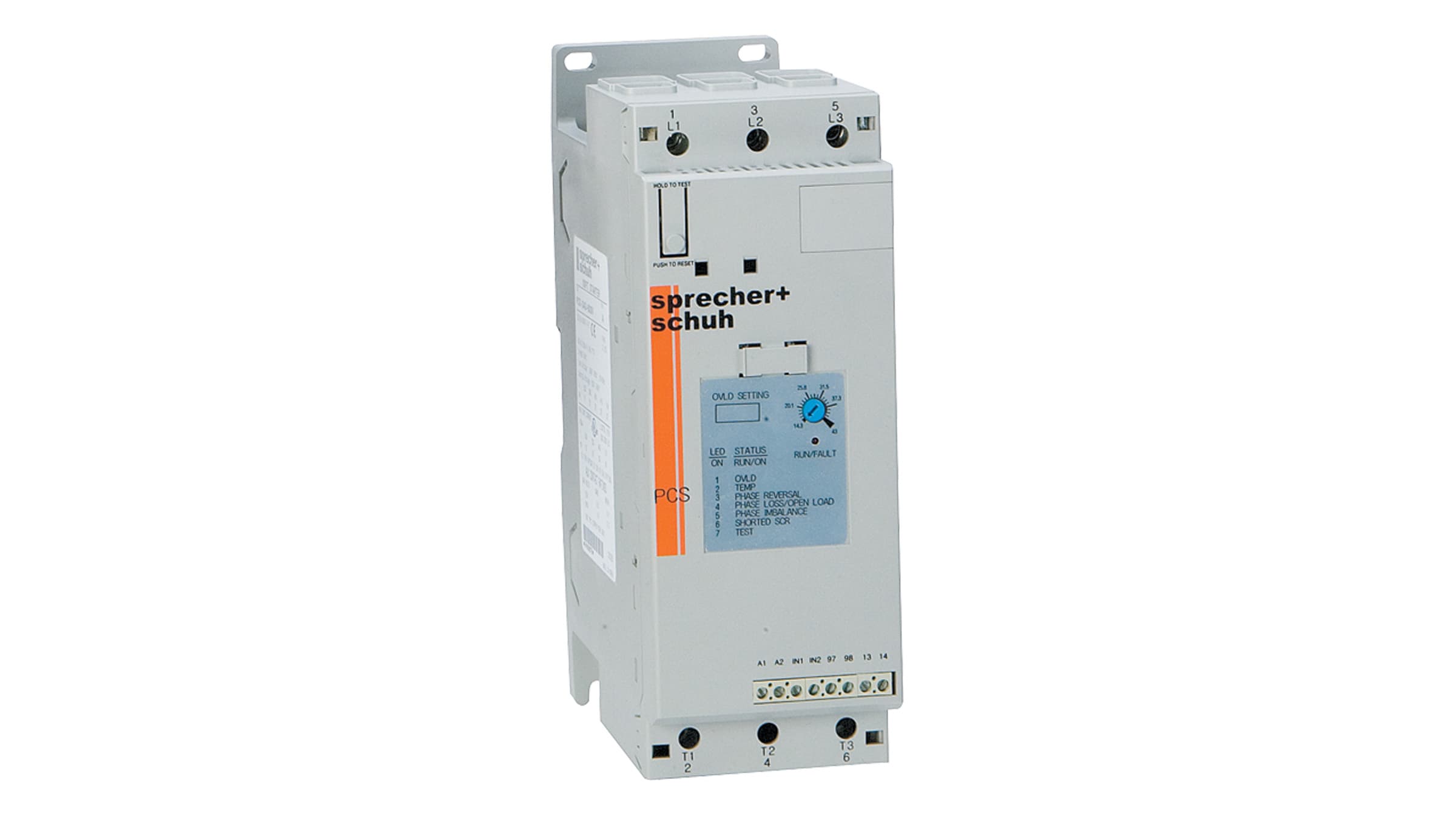

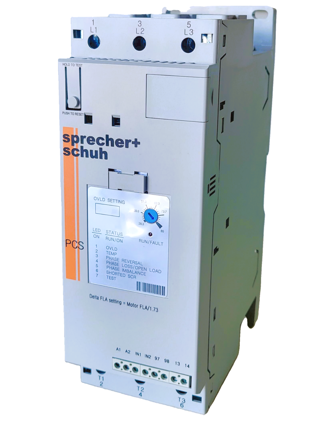

Sprecher + Schuh PCS-085-600V SOFTSTR 85A 600V 100-240VAC

Product Description

The SPRECHER + SCHUH PCS-085-600V is a PCS softstarter with an 85A current rating and a 100-240V AC control voltage. It is designed for motor power applications ranging from 10 to 25 hp and 25 HP at 200V, 30 HP at 230V, 60 HP at 460V, and 75 HP at 575V. This open-type soft starter is part of the PCS series.

• 85A current (AC-3) rating
• 100-240V AC coil voltage
• Open type enclosure

Product Highlights

The SPRECHER + SCHUH PCS-085-600V soft starter provides efficient motor control with a wide range of horsepower compatibility.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: PCS-085-600V

Technical Specifications

• Type: Open Type
• Approvals: cUL, CE
• UL Certification: YES
• CE Certification: YES
• Current (AC-3): 85 A
• Coil Voltage: 100-240 VAC
• HP @ 3 Phase: 25 HP@200V / 30 HP@230V / 60 HP@460V / 75 HP@575V
• Function: Softstarter
• Enclosure: Open Type
• Series: PCS
• Amperage Rating: 28.3 to 85 A
• Motor Power: 10 to 25 hp
• Operating Temperature: 23 to 122 deg F
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39121521
