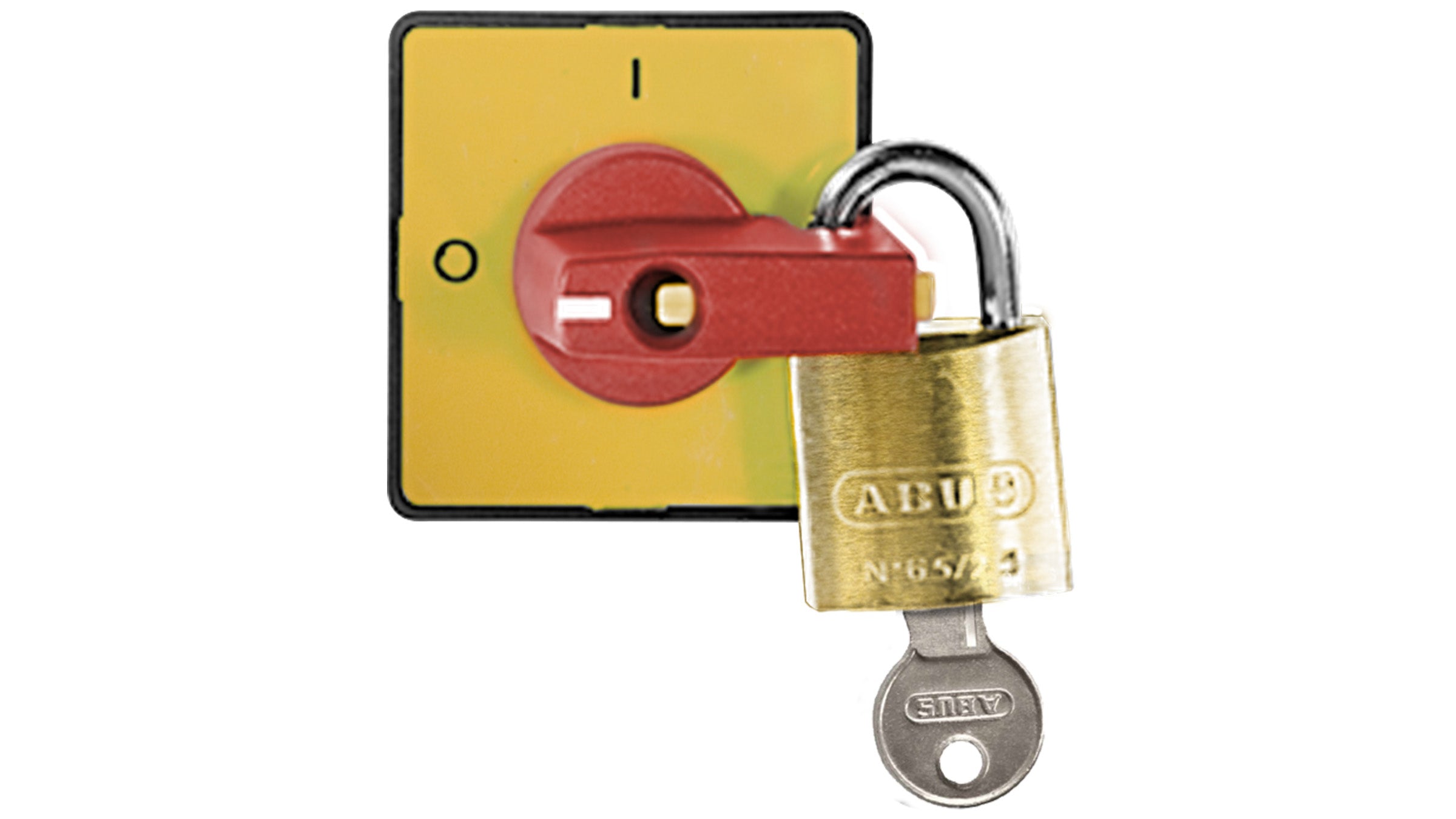

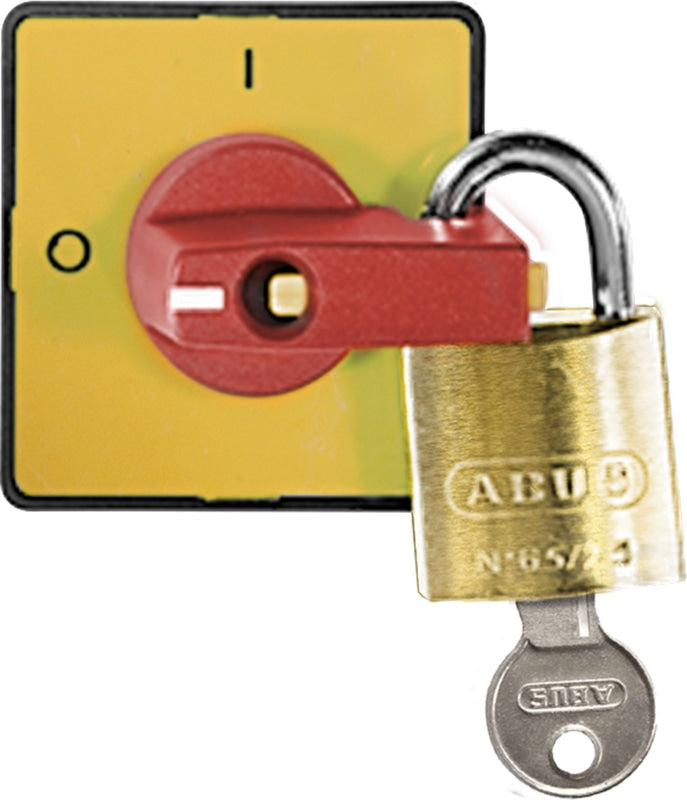

Sprecher & Schuh LFC2-L-4-175 Actuator L (48 x 48 mm) 0-1

Product Description

The Sprecher & Schuh LFC2-L-4-175 is an actuator L frame 48 x 48 mm with a 0-1 (off-on) center fixing, part of the L2 rotary cam switch line. It is designed for panel or base mount control and load switching applications and is rated for use with systems up to 25 A. The modular design supports multiple handle and fixing options and complies with UL508, UL, CSA, and CE standards.

• Actuator L frame 48 x 48 mm with 0-1 (off-on) center fixing; part of the L2 series
• Modular design with up to 10 handle options, screw or center nut fixing, and up to 6 switch positions
• Rated for applications up to 25 A; UL508 listed and compliant with UL, CSA, and CE standards; suitable as a motor disconnect

Product Highlights

L2 series actuator L frame, 48 x 48 mm, 0-1 center fixing, up to 25 A, UL508/UL/CSA/CE certified

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: LFC2-L-4-175
• Country of Origin: Republic of Poland

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: LFC2-L-4-175
• Series: L2 (to 25 A)
• Product Type: Actuator L frame 48 x 48 mm, 0-1 center
• Size / Dimensions: 48 x 48 mm (front escutcheon cutout / face)
• Configuration: 0-1 (off-on) center fixing
• Mounting: Panel mount or base mount
• Current Rating: Up to 25 A
• Handle Options: Up to 10 handle options
• Fixing: Screw or center nut fixing
• Switch Positions: Up to 6 positions
• Certifications / Compliance: UL508, UL, CSA, CE
• Suitable Use: Suitable as a motor disconnect; lockout/tagout compatible knobs
• Protection Rating: IP66
• NEMA Rating: NEMA 12
• Padlockable: Yes
• Defeatable: No
• Country of Origin: Republic of Poland
• Material Description: Escutcheon L 48 x 48 0-1
• Net Weight: 50.009 g
• Manufacturer: Sprecher + Schuh
• Family / Group: Cam switch accessories / L2/R cam switch accessories
