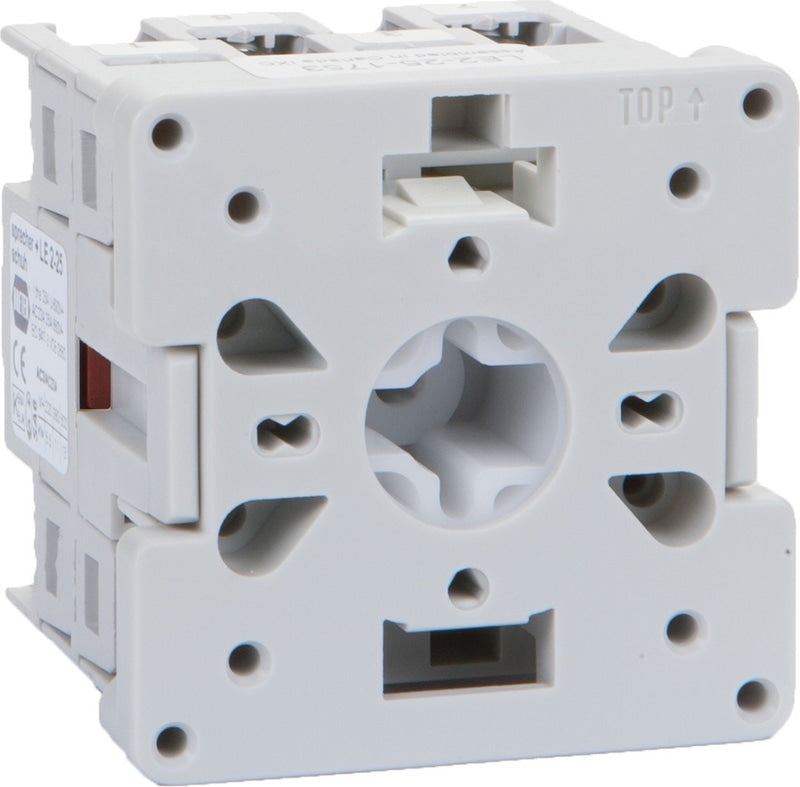

Sprecher + Schuh LE2-25-1752 Rotary Cam Switch 25 Amp 1 Pack

Product Description

The Sprecher + Schuh LE2-25-1752 rotary cam switch is designed for control and load applications up to 25 amps. This modular switch offers flexibility with panel mount or base mount options and is suitable as a motor disconnect. It features a well-thought-out ordering system for standard and nonstandard configurations, ensuring reliable operation for various electrical systems. The switch supports an amperage range of 12A to 25A and is UL508 Listed, UL, CSA, CE certified.

• Modular design with panel mount or base mount options for total flexibility.
• Supports control and load switching up to 25 amps, suitable for motor disconnect applications.
• UL508 Listed, UL, CSA, CE certified for reliable and safe operation.

Product Highlights

This rotary cam switch offers attractive design, reliable operation, and high quality for applications up to 25 Amps.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: LE2-25-1752
• Country of Origin: Poland

Technical Specifications

• SKU: SPRLE2251752
• Series: L2 to 25 A
• Alternate Names: LE2251752
• Mounting Type: Panel mount or Base Mount
• Amperage Range: 12A to 25A
• Panel Cutout Dimensions: 42 x 42 mm and 55 x 55 mm
• Handle Options: 10
• Fixing Type: Screw nut or center nut
• Switch Positions: Up to 6
• Certifications: UL508 Listed, UL, CSA, CE
• Suitability: Suitable as Motor Disconnect
• Part Number: LE2-25-1752
• RoHS Compliant: Yes
