Sprecher & Schuh L8-7/3/C Supplementary Protectors 7A

Product Description

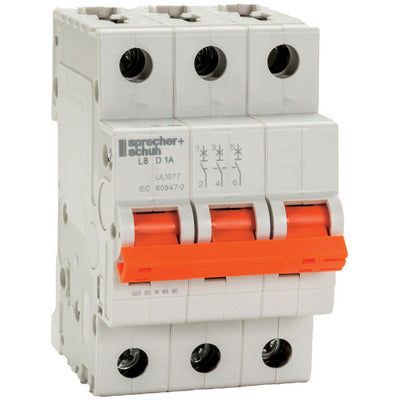

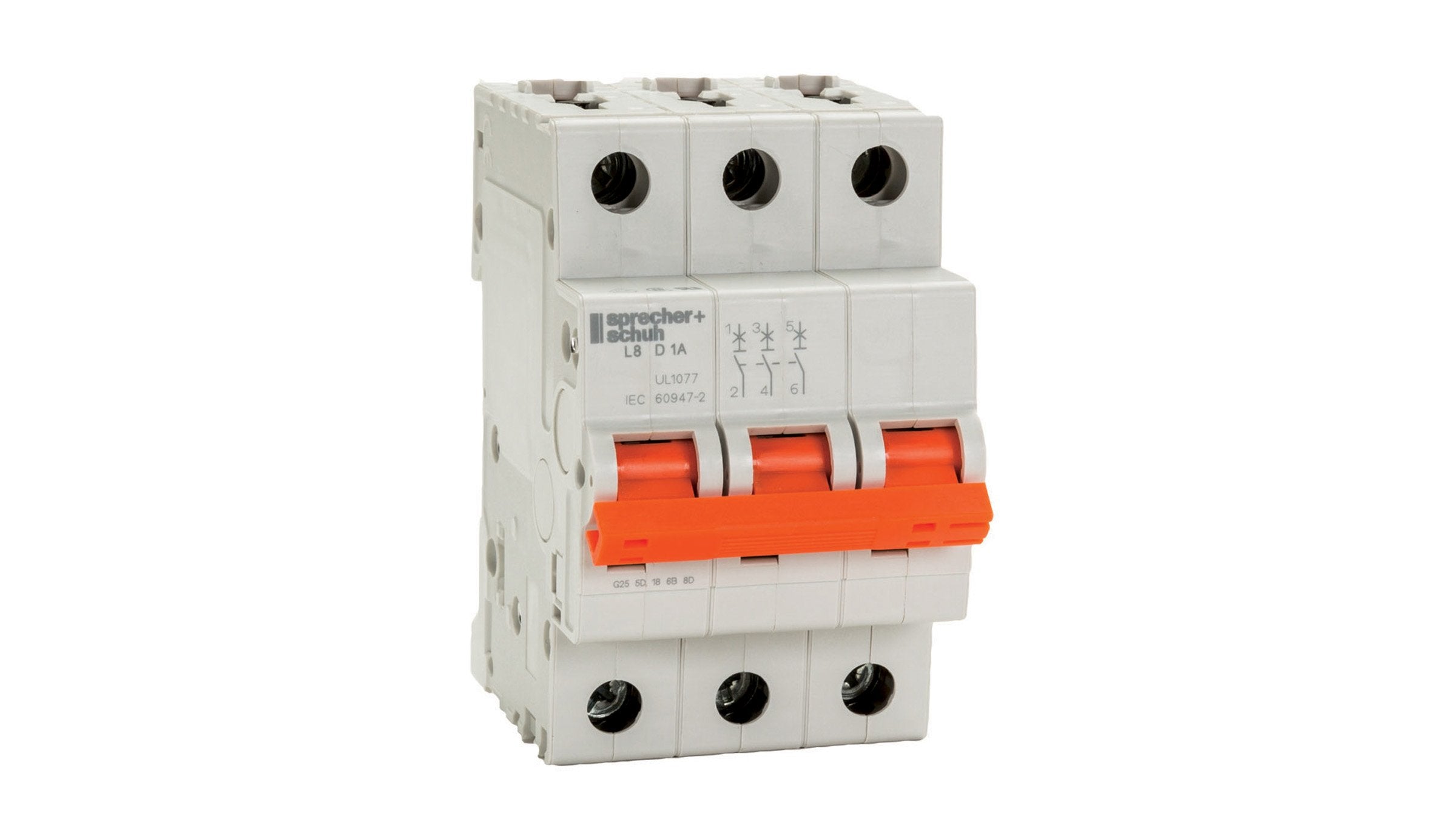

The Sprecher + Schuh L8-7/3/C is a supplementary protector with CURVE-C, rated at 7A, and is 3-pole. It adheres to UL1077, NFPA79, CSA, and CE standards. This supplementary protector is suitable for DIN rail mounting and has an IP20 rating. It features a B-Tripping characteristic and includes auxiliary and signal contacts.

• Current Rating: 7 A
• Supply Voltage: 480Y/277 V ac
• Standards Met: CE Marked

Product Highlights

Supplementary protector with 7A current rating and multiple certifications.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-7/3/C

Technical Specifications

• UNSPSC Code: 39120000
• Brand: Sprecher + Schuh
• Manufacturer Part Number: L8-7/3/C
• Primary brand: Sprecher+Schuh
• Order code / Manufacturer SKU: L8-7/3/C
• Manufacturer product status: Commercialized
• Product Type: Supplementary Protector
• Series: L8
• Supply Voltage: 480Y/277 V ac
• Current Rating: 7 A
• Number of Poles: 3
• Frequency Rating: 50/60 Hz
• Insulation Voltage: 440 V ac (Phase-to-Phase)
• Overvoltage Category: III
• Electrical Life: 20000 Cycles
• Mechanical Life: 20000 Cycles
• Mounting Style: DIN Rail
• Terminal Type: Lead Wire
• Tripping Characteristics: B
• Auxiliary Contact (Yes/No): Yes
• Signal Contact (Yes/No): Yes
• Shunt Trip (Yes/No): Yes
• IP Rating: IP20
• Minimum Operating Temperature: -25 4.466522535511437
