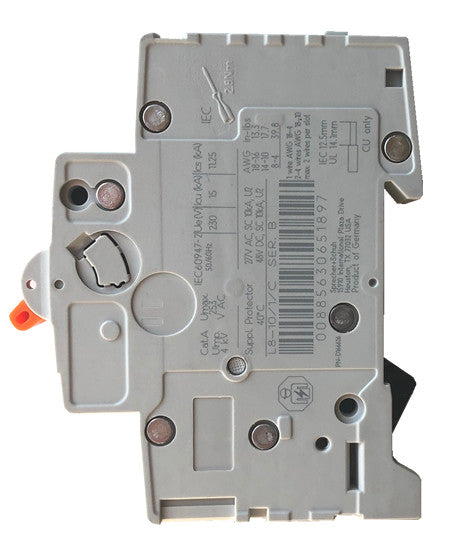

Sprecher & Schuh L8-5/1/C Circuit Breaker 5A

Product Description

The SPRECHER & SCHUH L8-5/1/C is a single pole 5 AMP miniature supplementary circuit breaker with C trip curve rating. It provides overcurrent protection for control circuits, solenoids, actuators, appliances, and business equipment. The circuit breaker has a visual trip indicator and mounts on standard DIN Rail with an on/off toggle switch.

• Provides overcurrent protection for a variety of low-voltage applications.
• Certified for international standards.
• DIN rail mountable for quick and easy installation.

Product Highlights

The SPRECHER & SCHUH L8-5/1/C supplementary circuit breakers are offered as a broad portfolio of pole variants, current ratings, and trip curves to match the appropriate level of protection for your application.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-5/1/C
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: L8-5/1/C
• Manufacturer: Sprecher + Schuh
• Product Series: L8
• Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
• Description: CB 5A CURVE-C 1-POLE
• Poles: 1
• Current Rating: 5 A
• Max Voltage: 277 VAC
• Trip Curve: C
• Trip Unit: Thermal Magnetic
• Electronic Trip Unit: No
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 1077
• Approvals: CE, CSA, IEC, UL, UR
• Net Weight: 0.255 lbs
• Gross Weight: 0.255 lbs
• Warranty: 1 Year
• Series: L8 Series
• Circuit Breaker Type: UL1077
• Short Circuit Capacity: 10kA
• Amp Rating: 5 Amp
• All - Voltage: 277VAC/48VDC
• Number of Poles: 1 Pole
• Operating Temperature: -15 °C (5 °F)
• Maximum Amperage: 400 A
• Amperage Rating: 5
• Voltage Rating: 230/400
• Model: C 5
• Dimensions: 88 x 69 x 17.5 mm
• UNSPSC Code: 39120000
