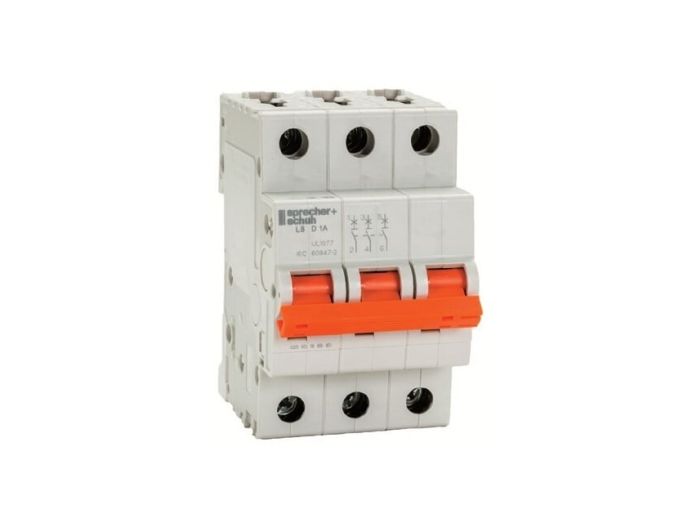

Sprecher & Schuh L8-30/3/C Circuit Breaker 30A 3-Pole

Product Description

The Sprecher & Schuh L8-30/3/C is a 3-pole circuit breaker with a 30A current rating. Series L8 Supplementary Protectors provide supplemental overcurrent protection for control circuits, solenoids, actuators, appliances, business equipment and a range of other applications where a high performance current limiting device is required.

• UL 1077 Supplementary Protectors for Use in Appliances or Electrical Equipment
• CSA 22.2 No. 235 Supplementary Standard
• For use in the United States in accordance with NFPA 79 (NEC).

Product Highlights

Offers overcurrent protection for various applications with global approvals, ideal for equipment installed worldwide.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-30/3/C
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: L8-30/3/C
• Manufacturer: Sprecher + Schuh
• Product Series: L8
• Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
• Description: CB 30A CURVE-C 3-POLE
• Poles: 3
• Current Rating: 30 A
• Max Voltage: 480 VAC
• Trip Curve: C
• Trip Unit: Thermal Magnetic
• Electronic Trip Unit: No
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 1077
• Approvals: CE, CSA, IEC, UL, UR
• UNSPSC Code: 39120000
• Brand: SPRECHER & SCHUH
• Applications: up to 480V AC and 96V DC
• IP Rating: IP20 protection against accidental contact
• Status Indicator: Color coded status indicator
• Current Range: Broad range of currents
• Interrupting Capacity: up to 10 kA
• UL: UL Recognized, UL1077
• CSA: CSA 22.2 No.235
• IEC: IEC 60947-2
• CE: CE marked
• Amps: 30A
• Trip Characteristic: C
