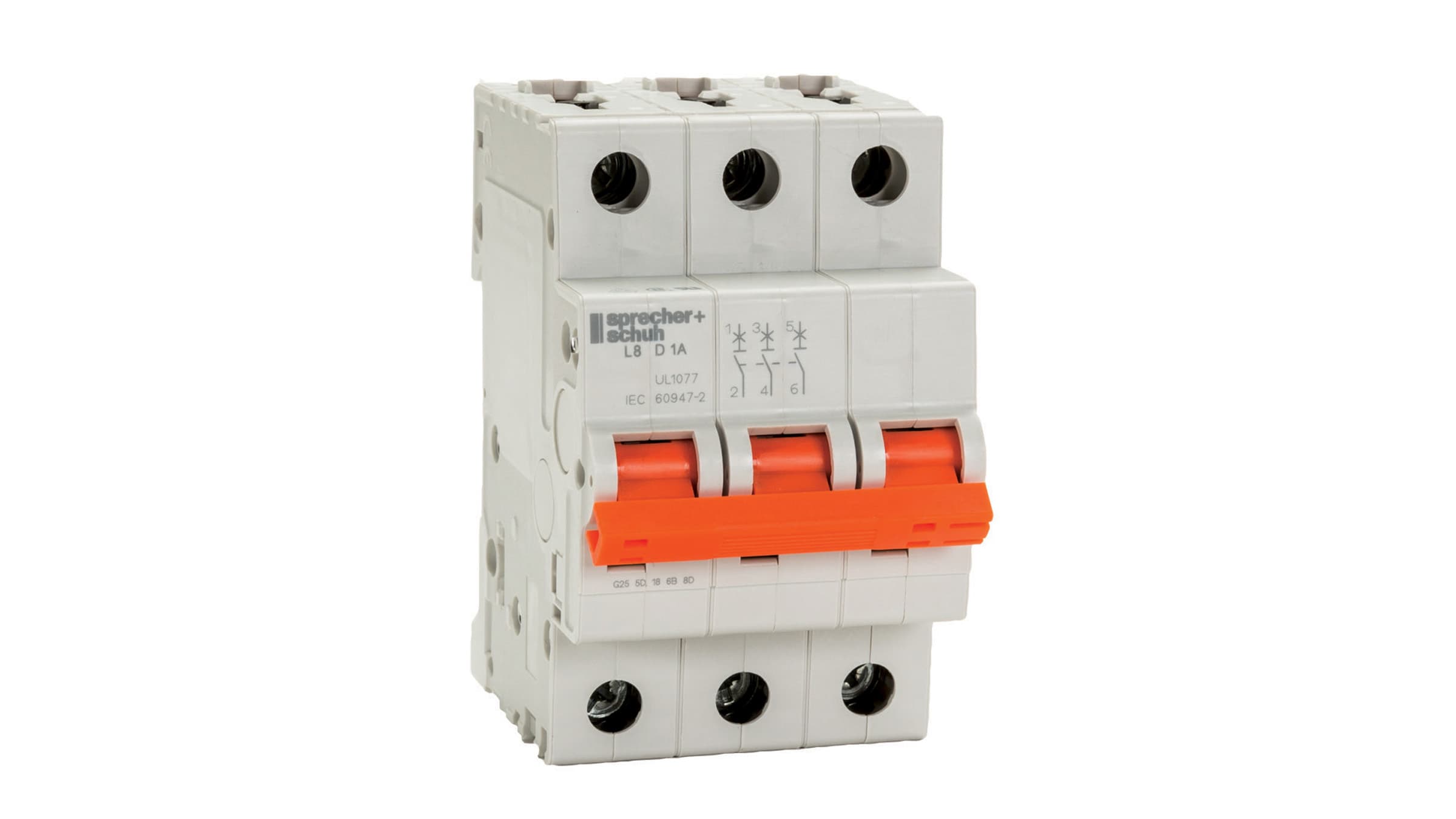

Sprecher + Schuh L8-3/3/C Supplementary Protectors 3A 3P UL1077/ NFPA79/ CSA/ CE

Product Description

The Sprecher + Schuh L8-3/3/C supplementary protector is designed for reliable circuit protection. This 3A, 3-pole protector features a Curve-C trip characteristic and is UL1077, NFPA79, CSA, and CE approved. Ideal for applications up to 480V AC and 96V DC, it mounts easily on DIN rails.

• RoHS Compliant
• New at RS
• Applications up to 480V AC and 96V DC

Product Highlights

Supplementary protector with Curve C trip, 3A current rating, and multiple certifications.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-3/3/C

Technical Specifications

• Brand: Sprecher + Schuh
• Manufacturer Part Number: L8-3/3/C
• Number of Poles: 3 Pole
• Current Rating: 3 A
• Trip Curve: C
• Approvals: CE, CSA, IEC, UL, UR
• CSA Certification: YES
• UL Certification: YES
• CE Certification: YES
• Mounting: DIN Rail
• Function: Supplementary Protectors
• Series: L8
• Manufacturer: Sprecher + Schuh
• Product Series: L8
• Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
• Description: CB 3A CURVE-C 3-POLE
• Poles: 3
• Max Voltage: 480 VAC
• Trip Unit: Thermal Magnetic
• Electronic Trip Unit: No
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 1077
• Trip Type: Type-C
• Application: For Applications up to 480V AC and 96V DC
• Mounting Type: DIN Rail
• Enclosure Type: IP20/IP40
• Voltage Rating: 480Y/277
• Frequency Rating: 50 to 60
• Temperature Rating: -25 to 60
• Dimensions: 3.46 in H x 0.69 in W x 2.72 in D
• Amperage Rating: 3
