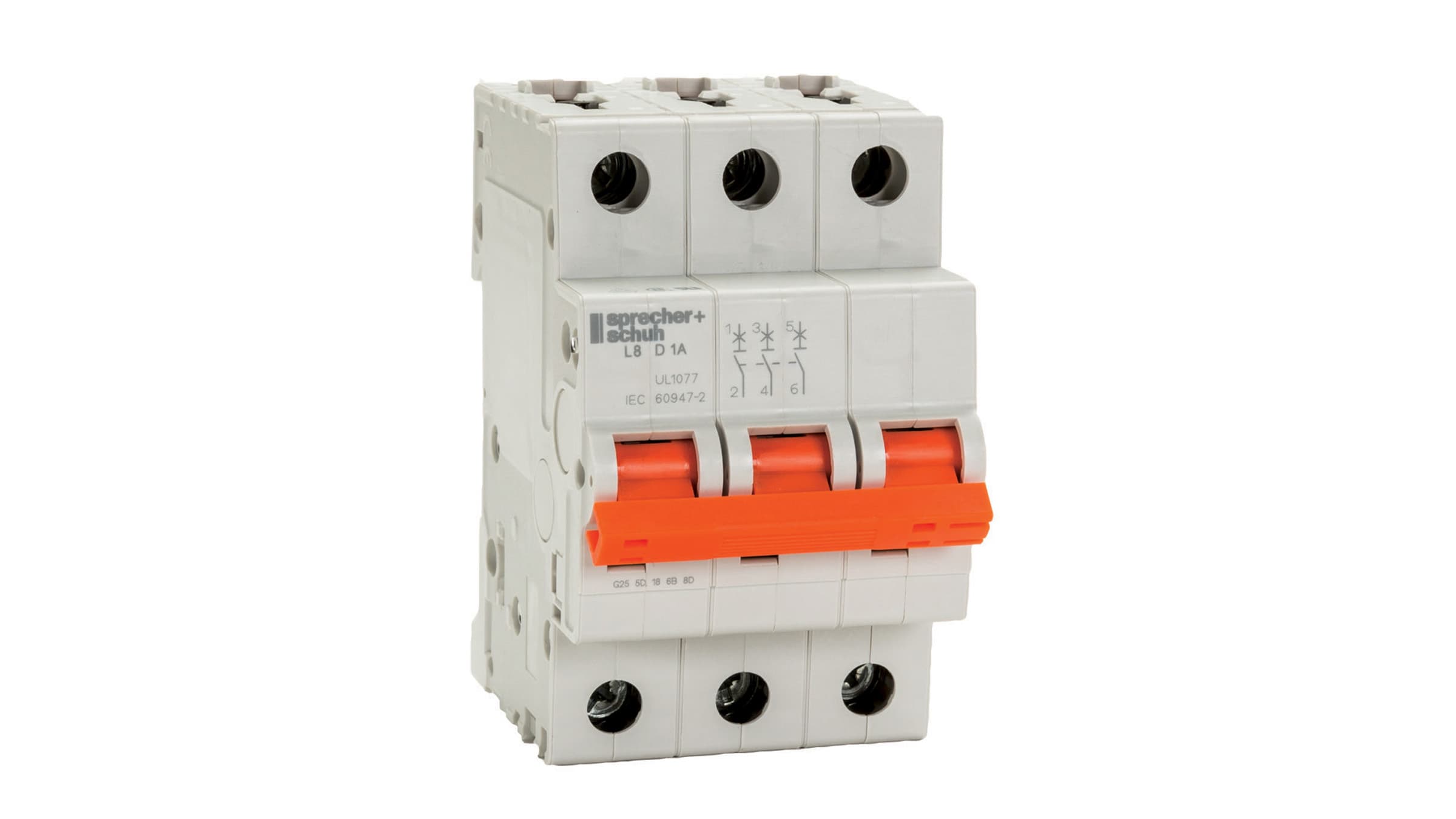

Sprecher & Schuh L8-20/3/D L8 Protector 20 A

Product Description

The SPRECHER & SCHUH L8-20/3/D is a supplementary protector designed for applications up to 480V AC and 96V DC. It features a Curve-D trip characteristic and a color-coded status indicator. This 3-pole protector has a 20A current rating and a 10kA interrupt capacity, and is UL1077, NFPA79, CSA, and CE compliant.

• Applications up to 480V AC and 96V DC
• Color coded status indicator
• Broad range of currents

Product Highlights

Supplementary protector with Curve-D trip, color-coded status, and broad current range for AC/DC applications.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-20/3/D
• Country of Origin: DE

Technical Specifications

• Brand: Sprecher & Schuh
• Part Number #: L8-20/3/D
• SKU #: 2223668
• Series: L8
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39121603
• Part No: L8-20/3/D
• RoHS: Yes
• Operating Temperature: N/A
• MPN: knox50046940-L8-20/3/D
• Category: Business & Industrial
• Manufacturer Part Number: L8-20/3/D
• Manufacturer: Sprecher + Schuh
• Product Series: L8
• Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
• Description: CB 20A CURVE-D 3-POLE
• Poles: 3
• Current Rating: 20 A
• Max Voltage: 480 VAC
• Trip Curve: D
• Trip Unit: Thermal Magnetic
• Electronic Trip Unit: No
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 1077
• Approvals: CE, CSA, IEC, UL, UR
• Number of Poles: 3 Pole
• CSA Certification: YES
• UL Certification: YES
• CE Certification: YES
• Function: Supplementary Protectors
