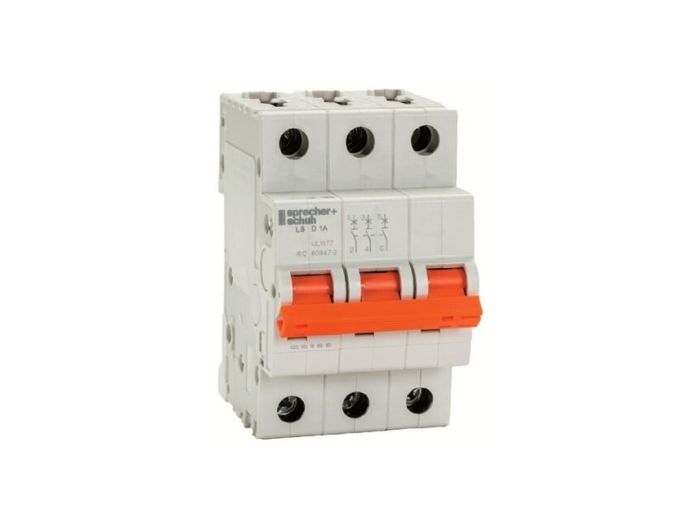

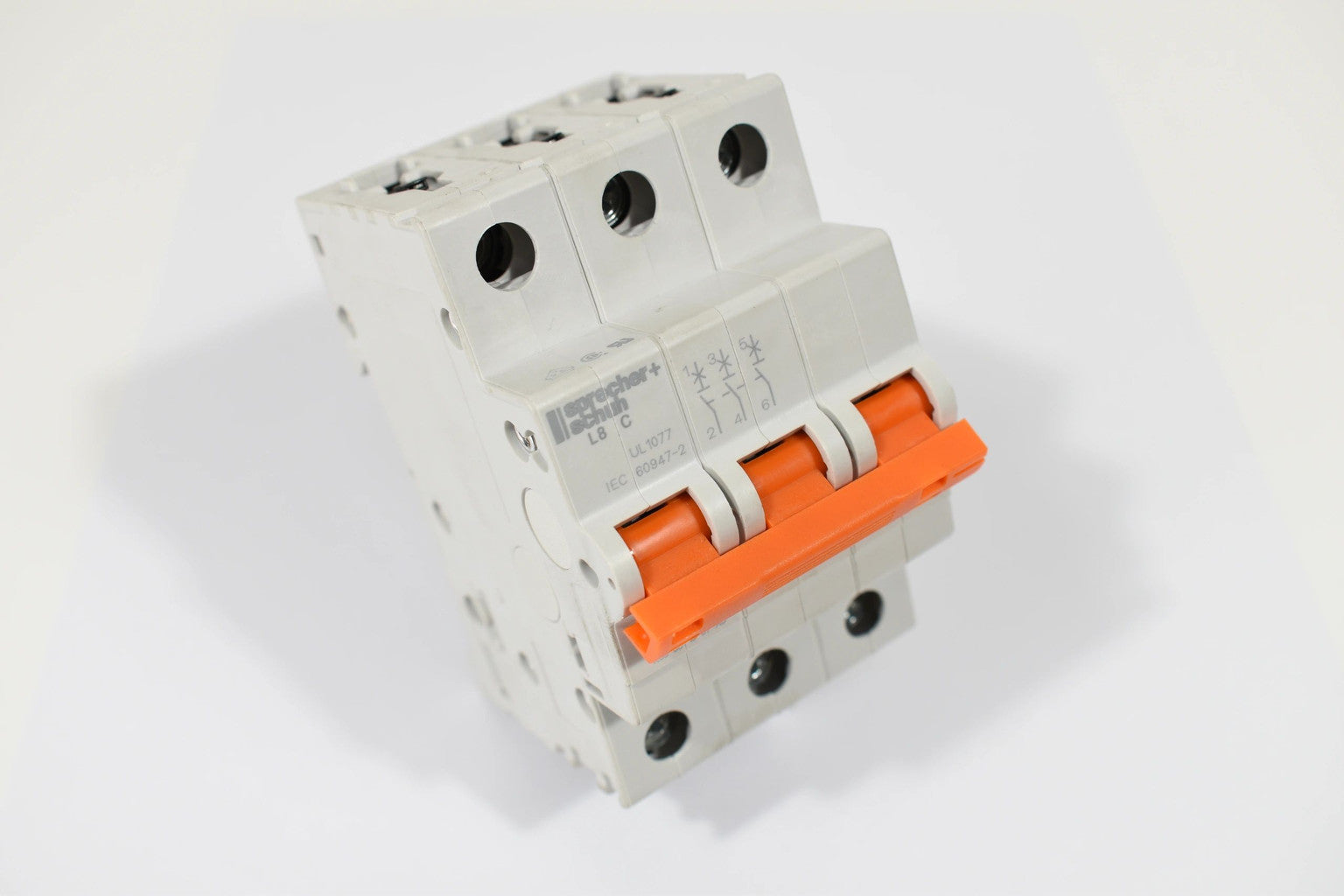

Sprecher & Schuh L8-20/3/C Circuit Breaker 20A 3-Pole

Product Description

The SPRECHER & SCHUH L8-20/3/C is a 20A, 3-pole circuit breaker designed for optimal protection of electrical systems. This circuit breaker features a 10 kA interrupt rating and a Type C trip mechanism, suitable for applications up to 480V AC and 96V DC. Its compact design allows for seamless DIN rail mounting.

• Rated for up to 480V AC and 96V DC applications
• Features a Type C trip curve
• Designed for DIN rail mounting

Product Highlights

Provides reliable circuit protection with a compact design and broad application range.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: L8-20/3/C

Technical Specifications

• Manufacturer Part Number: L8-20/3/C
• Manufacturer: Sprecher + Schuh
• Product Series: L8
• Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
• Description: CB 20A CURVE-C 3-POLE
• Poles: 3
• Current Rating: 20 A
• Max Voltage: 480 VAC
• Trip Curve: C
• Trip Unit: Thermal Magnetic
• Electronic Trip Unit: No
• Mounting: DIN Rail
• Neutral Pole: No
• GFCI: No
• 100% Rated: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: No
• Alarm Switch: No
• UL Standard: 1077
• Approvals: CE, CSA, IEC, UL, UR
• Brand: Sprecher & Schuh
• Series: L8
• Trip Type: Type-C
• Application: For Applications up to 480V AC and 96V DC
• Mounting Type: DIN Rail
• Enclosure Type: IP20/IP40
• Voltage Rating: 480Y/277
• Frequency Rating: 50 to 60
• Temperature Rating: -25 to 60
• Amperage Rating: 20A
• Curve: C
