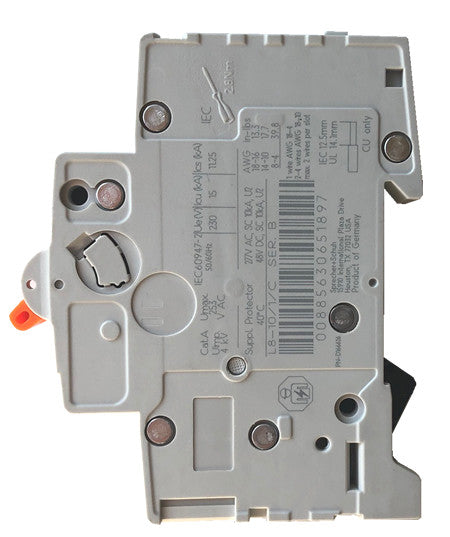

Sprecher & Schuh L8-10/1/C Circuit Breaker 10 Amp

SKU: L8-10/1/C
Availability: In Stock

Ships same day if ordered by 12 pm

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
$79.37
$79.37
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The Sprecher & Schuh L8-10/1/C single pole 10 AMP miniature supplementary circuit breaker has a C trip curve rating, effective where medium levels on inrush are expected, such as lighting, transformers, pilot devices, coils and control circuits. It features a visual trip indicator, mounts on standard DIN Rail and comes with a on/off toggle switch.

  • Visual trip indicator
  • DIN Rail mounting
  • On/off toggle switch

Product Highlights

Suitable for control circuits, solenoids, actuators, appliances, business equipment and other applications requiring high-performance current limiting.

Product Information

Standard Information

  • Brand: SPRECHER & SCHUH
  • Manufacturer Part Number: L8-10/1/C

Technical Specifications

  • AMP Rating: 10 Amp
  • Number of Poles: 1 Pole
  • Trip Curve: C
  • Mounting: DIN Rail
  • Manufacturer Part Number: L8-10/1/C
  • Manufacturer: Sprecher + Schuh
  • Product Series: L8
  • Family Series: Sprecher + Schuh Circuit Breakers, L8 Series
  • Current Rating: 10 A
  • Max Voltage: 277 VAC
  • Trip Unit: Thermal Magnetic
  • Electronic Trip Unit: No
  • Neutral Pole: No
  • GFCI: No
  • 100% Rated: No
  • Terminal Type: Screw
  • Auxiliary Switch: Optional
  • Shunt Trip: Optional
  • Undervoltage Release: No
  • Alarm Switch: No
  • UL Standard: 1077
  • Approvals: CE, CSA, IEC, UL, UR
  • Brand: Sprecher & Schuh
  • Short Circuit Capacity: 10kA
  • Circuit Breaker Type: UL1077
  • All - Voltage: 277VAC/48VDC

Vendor: SPRECHER & SCHUH
