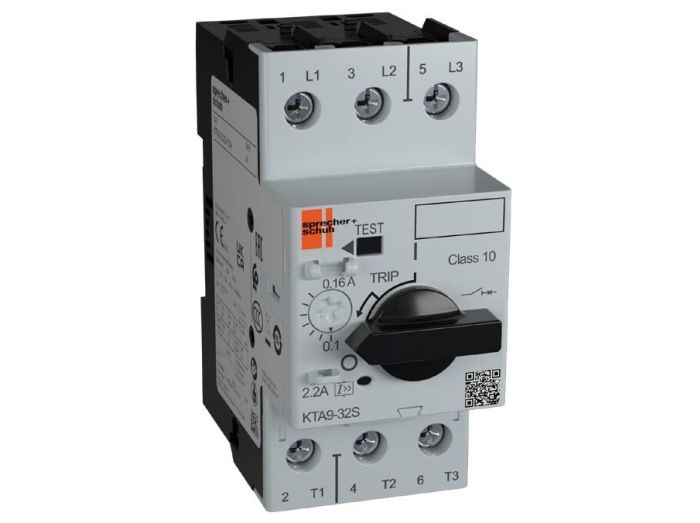

Sprecher & Schuh KTA9-32S-4.0 Motor Protection Circuit Breaker

Product Description

The Sprecher & Schuh KTA9-32S-4.0 is a 4A motor protection circuit breaker from the KTA9 series. It is designed to protect motors with an FLA adjustment range of 2.5-4. This open-enclosure circuit breaker features a rotary operator and provides IP2X protection.

• Current Rating: 4 A
• Trip Class: Class 10
• Protection Rating: IP2X

Product Highlights

Provides reliable motor protection with adjustable FLA and a Class 10 trip rating.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KTA9-32S-4.0
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: KTA9-32S-4.0A
• Manufacturer: Sprecher + Schuh
• Product Series: KTA9
• Family Series: Sprecher + Schuh Manual Motor Protectors, KTA9 Series
• Description: 4A Motor Protection Circuit B
• Current Rating: 4 A
• FLA Adjustment Range: 2.5-4
• Phase: 3
• Poles: 3
• Trip Class: Class 10
• Auxiliary Contact: None
• Enclosure: Open
• Operator: Rotary
• Pilot Light: No
• Protection Rating: IP2X
• Approvals: CCC, CE, CSA, cULus, IEC, UL
• Comments: KTA9-32S Standard Interrupting Capacity
• Brand: Sprecher & Schuh
