Sprecher + Schuh KTA9-32S-25A Motor Protector Adjustable 25A

Product Description

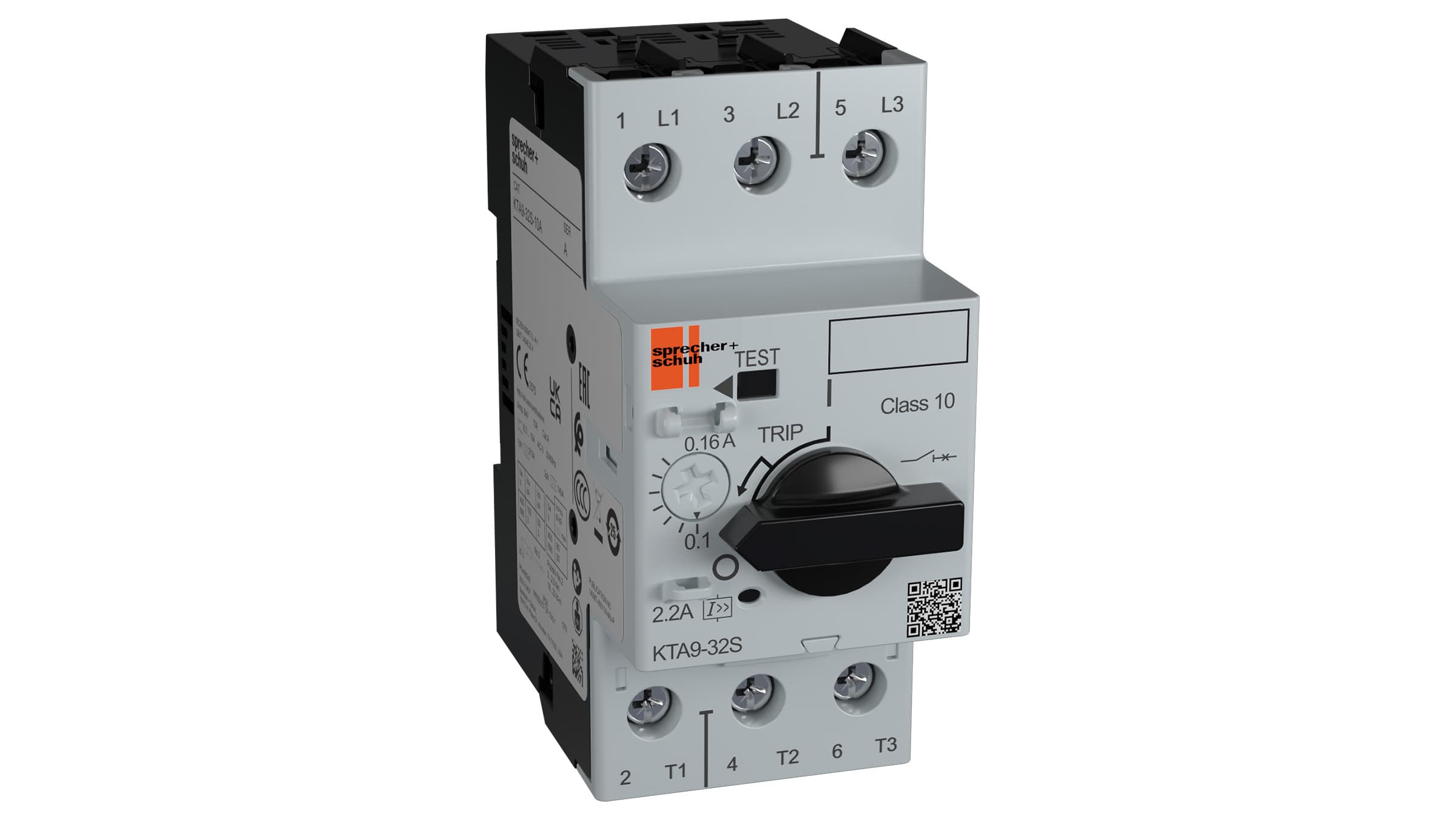

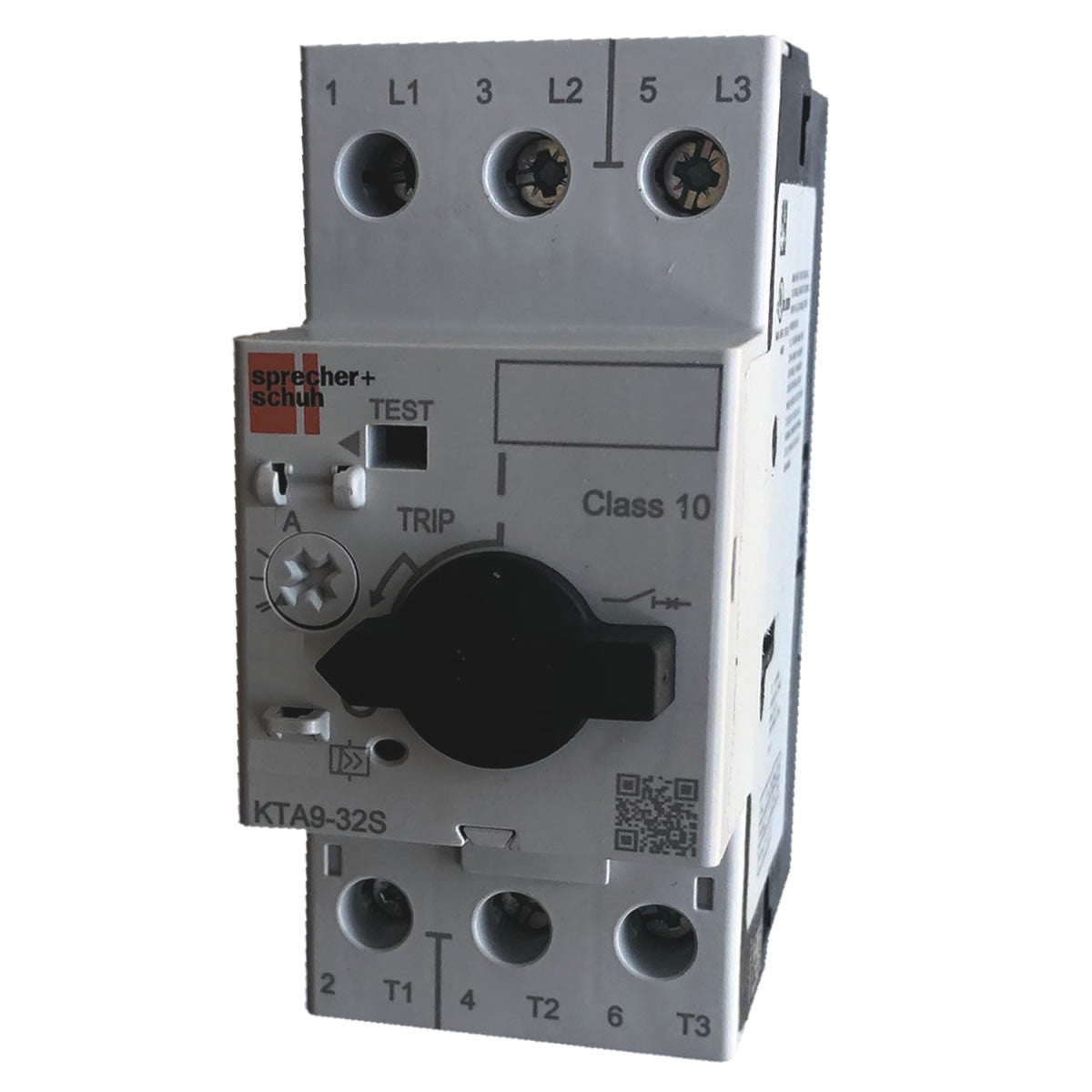

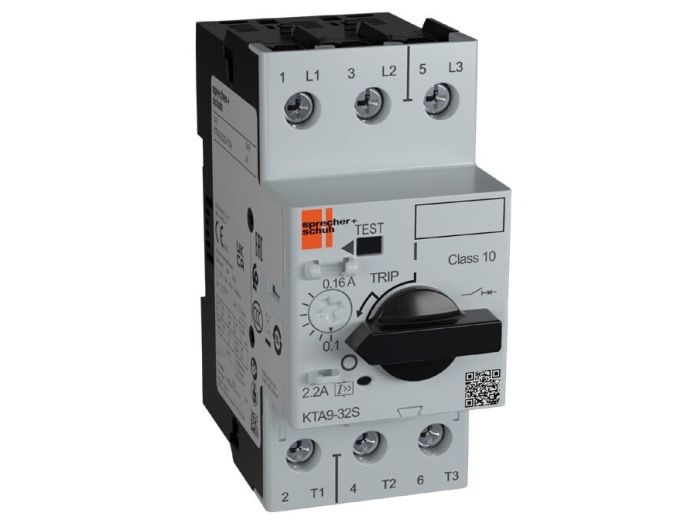

The Sprecher + Schuh KTA9-32S-25A motor protector is a reliable device designed to safeguard electrical motors from potential damage. It features adjustable AMP ranges from 18 to 25 AMPS and current limiting short circuit protection. It has screw terminals and a rotary ON/OFF handle. The motor protector can be mounted on standard 35MM DIN rail.

• Adjustable AMP ranges from 18 to 25 AMPS
• Current limiting short circuit protection
• Screw terminals

Product Highlights

Protects motors with overload and short-circuit protection. User-friendly manual control allows for easy adjustments. Compact design is space-efficient.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: KTA9-32S-25A
• Country of Origin: Mexico

Technical Specifications

• Overload Current: 18-25 A
• Function: Motor Protection Circuit Breaker
• Frame Size: C
• Breaking Capacity: Standard Capacity
• Magnetic Trip: 350 A
• Enclosure: Open Type
• Series: KTA9
• Type: Open Type
• Approvals: CCC, CE, CSA, cULus, IEC, UL508, UL
• UL Certification: YES
• HP @ 3 Phase: 5 HP@200V / 7.5 HP@230V / 15 HP @460V / 20 HP@575V
• Manufacturer Part Number: KTA9-32S-25A
• Manufacturer: Sprecher + Schuh
• Family Series: Sprecher + Schuh Manual Motor Protectors, KTA9 Series
• Description: XPRF MAN CTRL 32S 25A M7/9
• Current Rating: 25 A
• FLA Adjustment Range: 18-25
• Phase: 3
• Poles: 3
• Trip Class: Class 10
• Auxiliary Contact: None
• Operator: Rotary
• Pilot Light: No
• Protection Rating: IP2X
• NEMA Rating: NEMA 4, NEMA 7, NEMA 9
• Comments: KTA9-32S Standard Interrupting Capacity
• Brand: Sprecher & Schuh
• Condition: New
• Country of Origin: Mexico
