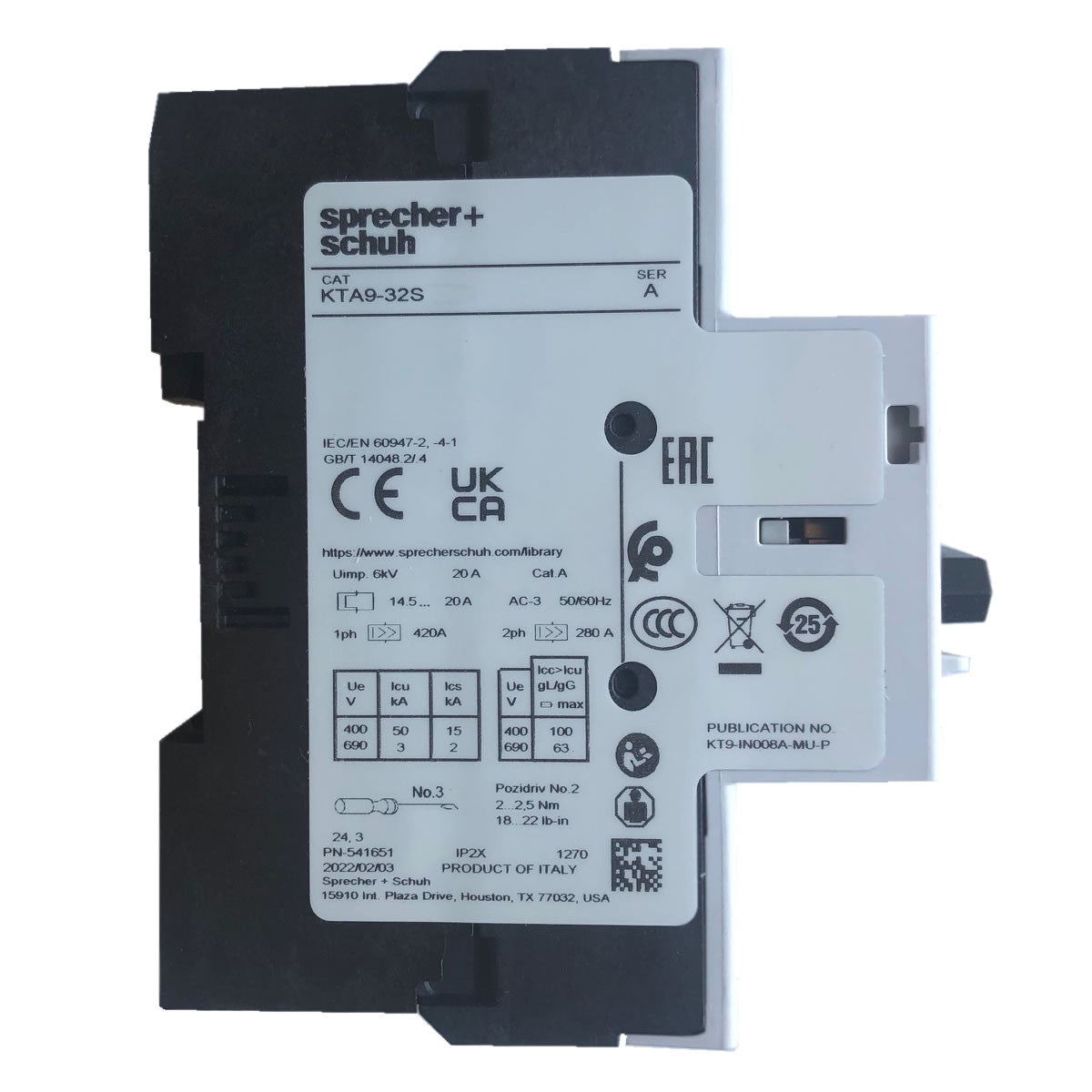

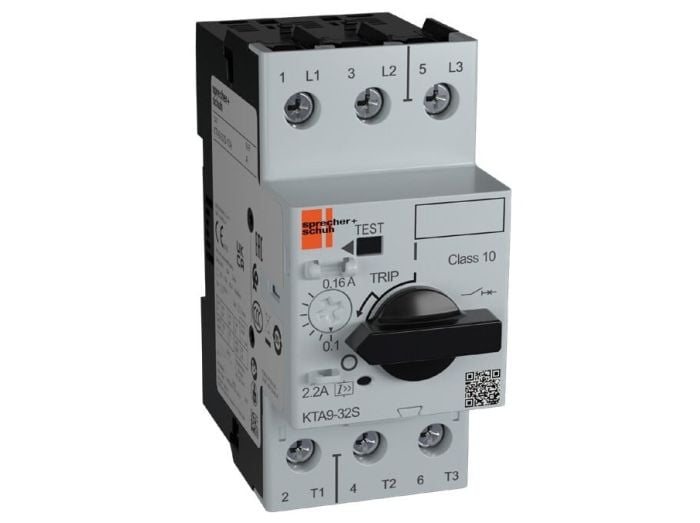

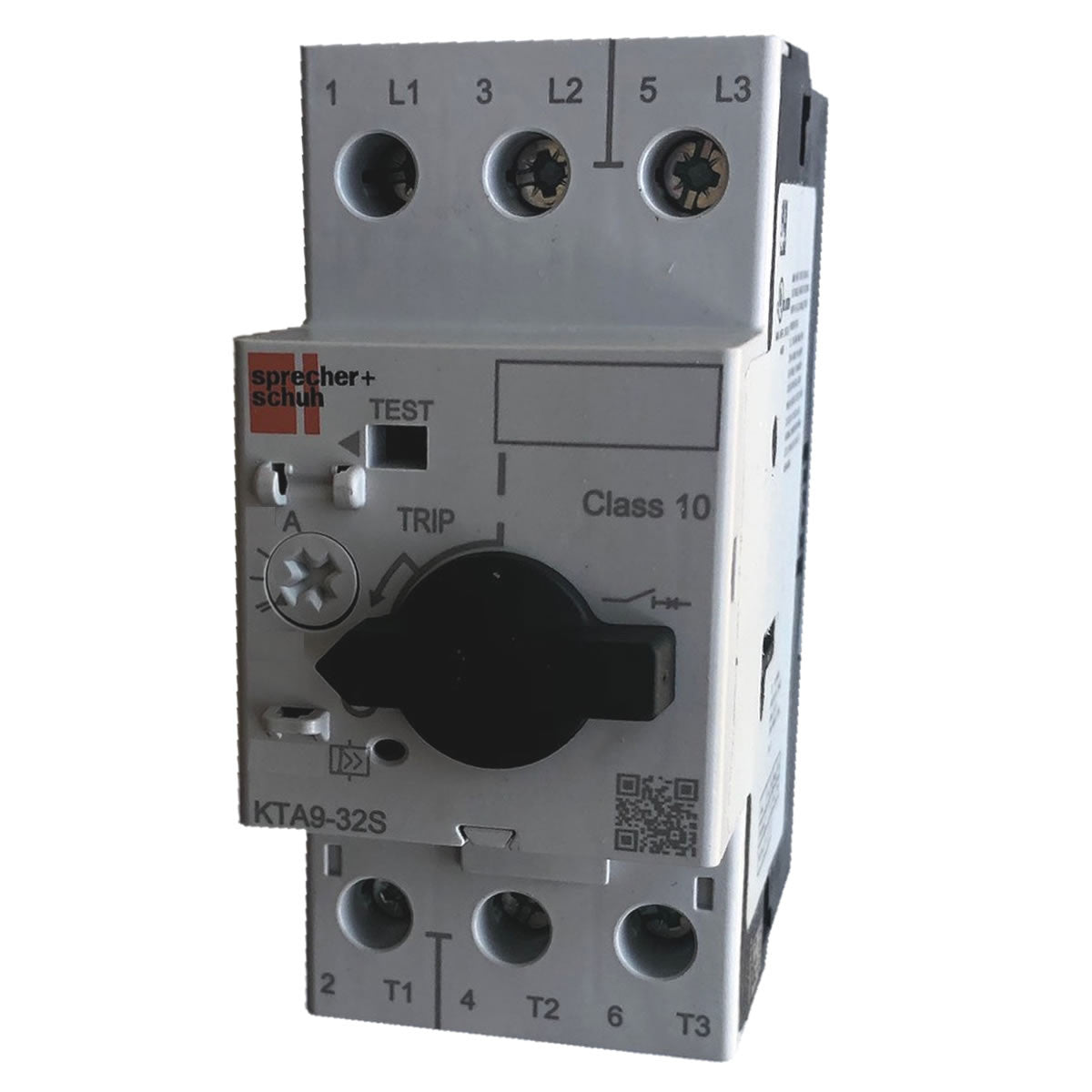

Sprecher & Schuh KTA9-32S-1.6A Adjustable Phase-Loss Motor Protector 1.6A

Product Description

The SPRECHER & SCHUH KTA9-32S-1.6A motor protector is a reliable device designed to safeguard electrical motors from potential damage. It features adjustable AMP ranges from 1 to 1.6 AMPS. Engineered with advanced technology, the KTA9-32S offers overload and short-circuit protection. Its user-friendly manual control allows for easy adjustments, ensuring seamless integration into your motor control systems.

• Adjustable AMP ranges from 1 to 1.6 AMPS
• Current limiting short circuit protection
• Screw terminals

Product Highlights

The Sprecher + Schuh KTA9 series manual motor protector ensures optimal performance and longevity for your industrial machinery. It has a compact design and robust construction.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KTA9-32S-1.6A

Technical Specifications

• Current Rating: 1.6 A
• FLA Adjustment Range: 1-1.6
• Phase: 3
• Poles: 3
• Trip Class: Class 10
• Auxiliary Contact: None
• Enclosure: Enclosed
• Operator: Rotary
• Pilot Light: No
• Protection Rating: IP66
• NEMA Rating: NEMA 12, NEMA 4, NEMA 4X
• Approvals: CCC, CE, CSA, cULus, IEC, UL
• Comments: KTA9-32S Standard Interrupting Capacity
• Manufacturer Part Number: KTA9-32S-1.6A-VJ
• Manufacturer: Sprecher & Schuh
• Product Series: KTA9
• Family Series: Sprecher + Schuh Manual Motor Protectors, KTA9 Series
• Description: MAN MTR CTRL 32S 1.6A M4/4X/12
• Series: KTA9 Series
• All - Voltage: 460/480VAC
• Trip Curve: Magnetic Trip
• Amp Rating: 1.6 Amp
• Short Circuit Capacity: 65kA
• Circuit Breaker Type: Manual Motor Protector (MMP)
