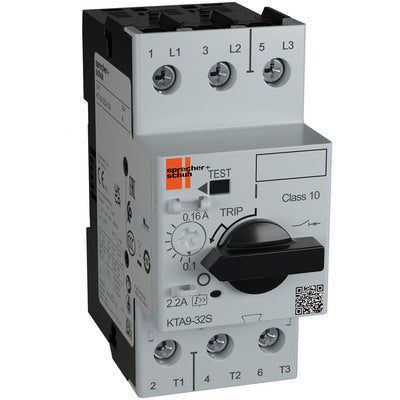

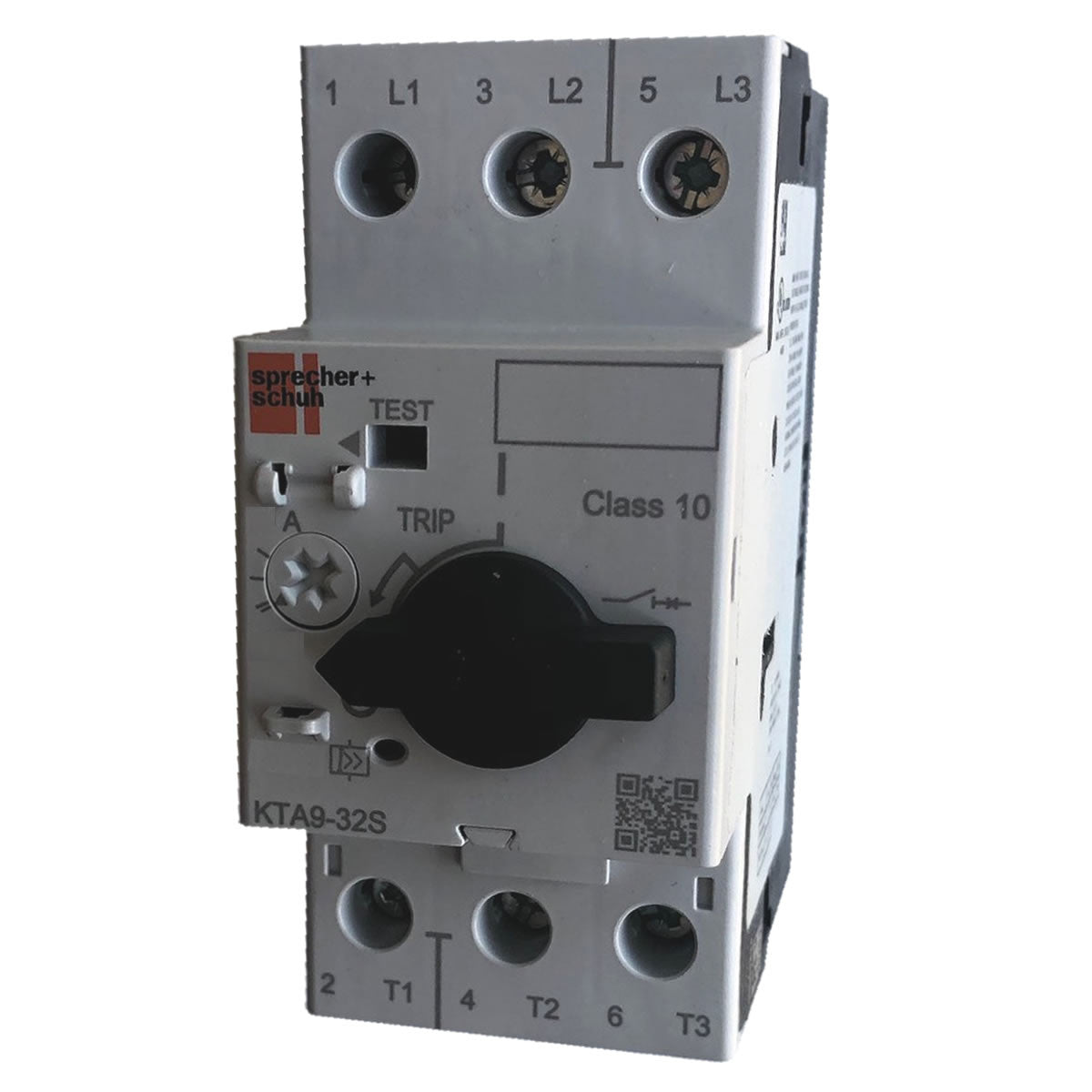

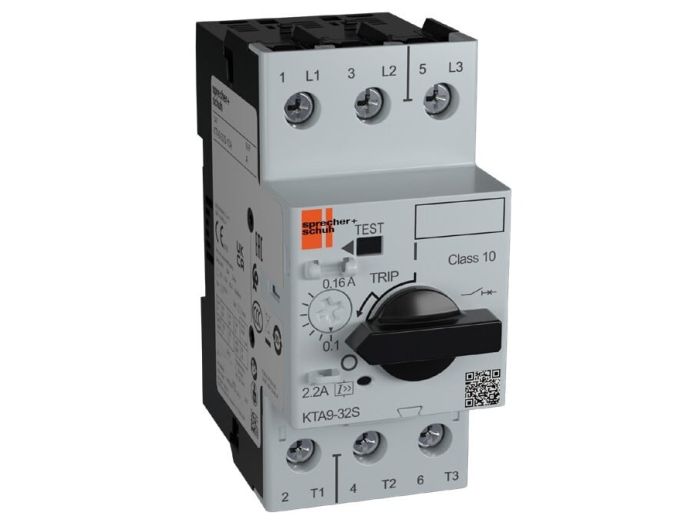

Sprecher & Schuh KTA9-32S-0.16A Motor Circuit Controller 0.16A

Product Description

The SPRECHER & SCHUH KTA9-32S-0.16A Motor Circuit Controller has adjustable AMP ranges from 0.10 to 0.16 AMPS. Each manual motor protector has current limiting short circuit protection and a rotary ON/OFF handle. It features Class 10 tripping characteristic and can be mounted on standard 35MM DIN rail.

• Overload protection
• Short-circuit protection
• User-friendly manual control

Product Highlights

The KTA9 series manual motor protector is a reliable device designed to safeguard electrical motors from potential damage, ensuring optimal performance and longevity for industrial machinery.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: KTA9-32S-0.16A

Technical Specifications

• Manufacturer Part Number: KTA9-32S-0.16A-EY-BD
• Manufacturer: Sprecher + Schuh
• Product Series: KTA9
• Family Series: Sprecher + Schuh Manual Motor Protectors, KTA9 Series
• Description: XPRF MAN CTRL 32S 0.16A M7/9
• Current Rating: 0.16 A
• FLA Adjustment Range: 0.1-0.16
• Phase: 3
• Poles: 3
• Trip Class: Class 10
• Auxiliary Contact: None
• Enclosure: Enclosed
• Operator: Rotary
• Pilot Light: No
• Protection Rating: IP2X
• Approvals: CCC, CE, CSA, cULus, IEC, UL
• Comments: KTA9-32S Standard Interrupting Capacity
• Primary brand: Sprecher+Schuh
• Order code / Manufacturer SKU: KTA9-32S-0.16A
• Manufacturer product status: Commercialized
• Manufacturer description: 0.16A Motor Protection Circui
