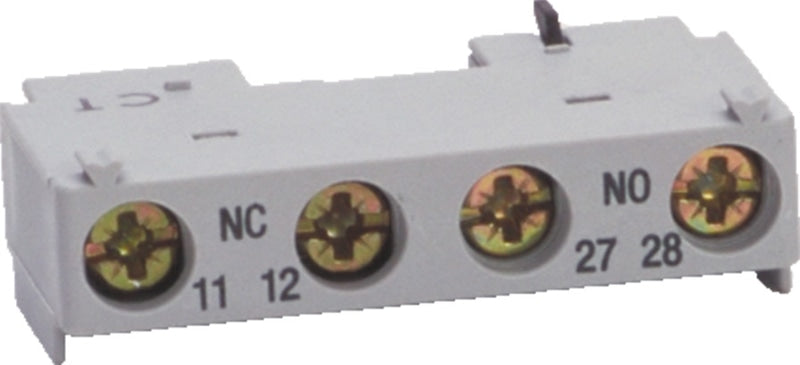

Sprecher + Schuh KT9-PEF1-S10N10 KT9 Trip Contact

Product Description

The Sprecher + Schuh KT9-PEF1-S10N10 KT9 series of Motor Circuit Controllers are versatile and technologically advanced control products. These devices can be used in a variety of control schemes that reduce panel space, simplify installation and eliminate the need for more expensive equipment. Indicates tripping of device and requires no additional space.

• Front Mount 2 NO Aux Trip Contact
• Current-limiting short circuit protection
• Class 10 thermal overload protection

Product Highlights

The KT9-PEF1-S10N10 is a 2-pole front-mounted trip contact that indicates tripping of device and requires no additional space.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: KT9-PEF1-S10N10
• Country of Origin: US

Technical Specifications

• SKU: SPRKT9PEF1S10N10
• Series: KT9 Series
• Alternate Names: KT9PEF1S10N10
• Family Series: Sprecher + Schuh Circuit Breakers, KT9 Series
• Product Series: KT9
• Manufacturer: Sprecher + Schuh
• Manufacturer Part Number: KT9-PEF1-S10N10
• Description: Front Mount 2 NO Aux Trip Cont
• Accessory Type: Trip Contact
• For Use With: KTU9, KT_9-32S, KT_9-40H
• Current Rating: 4 A
• Output Current: 4 A
• Max Voltage: 250 VAC
• Approvals: CCC, CE, cULus
• Net Weight: 0.03 lbs
• Gross Weight: 0.05 lbs
• Brand: Sprecher + Schuh
• Mounting Style: Front Mount
• Number of Poles: 2
