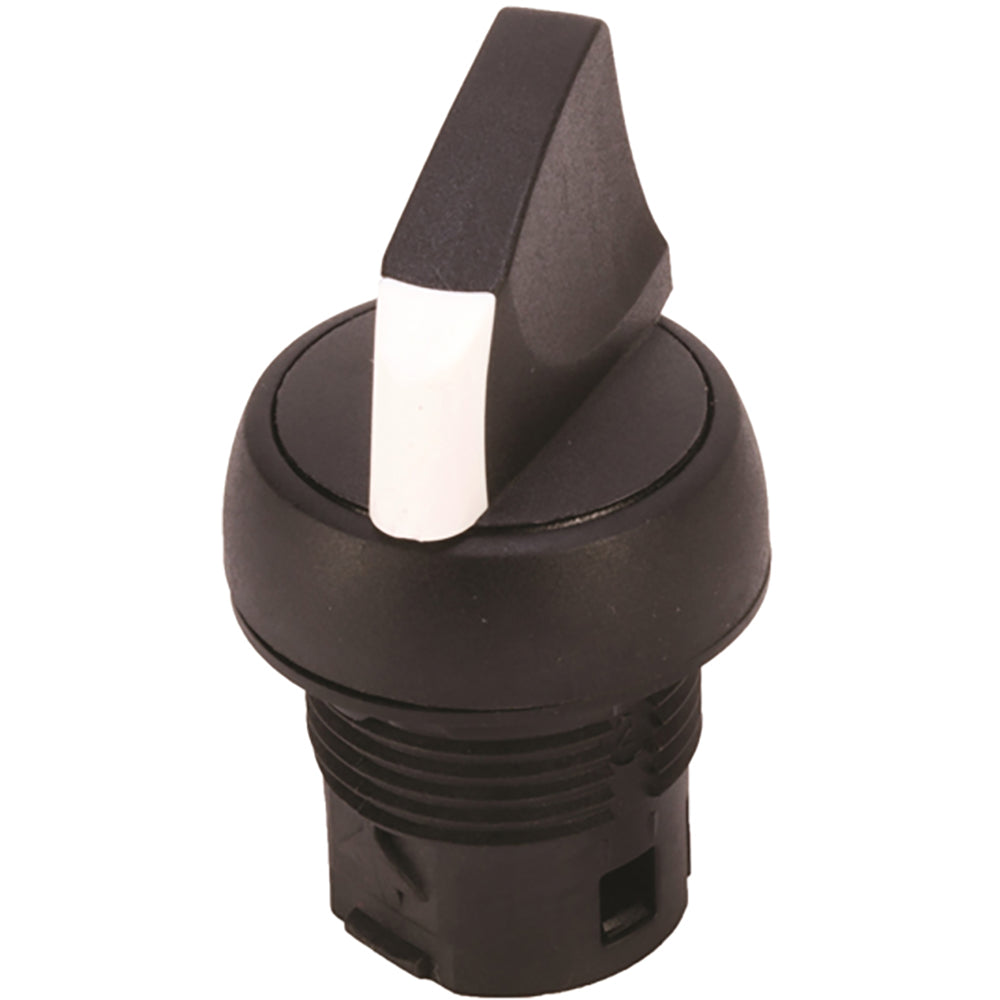

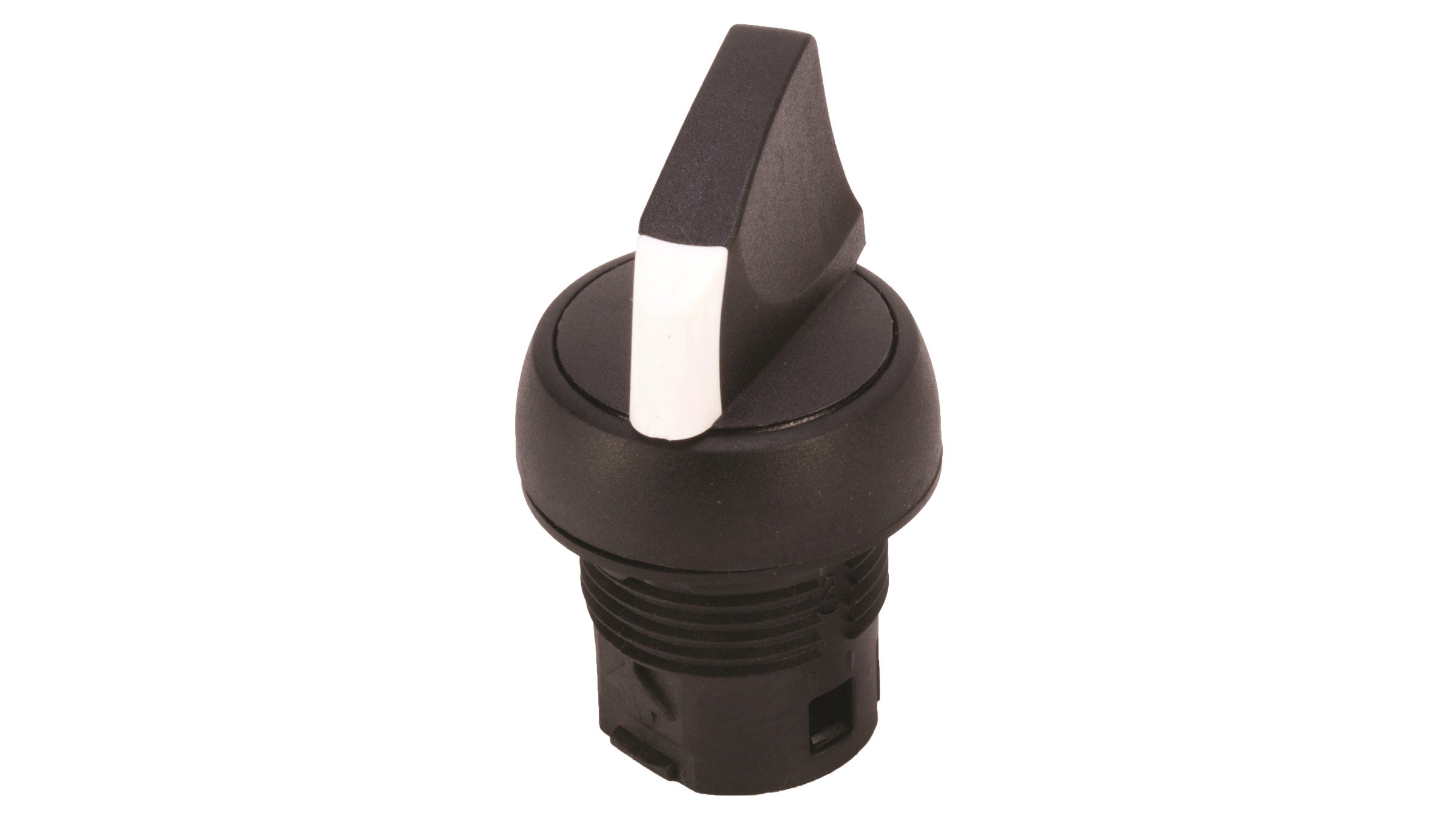

Sprecher & Schuh D7P-SM32 Selector Switch Operator Non-Illuminated Plastic Latch 3-Position Maintained (22mm)

Product Description

Sprecher & Schuh D7P-SM32 is a 22 mm panel-mount selector switch operator designed for use as the operator portion of a selector switch. The non-illuminated plastic latch provides a 3-position maintained action and is supplied as an operator-only component (contacts not included). The unit carries environmental ratings UL Type 4/4X/13 and IP66 for protection in corrosive or washdown environments.

• 22 mm selector operator for panel mounting with plastic front bezel
• Non-illuminated plastic latch, 3-position maintained operator (operator only; contacts not included)
• Environmental ratings UL Type 4/4X/13 and IP66 for corrosion and washdown protection

Product Highlights

22 mm panel-mount selector operator; non-illuminated, 3-position maintained; operator only; UL Type 4/4X/13 and IP66 rated.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: D7P-SM32
• Country of Origin: China

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: D7P-SM32
• Product Series: D7P
• Description: 22 mm selector switch operator, non-illuminated, plastic latch, 3-position maintained, operator only
• Type: Selector switch operator
• Operator Type: 3-position maintained
• Illumination: Non-illuminated
• Bezel Material: Plastic
• Panel Hole Diameter: 22 mm
• Contacts: Operator only (contacts not included)
• Environmental Rating: UL Type 4/4X/13; IP66
• Approvals / Certifications: CCC, CE, CSA, UL, UR
• RoHS Compliance: Compliant
• Country of Origin: China
• Net Weight: 0.045 lbs
• Catalog Description: D7P 22mm Selector Switch Non-Illuminated Plastic Latch 3 Position Maintained Operator Only
