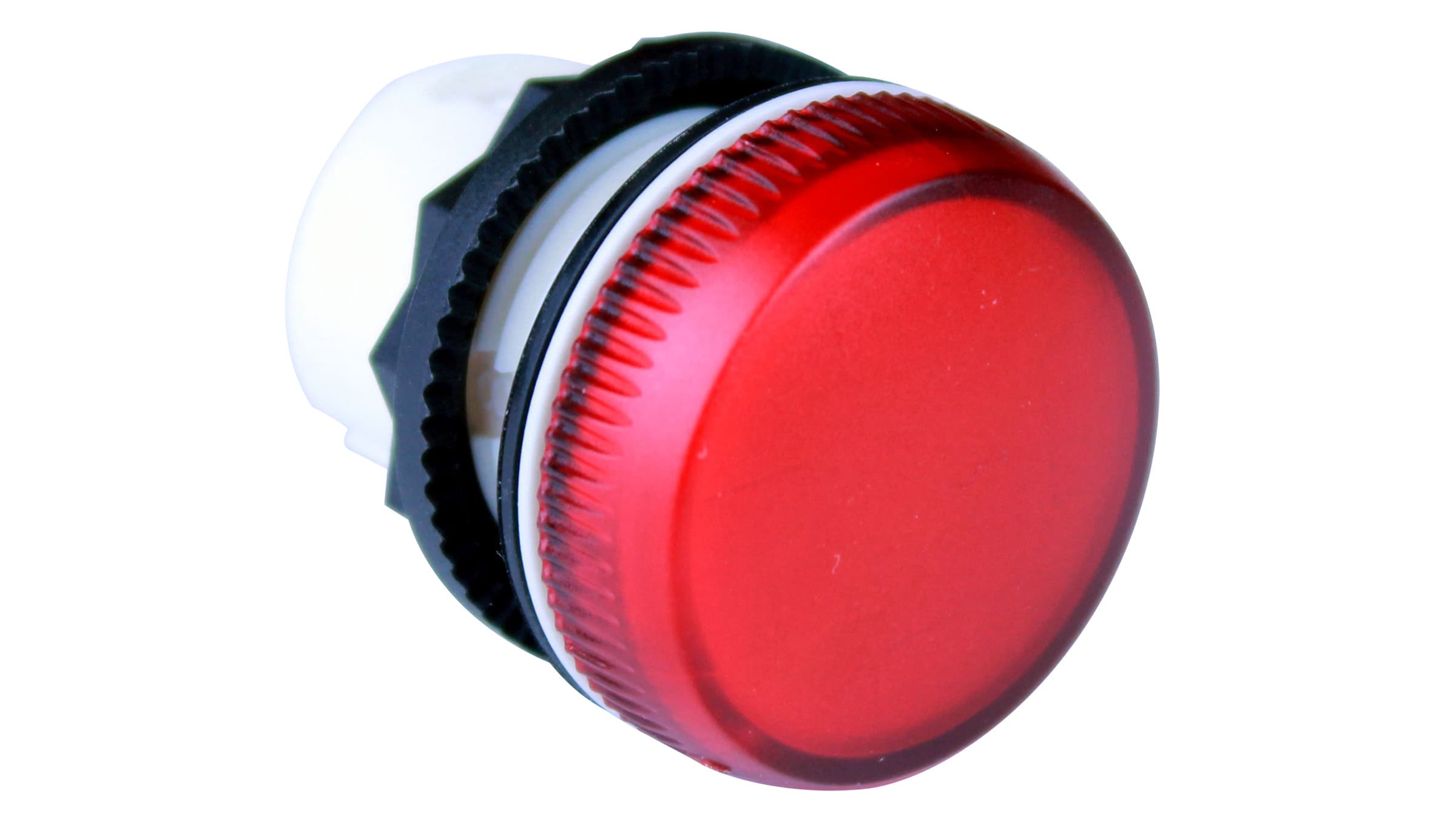

Sprecher & Schuh D7P-P4PN3R Indicator Light 24V AC/DC

Product Description

The Sprecher + Schuh D7P-P4PN3R is a robust pilot light from the D7P series, designed for maximum flexibility and a wide range of applications. This 22mm indicator light features a plastic operator with a captive black plastic front bezel, constructed of high-grade thermoplastics for corrosion resistance in harsh environments. It uses a 24V LED for clear indication.

• Modular design for less inventory and more choices
• Quick, easy installation with tool-less mounting latch
• Environmental ratings: IP66, metal Type 4/13, and plastic Type 4/4X/13

Product Highlights

This Sprecher+Schuh pilot light offers easy installation, long life, and corrosion resistance, suitable for demanding environments.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: D7P-P4PN3R
• Country of Origin: China

Technical Specifications

• Manufacturer Part Number: D7P-P4PN3R
• Manufacturer: Sprecher + Schuh
• Product Series: D7P
• Family Series: Sprecher + Schuh Pilot Lights, D7P Series
• Description: IND LIGHT RED 24V LED
• Push-to-Test: No
• Mounting: 24.1 mm
• Lamp Type: LED
• Lens/Button Shape: Dome
• Lens Color: Red
• Bezel: Black Plastic
• Nominal Lamp Voltage: 24 VAC, 24 VDC
• Protection Rating: IP66
• Terminal Type: Screw
• NEMA Rating: NEMA 13, NEMA 4, NEMA 4X
• Approvals: UL, CSA, CCC, CE
• Brand: Sprecher & Schuh
• Type: indicating light
• Model: D7P-P4PN3R
• Function: Indicator Light
• Contacts: Operator Only
• Panel hole diameter: 22.5 mm
• Bezel Type: Plastic
• Operator Type: Diffuser Lens
• Illumination Type: LED
• Power Module: 24V AC/DC Red
• Series: D7P
• Category: Controls & Indicators
• Subcategory: Indicator/Display
