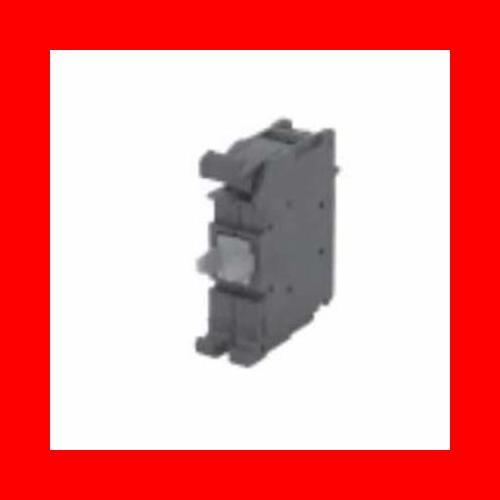

Sprecher & Schuh D7-X10 Contact Block 10 A, 1NO, 690 V, Auxiliary, Front Mount Screw Terminal, Replaces 800F-X10

Product Description

The SPRECHER & SCHUH D7-X10 is a 10 A contact block with 1NO configuration, rated at 690 V. This auxiliary contact block features a front mount screw terminal. It is suitable for various industrial applications requiring reliable switching. It can be used as a replacement for 800F-X10.

• 10 A contact block
• Rated for up to 690 V
• Features a front mount screw terminal

Product Highlights

Auxiliary contact block with screw terminal for industrial applications.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: D7-X10

Technical Specifications

• Contact Rating: 6 A at 110 to 120 V AC, 3 A at 240 V AC, 0.55 A at 125 V AC
• NEMA Rating: NEMA ICS-5
• Series: D7 Series
• Type: Heavy Duty Oil Tight
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39122216
• Standards: RoHS Compliant|UL 508|EN 60947-1|EN 60947-5-1|EN 60947-5-5|EN 418|CSA Certified|CCC Compliant|CE Marked
