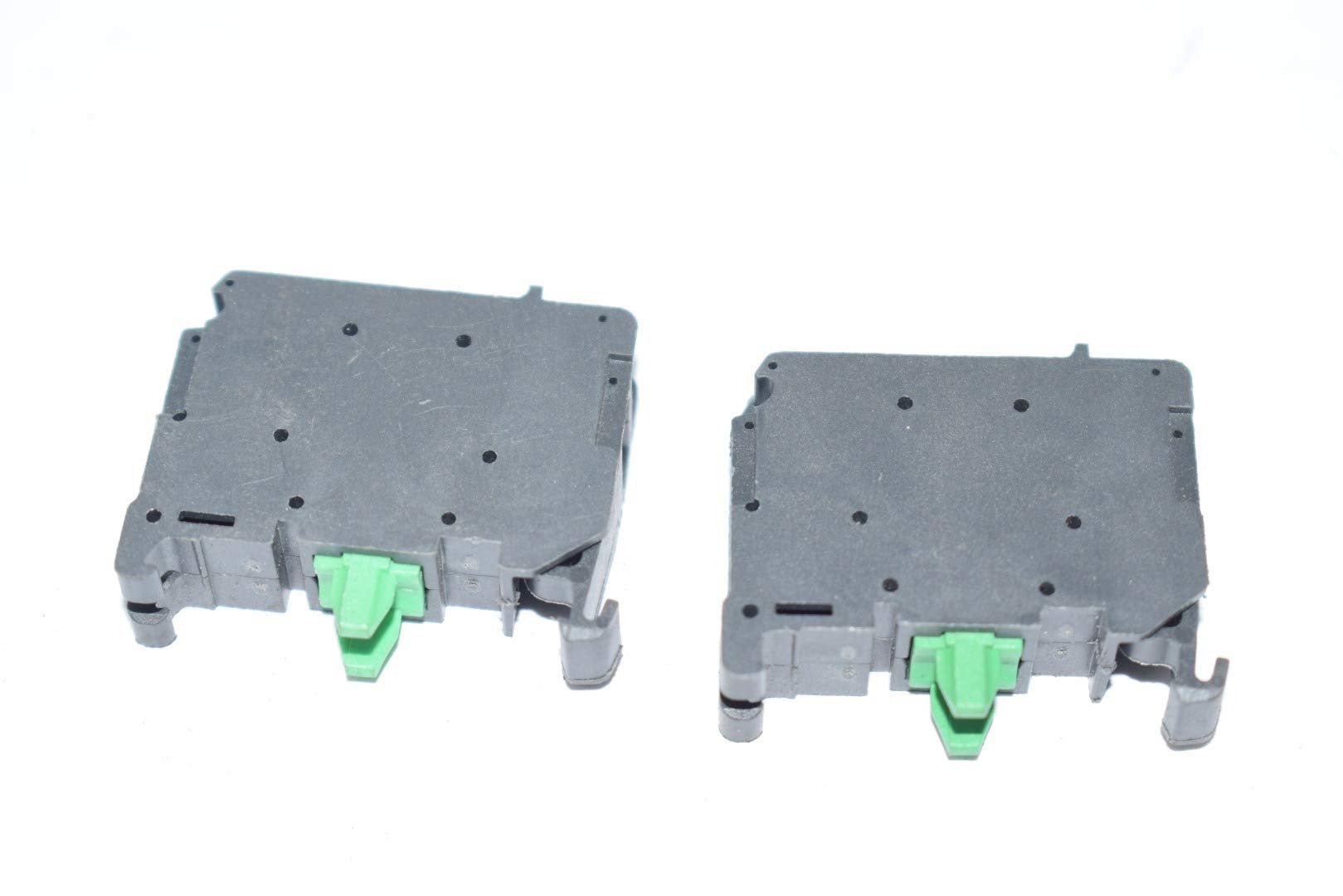

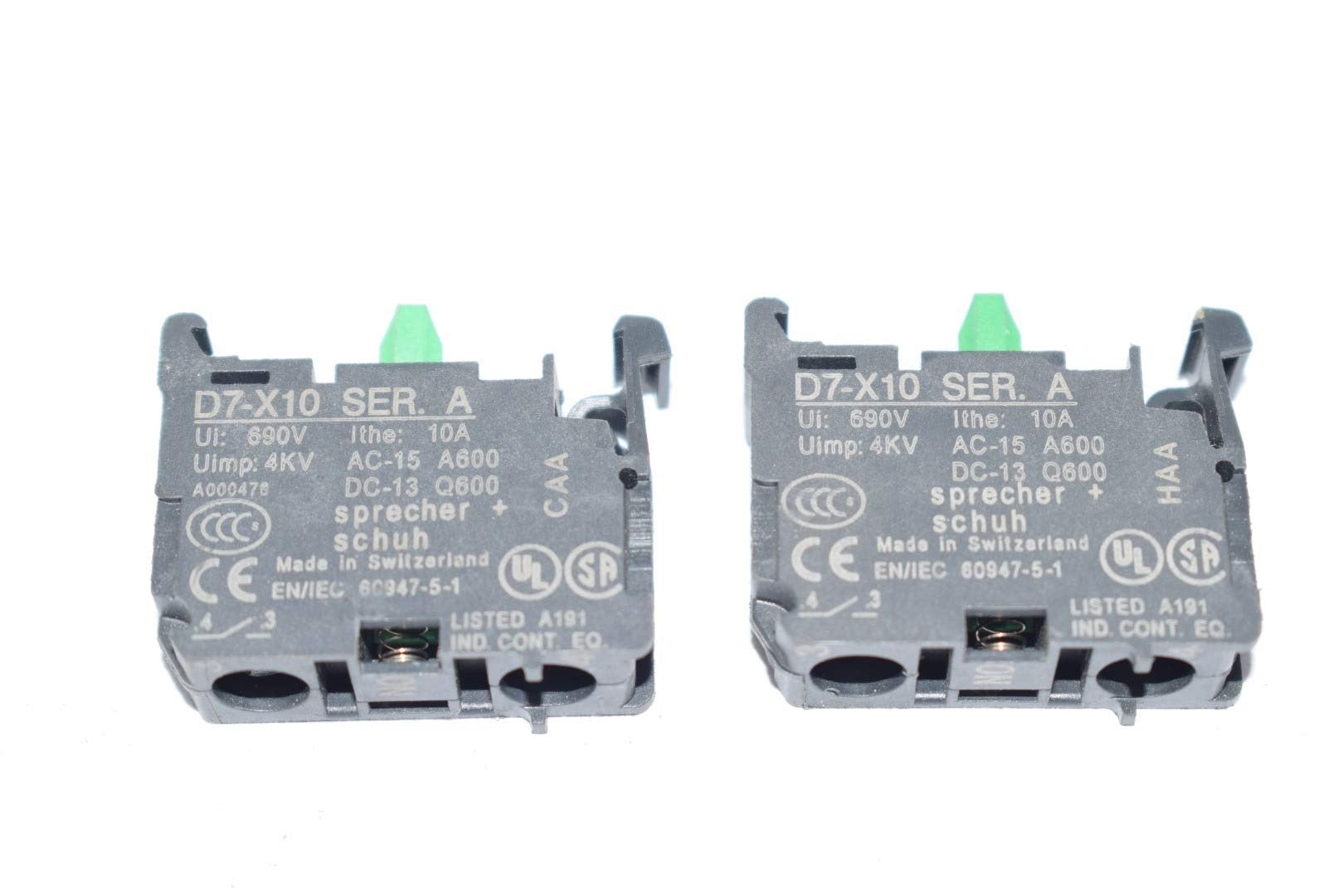

Sprecher + Schuh D7-X10 Auxiliary Contact Block 10A 1NO 690V

Product Description

The SPRECHER + SCHUH D7-X10 is a front-mount auxiliary contact block rated for 10 amps and 690 volts, configured with one normally open (1NO) contact. Constructed from metal, it connects via screw terminals and mounts to the front of compatible contactors and motor starters. This type of add-on contact block is used to expand the signaling or control circuit capacity of a starter assembly without replacing the main device. Electricians and industrial maintenance technicians install this block as part of motor control center (MCC) builds, control panel assemblies, and field service upgrades.

The D7-X10 is suited for both light industrial and commercial control applications where auxiliary signaling, interlocking, or status indication is required. It is designed for front-mount installation, making it accessible during panel servicing without full disassembly. The screw terminal connection method is compatible with standard field wiring practices and does not require specialty tooling beyond common hand tools.

Key Features

• 1NO contact configuration for normally open control circuit signaling
• 10-amp continuous current rating
• 690-volt rating suitable for industrial control circuit voltages
• Front-mount design for accessible installation and field servicing
• Screw terminal connections for reliable, tool-standard field wiring
• Metal construction for durability in industrial environments

Compatibility

Serves as a direct replacement for the Allen-Bradley 800F-X10 auxiliary contact block. Designed for front-mount installation on compatible SPRECHER + SCHUH contactors and motor starters.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lockout/tagout the control panel before installing or removing contact blocks. Verify that screw terminal torque meets the panel manufacturer's wiring specification and that wire gauge is appropriate for the 10-amp rating. Do not install on energized equipment.
