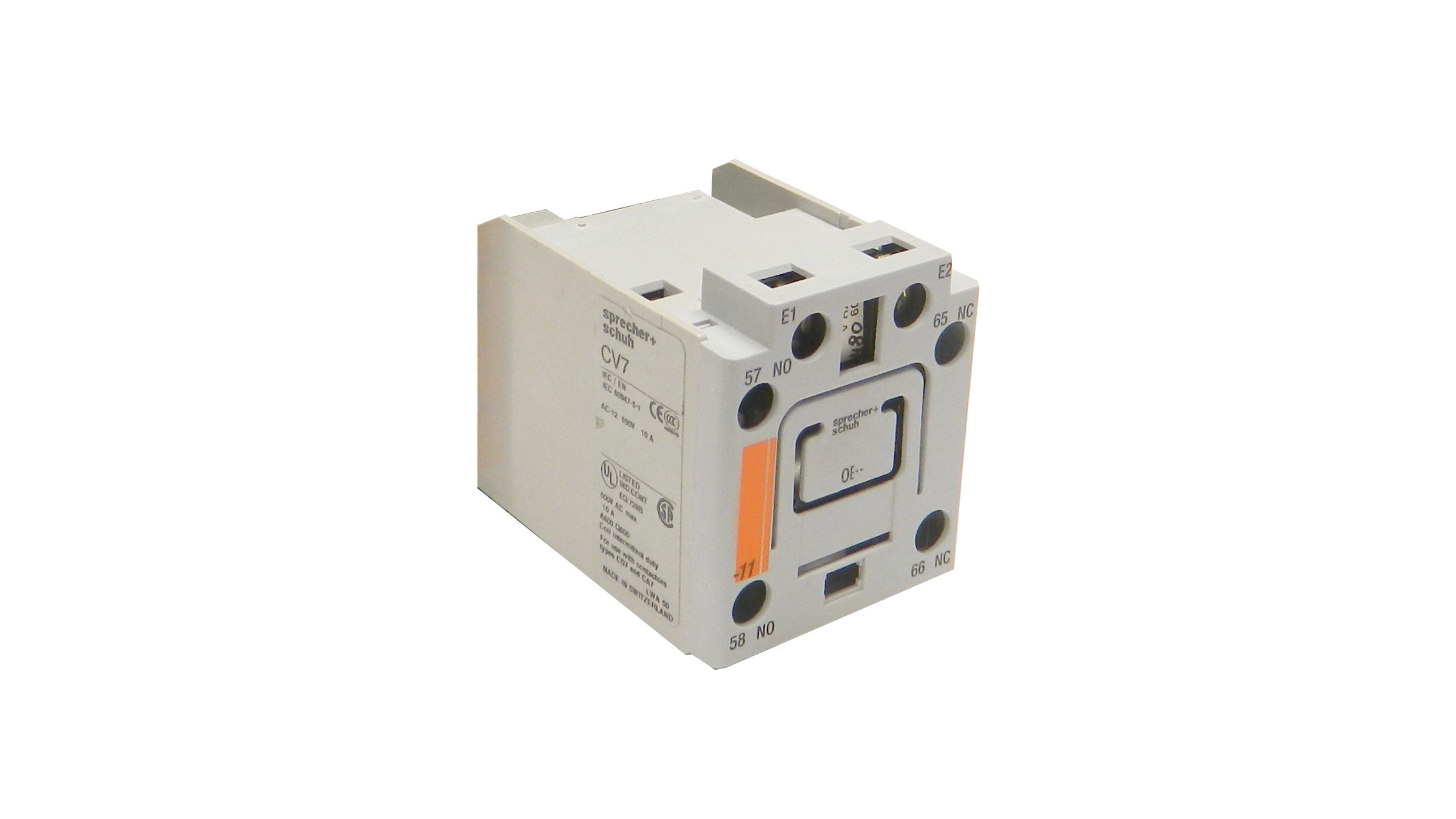

Sprecher & Schuh CV7-11-120 CA7 mechanical latch 110/120 VAC (front mount)

Product Description

Sprecher & Schuh CV7-11-120 is a CA7 mechanical latch front-mount electrical contact block that provides one normally open and one normally closed auxiliary contact. It is rated for 110 VAC at 50 Hz and 120 VAC at 60 Hz, and is suitable as an accessory for CA7 contactors and CS7 control relays. The unit supports front-mount installation and includes electrical and manual release; rated 10 A and up to 600 V maximum.

• Contact configuration: 1 normally open (1NO) and 1 normally closed (1NC).
• Voltage rating: 110 VAC @ 50 Hz and 120 VAC @ 60 Hz; rated current 10 A, maximum 600 V.
• Front-mount CA7 mechanical latch with electrical and manual release; compatible with CA7 contactors and CS7 control relays.

Product Highlights

Front-mount mechanical latch contact block, 1NO/1NC, 110/120 VAC, electrical/manual release.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CV7-11-120

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: CV7-11-120
• Type: CA7 mechanical latch / mechanical latch accessory
• Function: Electrical contact block / latch attachment
• Contact Configuration: 1 NO, 1 NC
• Mounting Type: Front mount
• Coil Voltage / Rated Voltage: 110 VAC @ 50 Hz; 120 VAC @ 60 Hz
• Frequency: 50 Hz / 60 Hz
• Rated Current: 10 A
• Maximum Voltage: 600 V max
• Suitable For: CA7 contactors; CS7 control relay
• Features: Electrical and manual release
• Accessory Type: General accessory for control relay
• SKU: 2325229
• UPC: 00886739486885
• UNSPSC: 39121522
