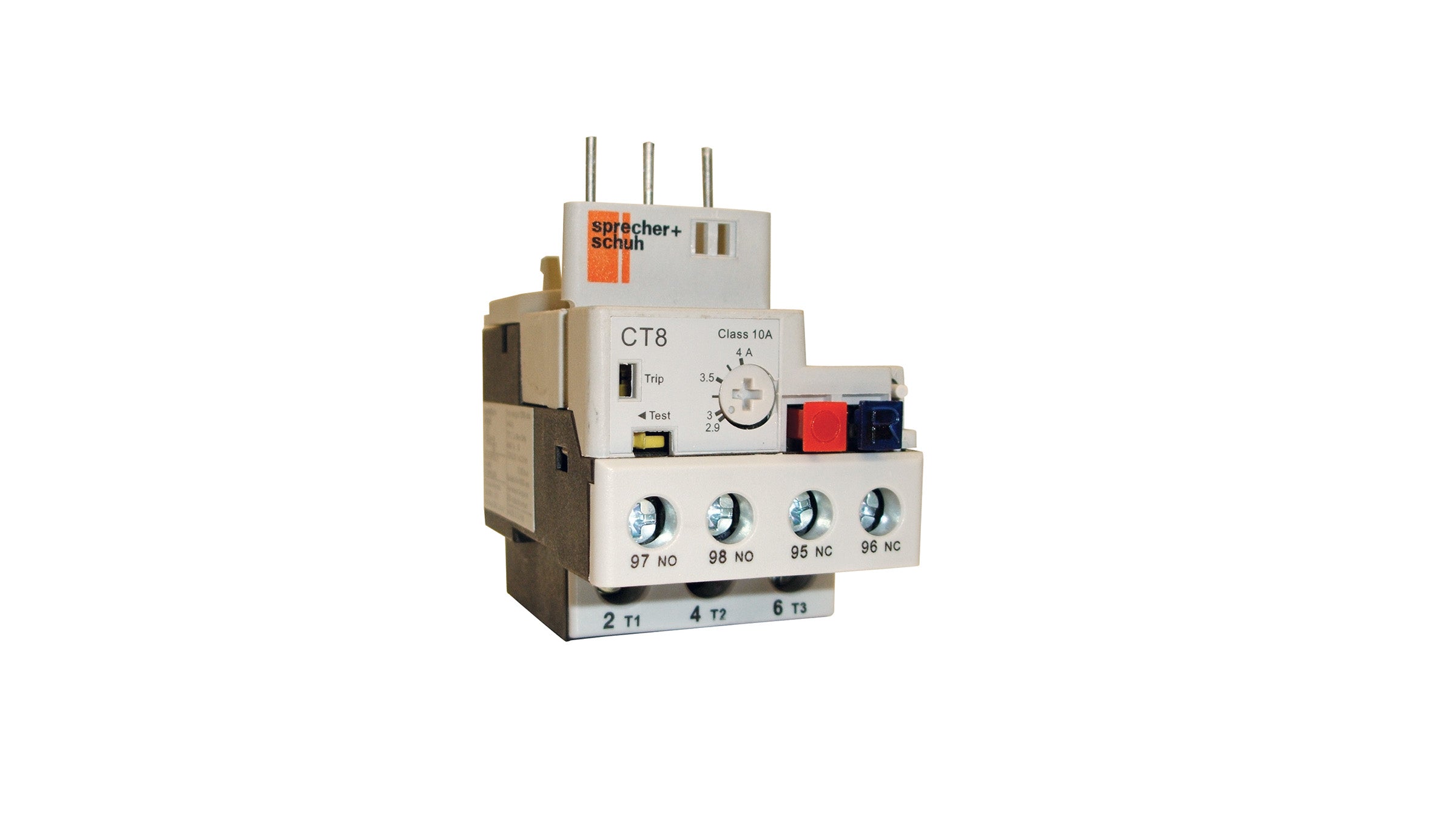

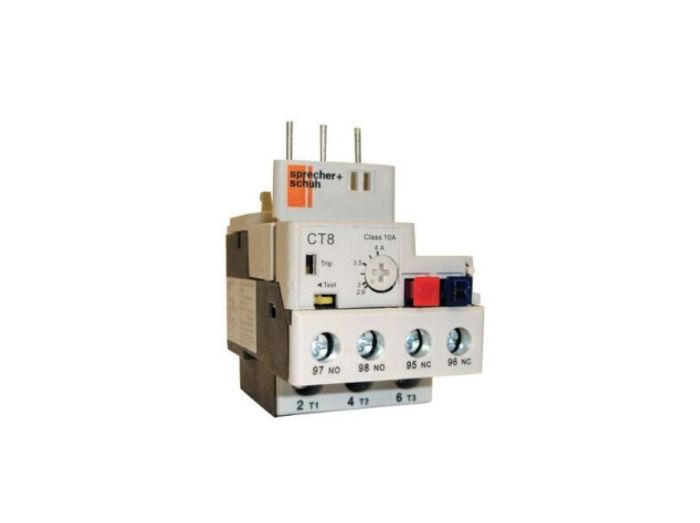

Sprecher + Schuh CT8-A63 CT8 Miniature Thermal Bimetallic Overload Relay 0.45-0.63 A (Direct Mount for CA8-09 to CA8-12)

Product Description

The Sprecher + Schuh CT8-A63 is a CT8 series miniature thermal bimetallic overload relay with an adjustable overload current range of 0.45�0.63 A. It mounts directly to CA8-09 to CA8-12 contactors and supports 1- or 3-phase circuits. The unit provides selectable automatic or manual reset, trip class 10 protection, screw main-circuit connections, and a rated operating voltage up to 690 V for motor and general overload protection.

• Adjustable overload current range: 0.45�0.63 A; trip class 10.
• Direct mount for CA8-09 to CA8-12 contactors; suitable for 1- or 3-phase systems.
• Selectable automatic or push-button manual reset; screw connection for main circuit; rated to 690 V.

Product Highlights

Compact CT8 thermal overload relay, adjustable 0.45�0.63 A range, trip class 10, direct mount for CA8 series contactors.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CT8-A63

Technical Specifications

• Manufacturer: Sprecher + Schuh
• Manufacturer Part Number: CT8-A63
• Series: CT8
• Type: Miniature thermal bimetallic overload relay
• Adjustable Current Range: 0.45-0.63 A
• Trip Class: Class 10
• Phase: 1 or 3 phase
• Mounting: Direct mount for CA8-09 to CA8-12
• Reset Type: Auto or manual reset
• Max Rated Operating Voltage (Ue): 690 V
• Electrical Connection (Main Circuit): Screw connection
• Number of Auxiliary Contacts (NC): 1
• Number of Auxiliary Contacts (NO): 1
• Dimensions (H x W x D): 2.559 x 1.772 x 2.520 inches
• Weight: 0.31 lb
• Approvals: CE, cULus
• Category: Thermal overload relays
