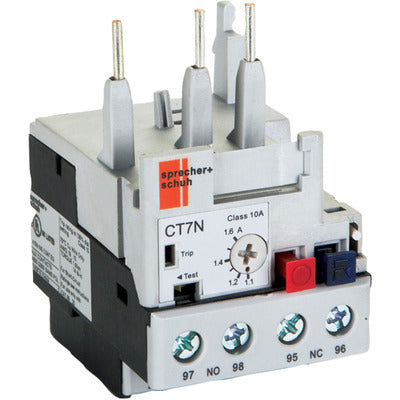

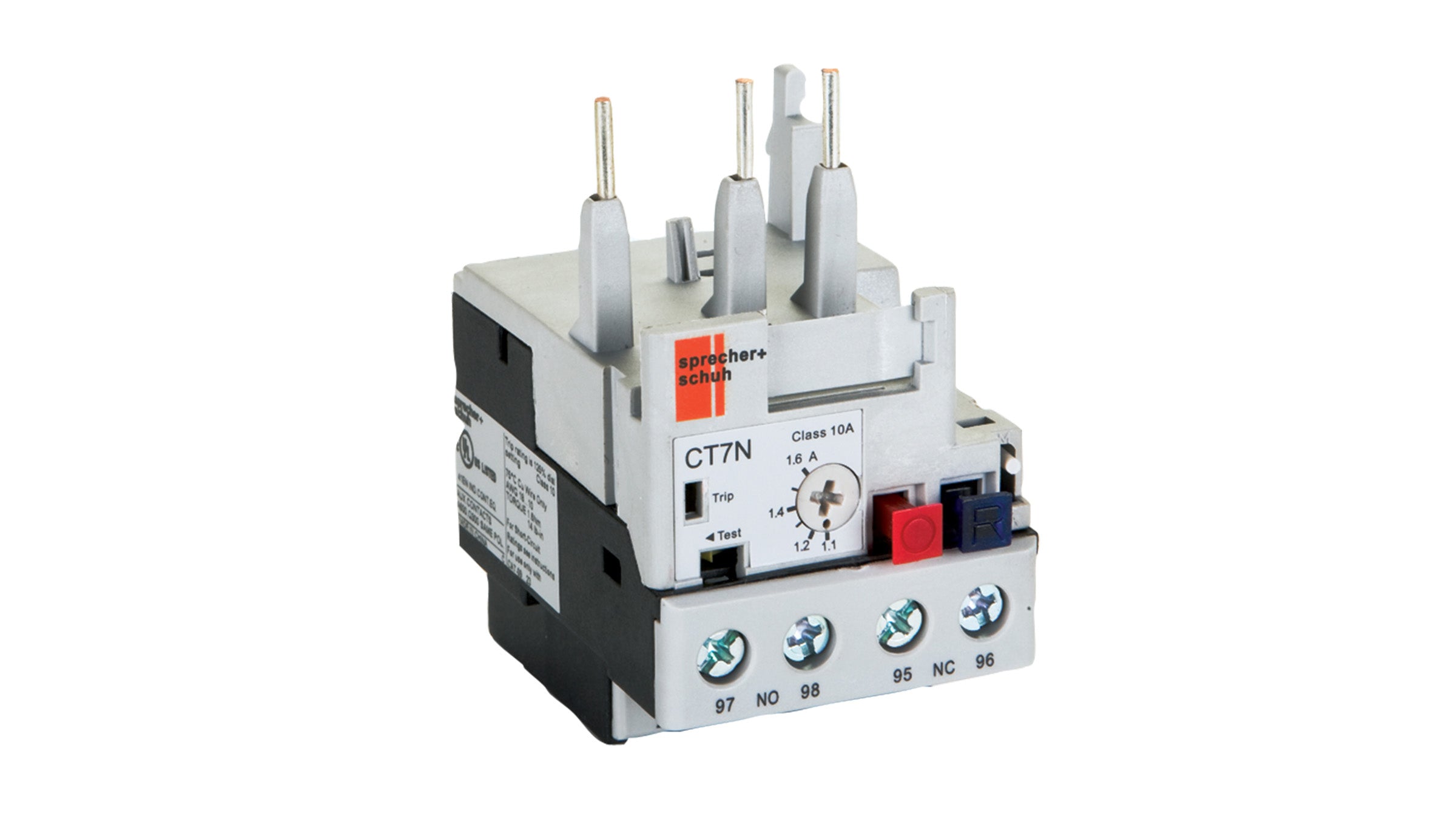

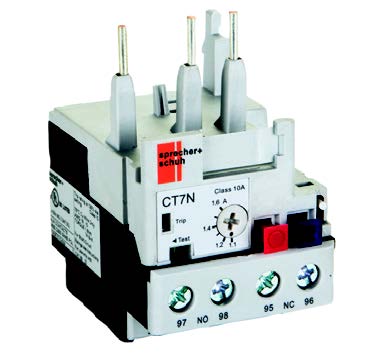

Sprecher + Schuh CT7N-23-C16 Overload Relay 16 Amps

Product Description

The Sprecher & Schuh CT7N-23-C16 is a component with a current rating of 16 Amps that operates automatically. It is a bimetallic thermal overload relay that is temperature compensated, ensuring the tripping characteristic remains constant from -20 to +60°C. It has both manual and automatic reset options.

• Current Rating: 16 Amps
• Automatic operation mode
• Ambient temperature compensated

Product Highlights

The Sprecher + Schuh CT7N-23-C16 is a bimetallic overload relay with a 16A current rating and automatic operation. It features temperature compensation and manual/automatic reset.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CT7N-23-C16
• Country of Origin: CH

Technical Specifications

• Current Rating: 16 Amps
• Operation Mode: Automatic
• Maximum Switching Current: 16 Amps
• Brand: Sprecher & Schuh
• Part Number #: CT7N-23-C16
• Series: CT7N
• Temperature Rating (Degrees F): -4 to 140 deg F
• Type: Bimetallic
• Manufacturer Name: Sprecher + Schuh
• Setting Range Amps: 11.3 - 16
• For Use With: CA7-12, CA7-16, CA7-23
• Class: 10
