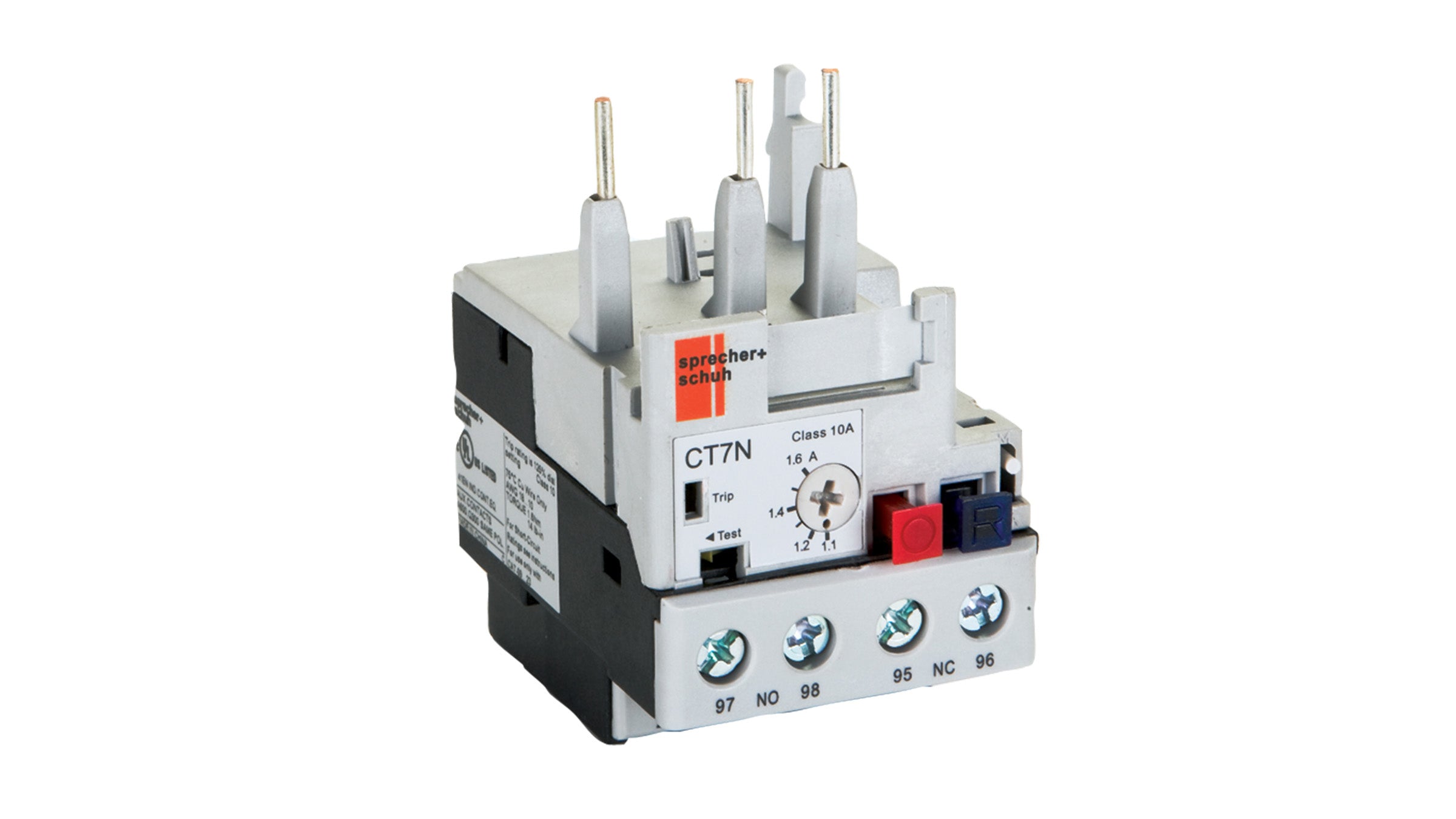

Sprecher & Schuh CT7N-23-B48 Overload Relay 4.8 A (Pack 1) CT7N-23-B48 A

Product Description

Sprecher & Schuh CT7N-23-B48 is a bimetallic (thermal) overload relay that provides motor overload protection with an adjustable current range of 3.5–4.8 A and a rated current of 4.8 A. It features a Class 10 trip characteristic and is designed for direct mounting on CA7-9..23 contactors for CT7N series integration. Operating temperature is −4 to 60 °F and the relay carries CE and cULus approvals.

• Bimetallic thermal overload relay with adjustable current range 3.5–4.8 A; rated 4.8 A
• Direct mount compatibility with CA7-9..23 contactors (CT7N series)
• Class 10 trip characteristic; approvals: CE, cULus; operating temperature −4 to 60 °F

Product Highlights

Motor overload protection; direct-mount for CA7 contactors; adjustable 3.5–4.8 A range

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CT7N-23-B48
• Country of Origin: China

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: CT7N-23-B48
• Alternate Part Number: CT7N-23-B48 A
• Series: CT7N
• Type: Bimetallic (thermal) overload relay
• Rated Current: 4.8 A
• Adjustable Current Range: 3.5–4.8 A
• Trip Class: Class 10
• For Use With: CA7-9..23 contactors (direct mount)
• Approvals: CE, cULus
• Operating Temperature: -4 to 60 °F
• Net Weight: 0.145 kg (0.31 lb)
• Package Quantity: 1
• Country of Origin: China
• UPC: 10662074718730
• UNSPSC: 39122330
