Sprecher & Schuh CS7-31E-120 Control Relay 120V

Product Description

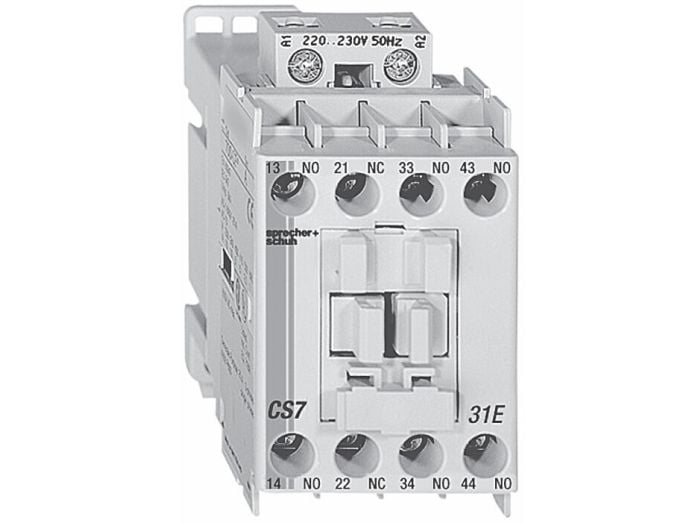

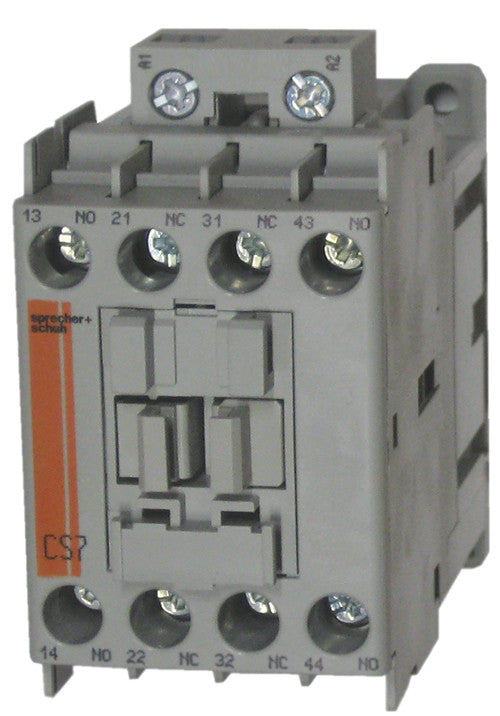

The SPRECHER & SCHUH CS7-31E-120 control relay is a 4-pole relay with 3 normally open (N.O.) and 1 normally closed (N.C.) power poles and a 110V 50Hz/120V 60Hz AC rated coil. Rated for 10 AMPS continuous duty, it can be mounted on a 35MM Din rail or screw-fixed to a panel. It shares a similar design with the CA7 contactor range.

• Rated for 10 AMPS continuous duty (25 AMP general purpose)
• 3 normally open (N.O.) and 1 normally closed (N.C.) power poles
• 110v50Hz/120v60Hz AC rated coil

Product Highlights

The CS7 series control relays are designed for heavy-duty industrial control applications where reliability and versatility are essential.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CS7-31E-120
• Country of Origin: United States

Technical Specifications

• Brand: Sprecher & Schuh
• Part Number #: CS7-31E-120
• SKU #: 358758
• Contact Rating: 3NO-1NC
• Series: CS7
• Manufacturer Name: Sprecher + Schuh
• Number of Poles: 4
• Coil (Control) Voltage: 110/120 volt AC
• Contacts: 3 N.O./1 N.C.
• AMP Rating: 10 AMPS
• Product Series: CS7
• Description: IEC Control Relay
• Nominal Voltage: 120 VAC
• Voltage: 120 VAC
• Contact Configuration: 3NO, 1NC
• Termination: Screw
• Mounting: Chassis
• Approvals: CE, cULus
• Part No: CS7-31E-120
• RoHS: Yes
• Manufacturer Part Number: CS7-31E-120
