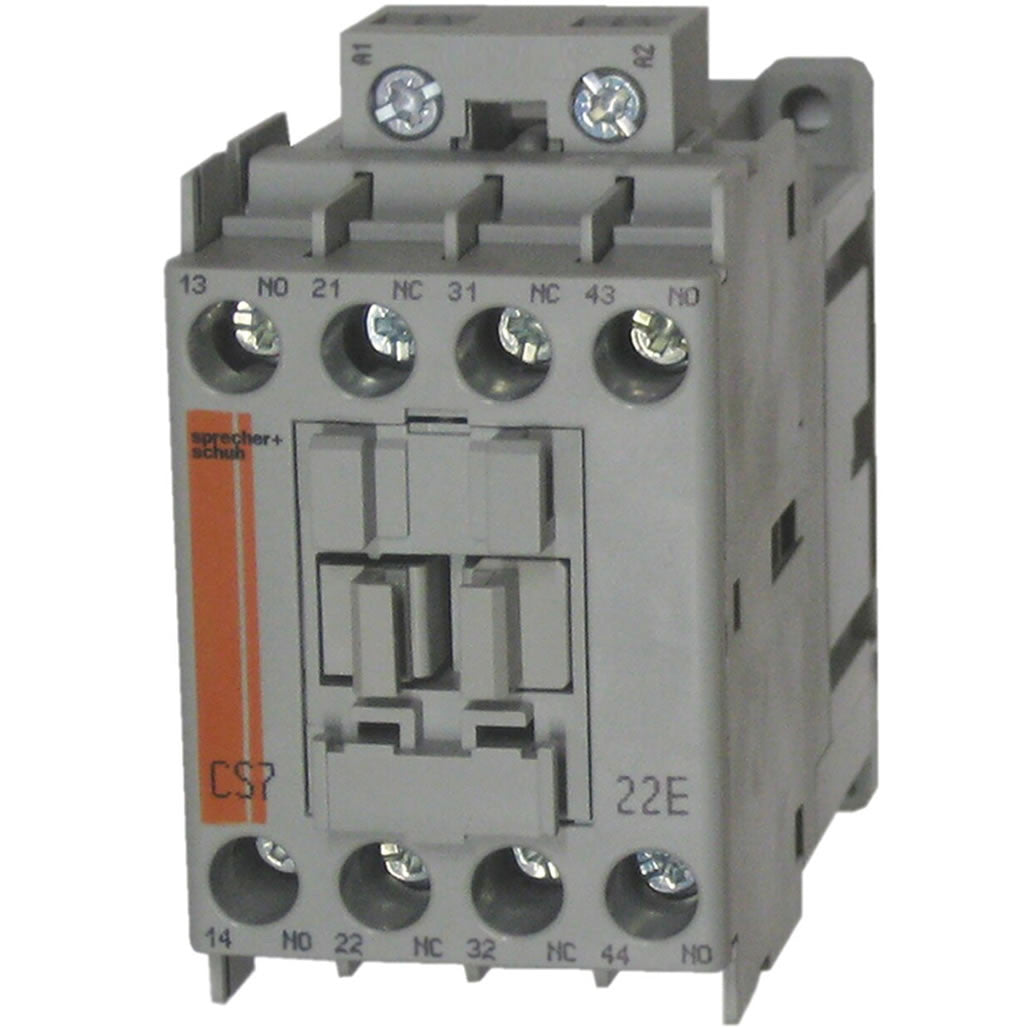

Sprecher & Schuh CS7-22E-120 Control Relay 110/120 volt AC

Product Description

The SPRECHER & SCHUH CS7-22E-120 industrial control relay is rated for 10 AMPS continuous duty (25 AMP general purpose), has 2 normally open (N.O.) and 2 normally closed (N.C.) power poles and comes with a 110V50Hz/120v60Hz AC rated coil. This 4 pole relay has screw terminals and can be mounted on standard 35MM Din rail or screw-fixed to the back of a panel.

• Rated for 10 AMPS continuous duty (25 AMP general purpose)
• 2 normally open (N.O.) and 2 normally closed (N.C.) power poles
• 110V50Hz/120v60Hz AC rated coil

Product Highlights

The CS7 control relays are perfect for fail-safe control circuits. An interlock contact design maintains minimum 0.3mm clearance and prevents the NC contact from reclosing if the NO contact is welded when in operation.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CS7-22E-120

Technical Specifications

• Number of Poles: 4
• Coil (Control) Voltage: 110/120 volt AC
• Contacts: 2 N.O./2 N.C.
• AMP Rating: 10 AMPS
• Manufacturer Part Number: CS7-22E-120
• Manufacturer: Sprecher + Schuh
• Family Series: Sprecher + Schuh Control Relays
• Description: IEC Control Relay
• Nominal Voltage: 120 VAC
• Voltage: 120 VAC
• Contact Configuration: 2NO, 2NC
• Termination: Screw
• Mounting: Chassis
• Approvals: CE, cULus
• Brand: Sprecher & Schuh
• Series: CS7
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39122231
