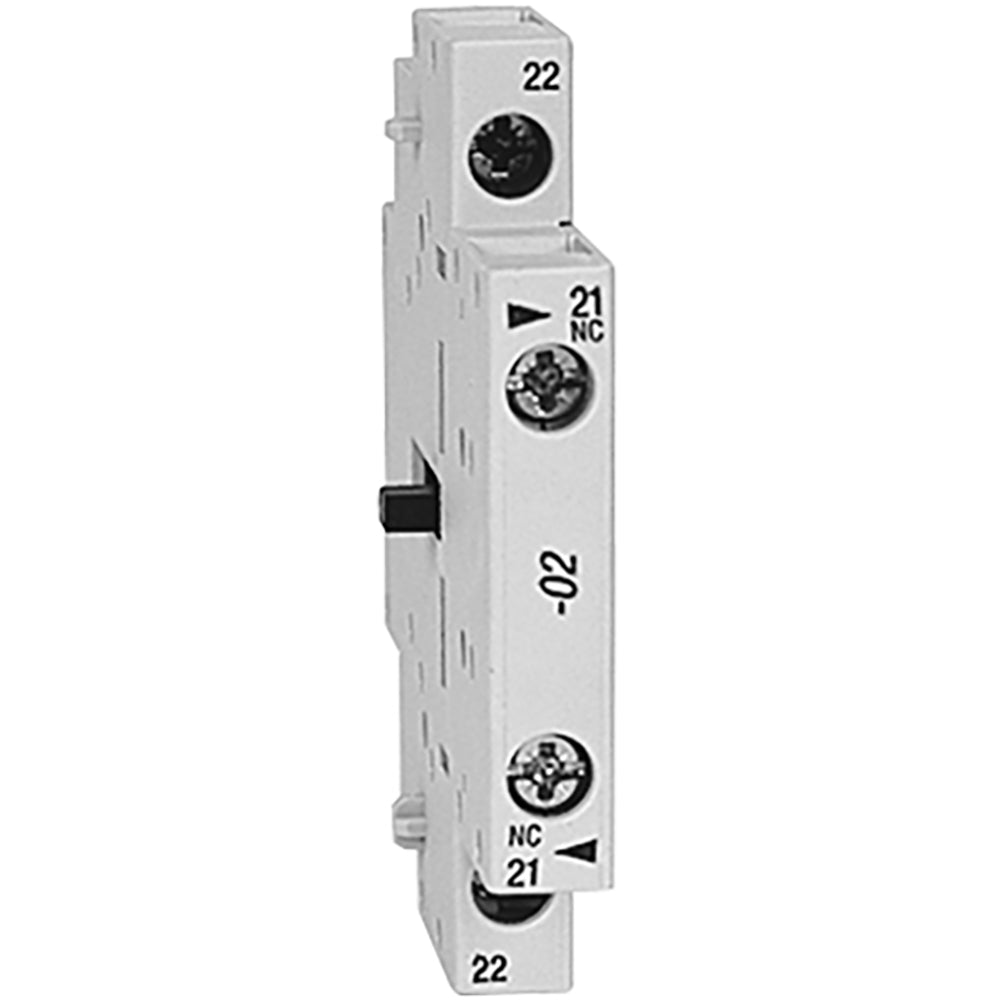

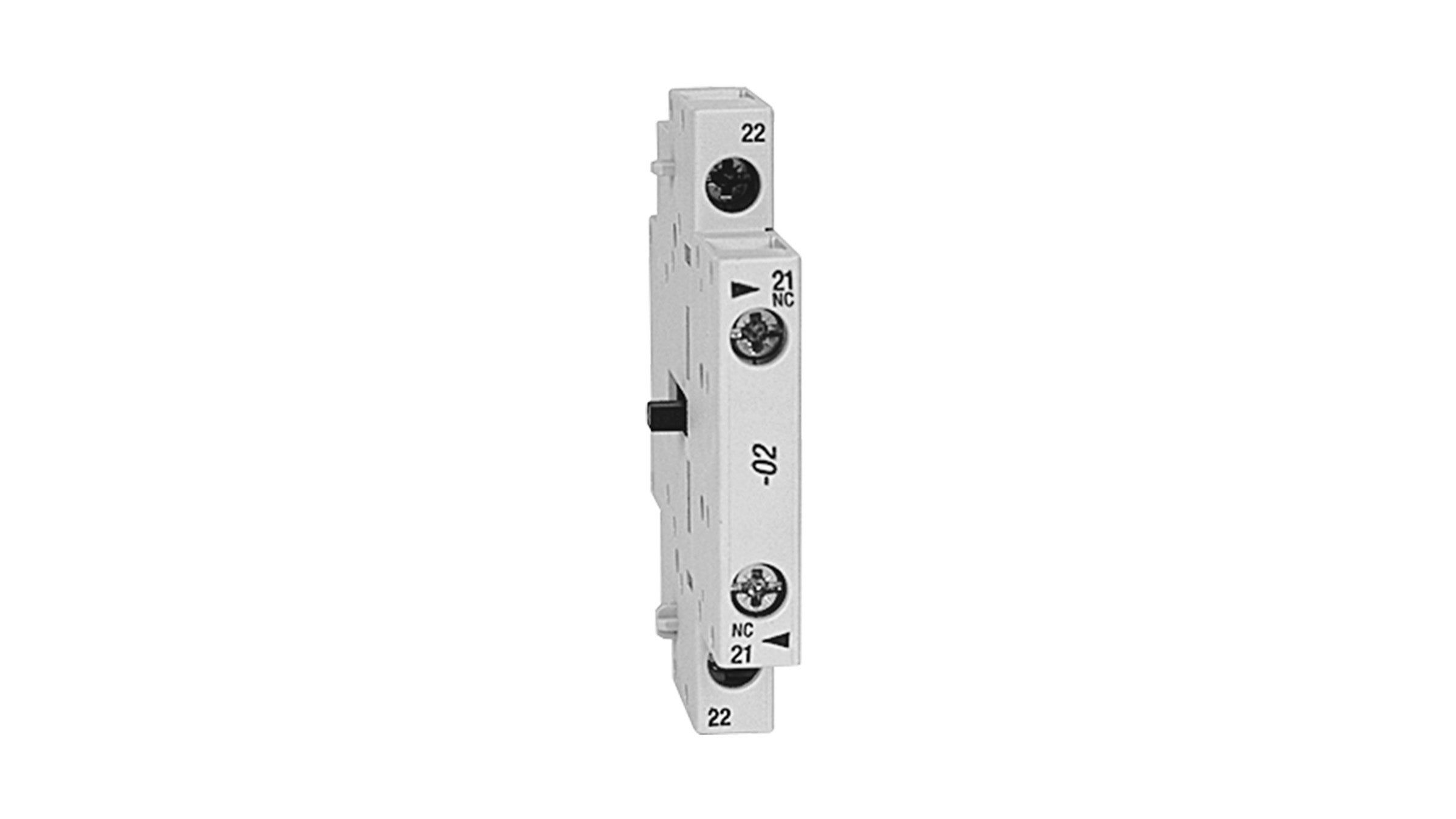

Sprecher & Schuh CM7-02 Mechanical Interlock 690V 10A (Side Mount, 2NC)

Product Description

Sprecher & Schuh CM7-02 is a mechanical interlock accessory for CA7 series contactors that provides mechanical and electrical interlocking. The side-mount unit offers two normally closed (2NC) contacts and is rated for 690 V and 10 A, with approvals including CCC, CE, and cULus and RoHS compliance. It is intended as an auxiliary contact/interlock module for CA7 contactor installations.

• Mechanical and electrical interlock for CA7 series contactors; side-mount design with 2 normally closed (2NC) contacts
• Electrical rating 690 V, 10 A; intended as auxiliary contact/interlock accessory
• Approvals: CCC, CE, cULus; RoHS compliant; compact weight approximately 33.991 g (0.07 lb)

Product Highlights

Side-mount mechanical/electrical interlock for CA7 contactors; 2NC contact configuration; rated 690 V, 10 A; CCC, CE, cULus approvals; RoHS compliant.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CM7-02

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer: Sprecher & Schuh
• Manufacturer Part Number: CM7-02
• Manufacturer Item Number: 22-421-140-01
• Product Description: Mechanical interlock / interlock switch
• For Use With: CA7 series contactors
• Series: CA7 Series
• Mounting Type: Side mount
• Contact Configuration: 2 normally closed (2NC)
• Voltage Rating: 690 V
• Current Rating: 10 A
• Approvals: CCC, CE, cULus
• RoHS Compliance: RoHS compliant
• Net Weight: 33.991 g (0.07 lb)
• Gross Weight: 74.7802 g (0.1 lb)
• Package Quantity: 1
• Lifecycle: Active
• UPC: 88673948660
• UNSPSC Code: 39120000
• Harmonized Tariff Code: 8536908585
