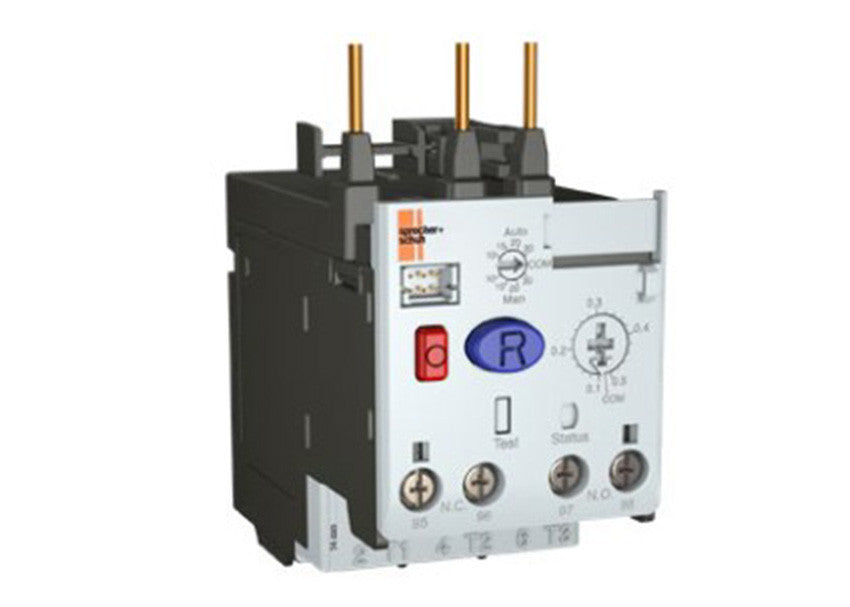

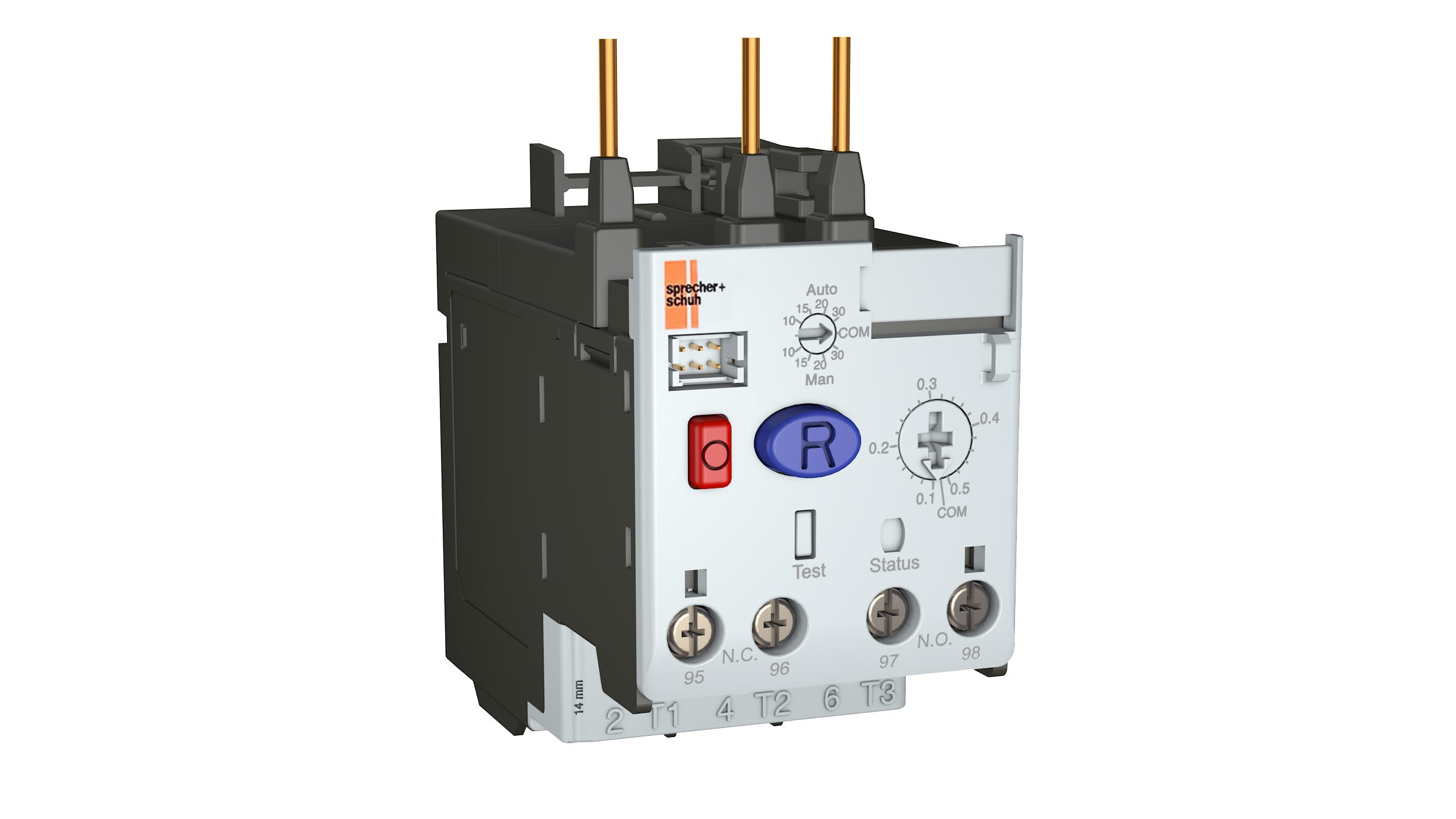

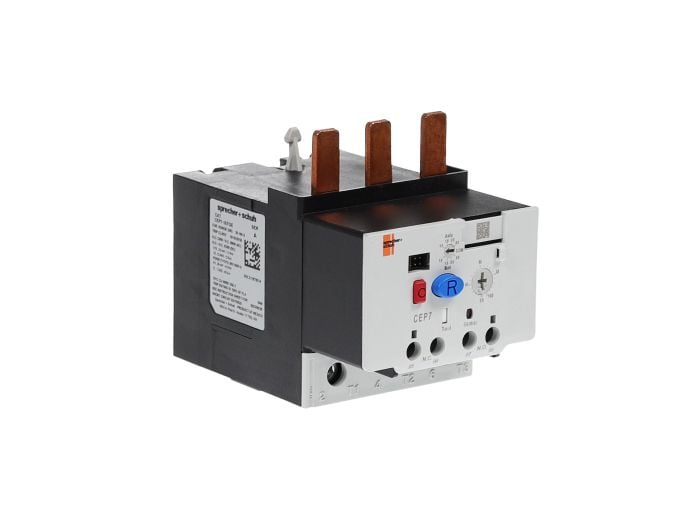

Sprecher & Schuh CEP7-1EFGE Solid State Overload Relay 20-100 A (Direct Mount)

Product Description

Sprecher & Schuh CEP7-1EFGE is a solid state overload relay that provides adjustable motor protection for 20–100 A applications. It mounts directly to CA7 and CAN7 contactors and offers selectable trip classes, phase-loss and phase-unbalance detection, and manual or remote reset options. LED status indicators support fault diagnostics and the unit carries CCC, CE, cULus, and TUV approvals for industrial motor control use.

• Solid state overload relay, adjustable 20–100 A range; direct mount for CA7 and CAN7 contactors
• Selectable trip classes (10/15/20/30), phase-loss and phase-unbalance detection, manual or remote reset
• LED diagnostic indicators, IP20 protection, certified to CCC, CE, cULus, and TUV

Product Highlights

Direct-mount electronic overload relay for CA7 series; adjustable 20–100 A range with selectable trip classes and multi-standard certifications.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CEP7-1EFGE
• Country of Origin: Germany

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: CEP7-1EFGE
• Product Series: CEP7
• Product Type: Solid State Overload Relay
• Current Rating: 20-100 A
• Mounting: Direct mount for CA7-60..97 (direct mount for CA7 and CAN7 contactors)
• Compatible With: CA7, CAN7 contactors (CA7 series models -60, -72, -85)
• Trip Classes: 10/15/20/30
• Certifications: CCC, CE, cULus, TUV
• Net Weight: 1.305 lbs
• IP Rating: IP20
• Terminal Type: Screw Terminals
• Poles: 3 Pole
• Country of Origin: Germany
