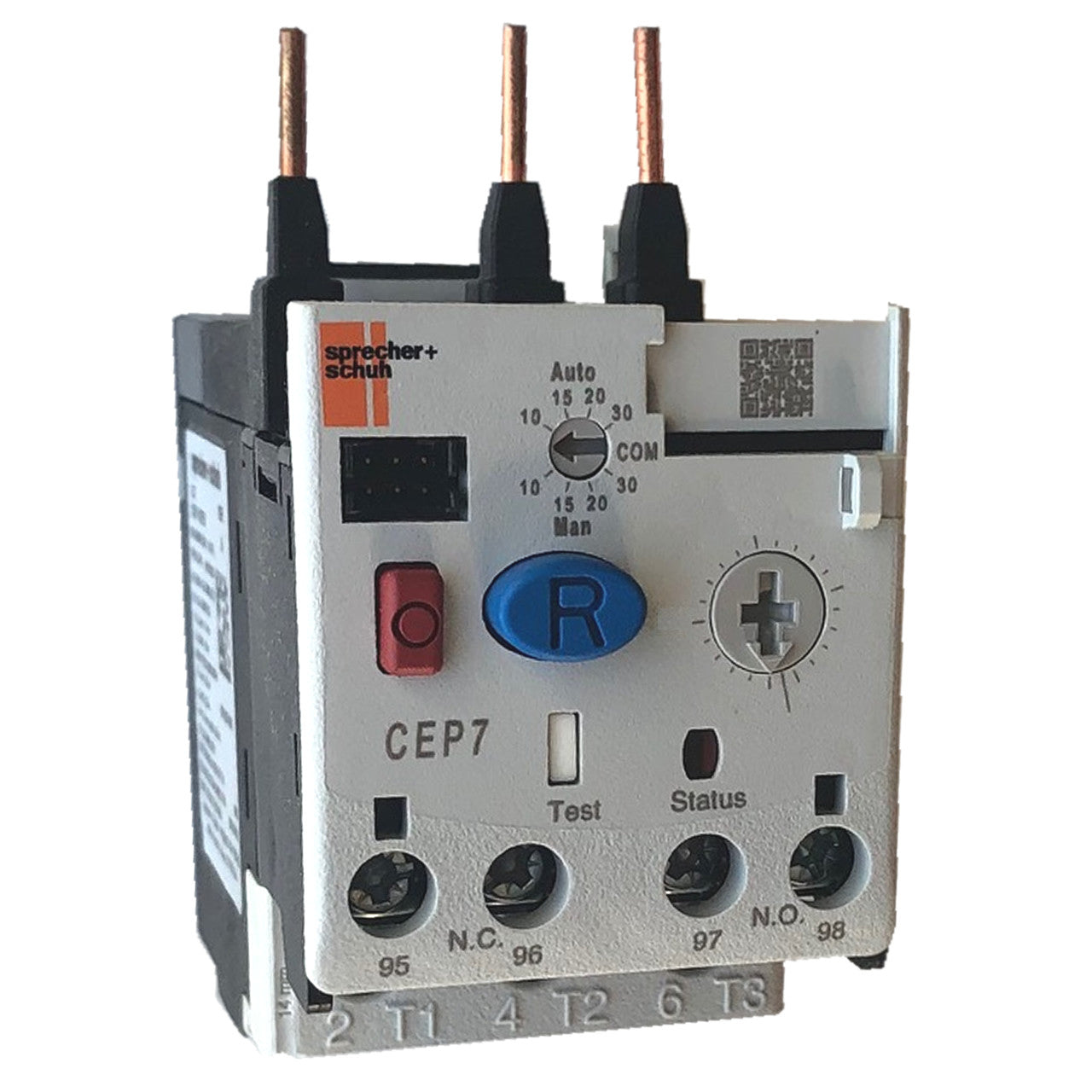

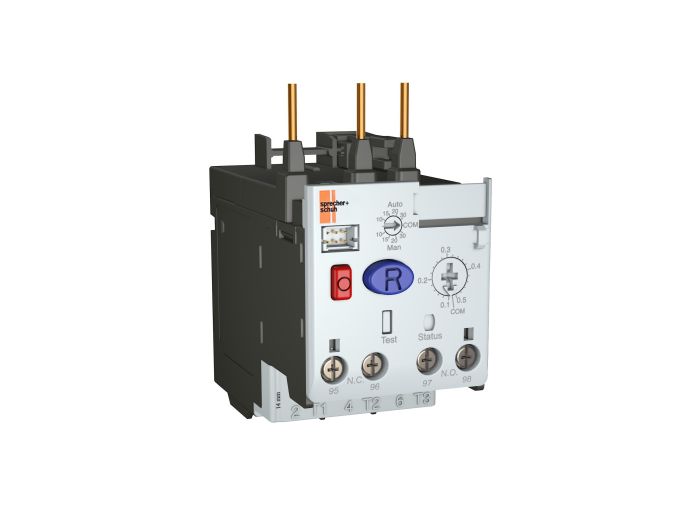

Sprecher + Schuh CEP7-1EFDB Overload Relay 3.2-16.0 A

Product Description

The Sprecher + Schuh CEP7-1EFDB electronic overload has an adjustable AMP range from 3.2 to 16 AMPS and mounts directly to the CA7 series of contactors from 9 to 23 AMPS. These solid state overloads come with phase loss protection, manual or automatic reset and selectable class tripping (Class 10 through 30).

• Adjustable AMP range
• Phase loss protection
• Manual or automatic reset

Product Highlights

CEP7 series overload relay with adjustable AMP range and phase loss protection.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CEP7-1EFDB

Technical Specifications

• Family Series: Sprecher + Schuh Contactors, CEP7 Series
• Manufacturer: Sprecher + Schuh
• Product Series: CEP7
• Manufacturer Part Number: PN-433613
• Description: CEP7 3.2-16.0 A Direct Mnt O/L
• Type: Solid State Overload Relay
• For Use With: CA7, CAN7 Contactors
• Approvals: CCC, CE, cULus, TUV
• AMP Range: 3.2 to 16 AMPS
• Mounting: Direct mount to CA7-9 through CA7-23
• Trip Class: Class 10, 15, 20 or 30
• Phase Loss Protection: Yes
• Reset: Manual or Automatic
• Part Number #: CEP7-1EFDB
• UNSPSC: 39122330
