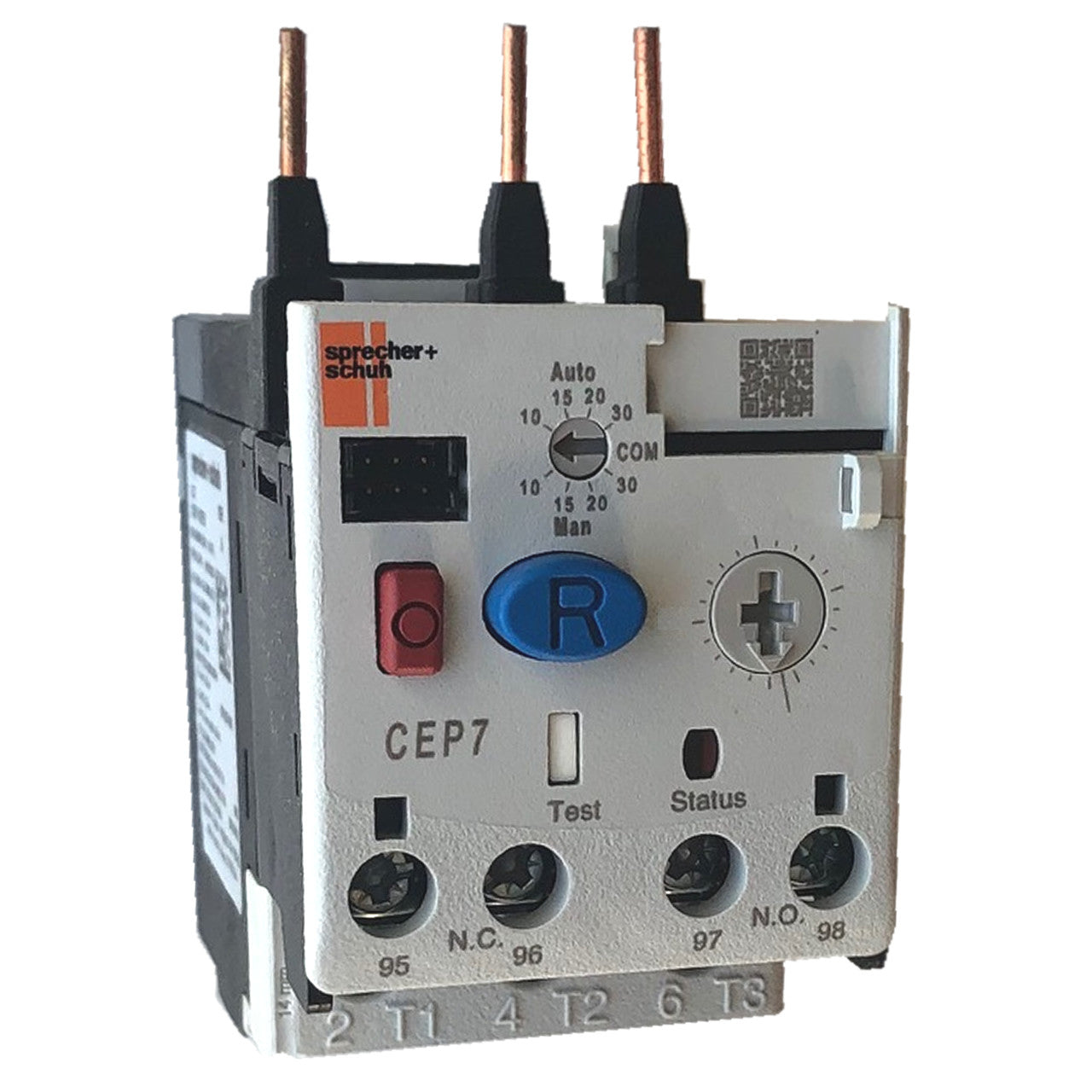

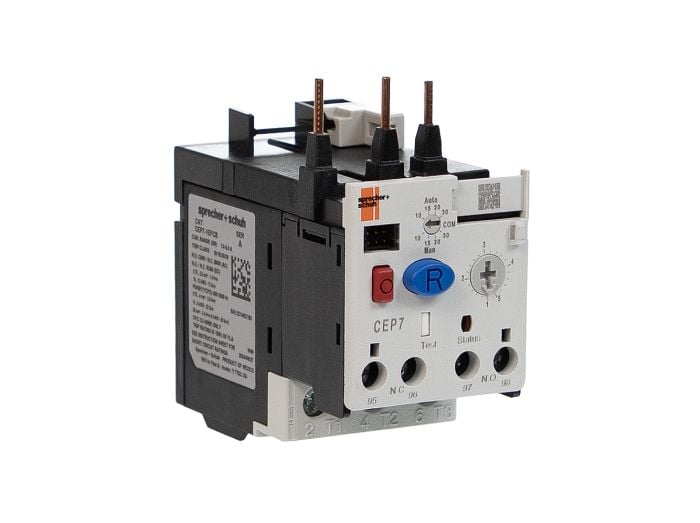

Sprecher & Schuh CEP7-1EFCB Electronic Overload Relay 1-5 A (Direct Mount CA7-9..23) PN-433611

Product Description

The Sprecher & Schuh CEP7-1EFCB is a solid-state electronic overload relay adjustable from 1 to 5 A that mounts directly to CA7-9 through CA7-23 contactors. It provides phase loss detection, selectable trip classes (Class 10, 15, 20 or 30), and configurable manual or automatic reset with a remote reset option. The unit includes integrated auxiliary contacts (1 NO, 1 NC) and screw terminal connections for panel or contactor-mounted motor protection.

• Adjustable current range: 1 to 5 A; direct mount to CA7 series contactors
• Phase loss protection with selectable trip classes (10, 15, 20, 30)
• Manual or automatic reset with remote reset option; integrated 1 NO and 1 NC auxiliary contacts

Product Highlights

Direct-mount solid-state overload relay for CA7 contactors; adjustable 1–5 A; phase loss protection; selectable trip classes; integrated auxiliary contacts.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CEP7-1EFCB

Technical Specifications

• Brand: Sprecher & Schuh
• MPN: CEP7-1EFCB
• Manufacturer Part Number: PN-433611
• Type: Solid state electronic overload relay
• Adjustable Current Range: 1 to 5 A
• Mounting: Direct mount to CA7-9 through CA7-23 contactors
• Compatible Contactors: CA7, CAN7
• Trip Class: Class 10, 15, 20 or 30 (selectable)
• Phase Protection: Phase loss protection
• Reset: Manual or automatic reset (remote reset option)
• Auxiliary Contacts: 1 normally open (NO) and 1 normally closed (NC)
• Terminals: Screw terminals
• Approvals/Certifications: UL Listed; CSA Certified; CE Marked; RoHS Compliant; IEC/EN 60947-4-1; CCC; cULus; TUV
• Weight: 0.70 lbs
• SKU: CEP7-1EFCB
