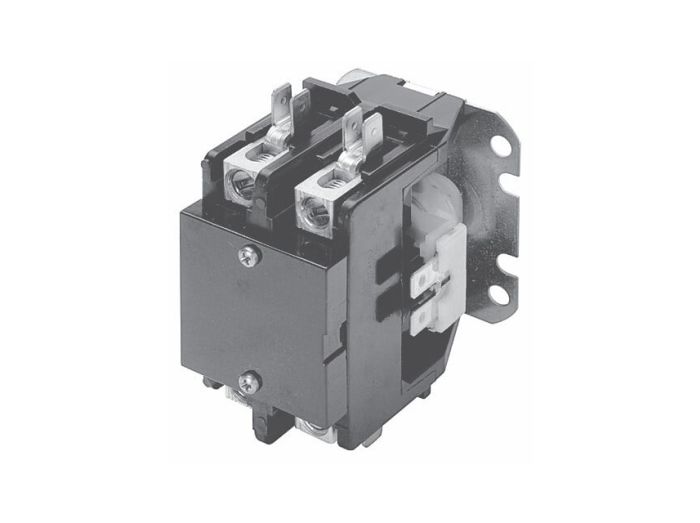

Sprecher & Schuh CDP2-A2P30A-120 Contactor 30A 2-P 120VAC

Product Description

The SPRECHER & SCHUH CDP2-A2P30A-120 contactor is ideal for commercial applications, including air conditioning, refrigeration, and resistive heating. These contactors meet electrical and mechanical requirements for definite purpose contactor standards. The CDP2 series includes one, two, three, and four-pole contactors rated to 600V AC.

• Universal mounting plate
• 25A & 30A have screw power terminals that will accept ring-tongue terminals
• 40A and larger have box power terminals

Product Highlights

The SPRECHER & SCHUH CDP2-A2P30A-120 contactor features quick-connect power terminals, a double break power contact design, and Class B coil insulation.

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CDP2-A2P30A-120
• Country of Origin: Switzerland

Technical Specifications

• Manufacturer Part Number: CDP2-A2P30A-120
• Manufacturer: Sprecher + Schuh
• Product Series: CDP2
• Family Series: Sprecher + Schuh Contactors, CDP2 Series
• Description: CONTACTOR 30A 2-P 120VAC
• Nominal Coil Voltage: 120 VAC
• Coil Voltage: 120 VAC
• Coil Type: Non Latching
• Poles: 2
• Frame Size: A
• Termination: Quick Connect, Screw
• Shunt: No
• Enclosure: Enclosed
• Resistive Rating: 30 A
• Approvals: CE, CSA, UR
• Brand: Sprecher + Schuh
• Country of Origin: Switzerland
• Category: Business & Industrial
• Sub-Category: Electrical Equipment & Supplies
• Sub-Category 2: Contactors
• Sub-Category 3: Definite Purpose Contactors
• UNSPSC: 39121529
• Application: Commercial Applications
• Contact Rating: 600
• Enclosure Type: Open
• Frequency Rating: 60
• Operating Temperature: -40 to 150
• Type: Economical Electrically Held High Performance Lighting Rated
• Series: CDP2 Series
• Maximum Load Current: 30
• UNSPSC Code: 39120000
• Number of Poles: 2
• Unit of Measure: EA
• Product Type: Contactors
