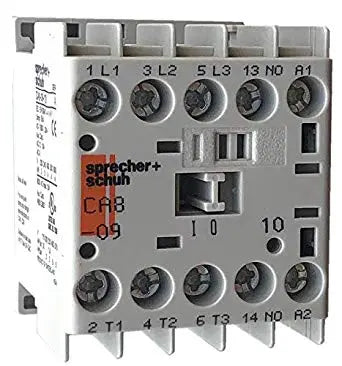

Sprecher + Schuh CA8-09-10-120 Contactor 9A Mini

Product Description

The SPRECHER + SCHUH CA8-09-10-120 is a Series CA8 Mini Contactor designed for controlling motors. It features a 9 Amp UL motor switching capacity and a 120 VAC rated coil. This 3-pole electromechanical contactor includes one normally open auxiliary contact, supporting versatile applications with various horsepower ratings up to 5 HP at 460V 3PH. It is suitable for industrial control systems requiring compact and reliable motor control.

• Series CA8 Mini Contactor with 3 poles and 1 normally open auxiliary contact.
• Supports 110V @ 50 Hz and 120V @ 60 Hz coil voltage for flexible power requirements.
• DIN-rail mountable or base mounted for easy installation in various enclosures.

Product Highlights

Compact SPRECHER + SCHUH CA8-09-10-120 Mini Contactor with 9A UL motor switching, 120 VAC coil, and versatile mounting options for motor control applications.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA8-09-10-120
• Country of Origin: Mexico

Technical Specifications

• Manufacturer: Sprecher + Schuh
• Product Series: CA8
• Rated Horsepower @ 115V 1PH: 1/2 HP
• Rated Horsepower @ 230V 1PH: 1-1/2 HP
• Rated Horsepower @ 200V 3PH: 2 HP
• Rated Horsepower @ 230V 3PH: 2 HP
• Rated Horsepower @ 460V 3PH: 5 HP
• Rated Horsepower @ 575V 3PH: 5 HP
• Auxiliary Contacts Normally Open: 1
• Auxiliary Contacts Normally Closed: 0
• Coil Voltage: 110V @ 50 Hz, 120V @ 60 Hz
• Coil Type: Non Latching
• Poles: 3
• Termination: Screw
• General Purpose (AC1) Current: 20 A
• UL Motor Switching (AC3) Current: 9 A
• Mechanically Interlocked: No
• Approvals: CCC, CE, cULus
• RoHS Compliant: Yes
