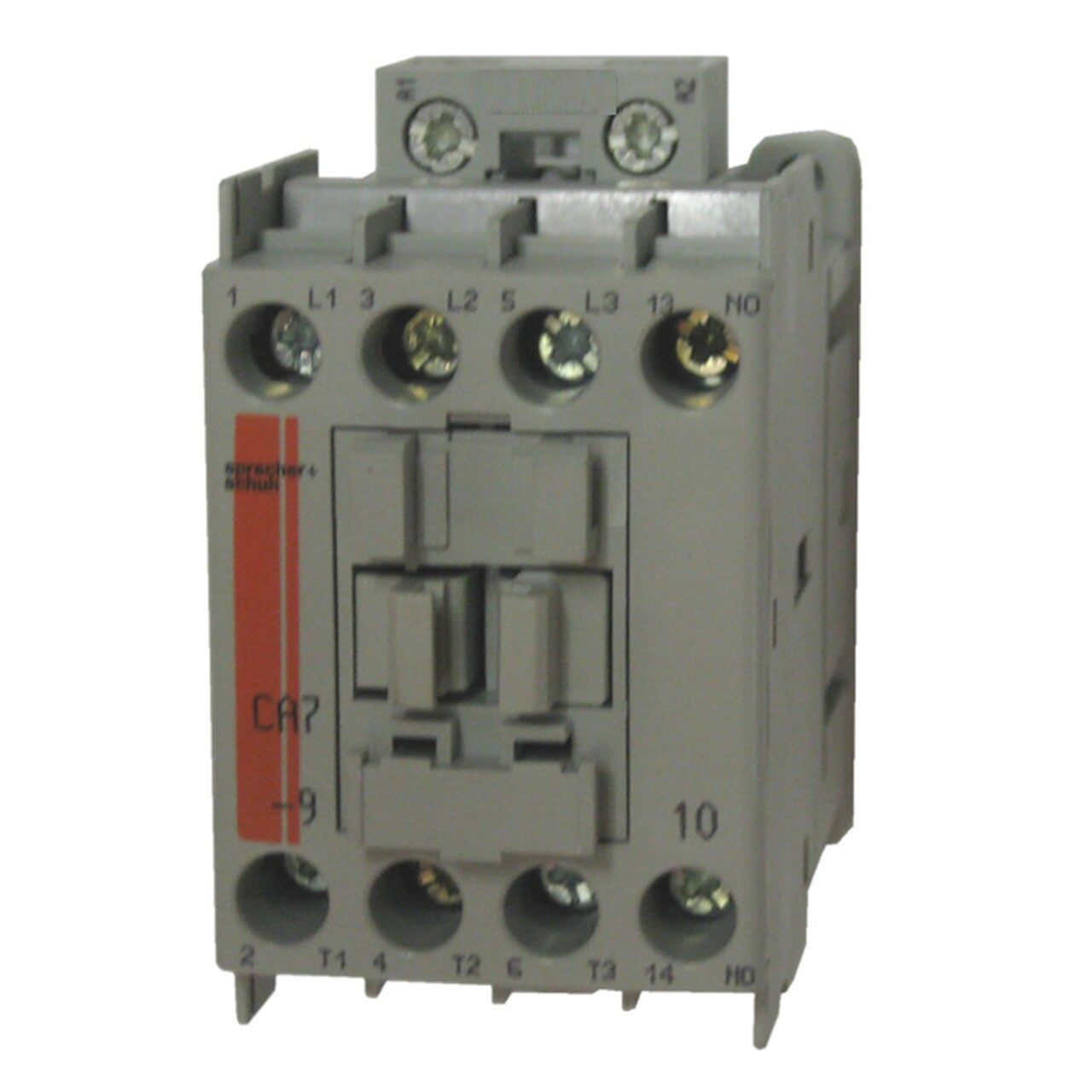

Sprecher + Schuh CA7-9-10-600 IEC contactor 9 A (pack of 1) 22-301-101-36

Product Description

Sprecher + Schuh CA7-9-10-600 is a 3-pole IEC contactor with a 9 A AC-3 rating and a 550/600 V AC coil (550 V at 50 Hz, 600 V at 60 Hz). It includes one normally open auxiliary contact, screw terminals, 35 mm DIN rail mounting, and arc chutes to reduce contact arcing. The device is rated for motor loads (2 HP at 230 V, 5 HP at 460 V) and is compatible with CEP7 overload relays for starter assemblies.

• Coil: 550/600 V AC (550 V @ 50 Hz, 600 V @ 60 Hz); contact rating 9 A AC-3, 32 A AC-1
• Mechanical: 3-pole contactor, 1 normally open auxiliary contact, screw terminals, 35 mm DIN rail mounting
• Performance and compliance: rated 2 HP @ 230 V and 5 HP @ 460 V; arc chutes; UL listed, CSA approved, CE marked, meets IEC 60947-1

Product Highlights

3-pole IEC contactor, 9 A AC-3, 550/600 V AC coil, 1 N.O. auxiliary, DIN rail mount, UL/CSA/CE certified

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-9-10-600

Technical Specifications

• Brand: Sprecher + Schuh
• Manufacturer Part Number: CA7-9-10-600
• Alternate Part Number: 22-301-101-36
• Series: CA7
• Product Type: IEC contactor
• Poles: 3 pole
• Current Rating: 9 A (AC-3); 32 A (AC-1)
• Coil Voltage: 550/600 V AC (550 V @50 Hz / 600 V @60 Hz)
• Horsepower Rating: 2 HP @ 230 V (3-phase); 5 HP @ 460 V (3-phase)
• Auxiliary Contacts: 1 normally open (1 N.O.)
• Contact Configuration: 1 NO auxiliary
• Terminals: Screw terminals
• Mounting Type: 35 mm DIN rail
• Features: Arc chutes to reduce contact arcing; compatible with CEP7 electronic overload relays; supports top-mount and side-mount auxiliaries
• Certifications: UL listed; CSA approved; CE marked; meets IEC 60947-1
• SKU: 2363866
• UPC: 00886739441235
• Package Quantity: Pack of 1
• Condition: New
• UNSPSC: 39121529
• Catalog Description: CA7 contactor 9 A 550 V 50 Hz / 600 V 60 Hz AC, 1 NO
