Sprecher + Schuh CA7-9-10-24Z Non-Reversing Contactor 9 AMP

Product Description

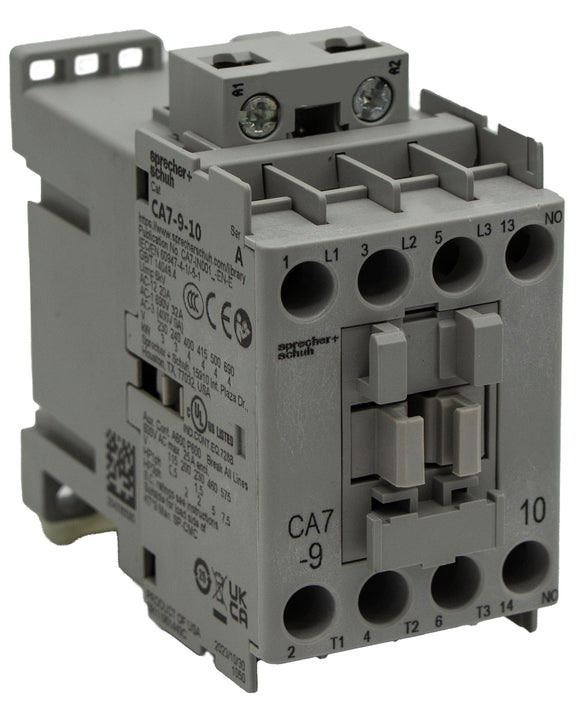

The SPRECHER + SCHUH CA7-9-10-24Z is a non-reversing contactor with three poles and one normally open auxiliary contact. This Series CA7, 9 AMP contactor has an AC rated coil of 24VAC 50/60HZ and a base mounted auxiliary contact. It is rated 2 HP at 230V and 5 HP at 460V. Conforms to IEC/EN 60947-4-1 / 5-1.

• 3-Pole AC Contactor
• Genuine New OEM Part
• Compact dimensions with maximum performance

Product Highlights

The CA7 contactor controls motors up to 75HP and is mechanically and electrically compatible with Sprecher + Schuh's CEP7 electronic overload relay and KT9 motor circuit controller.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-9-10-24Z

Technical Specifications

• Manufacturer: Sprecher + Schuh
• Part Number: CA7-9-10-24Z
• Item model number: CA7-9-10-24Z
• Item Package Quantity: 1
• AC3 Amp ratings: 9
• AC1 Amp ratings: 32
• Three phase HP ratings 230V: 2
• Three phase HP ratings 460V: 5
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 0
• Coil Voltage 50Hz: 24V
• Coil Voltage 60Hz: 24V
• Auxiliary Contact: 1NO
• Brand: Sprecher + Schuh
• Number of Poles: 3
• Series: CA7 Series
• Unit of Measure: EA
• Mount: DIN Rail
• Coil Voltage (AC): 24 V
• Max Current Rating: 32 A
• Environmental Classification: RoHS Non-Compliant
