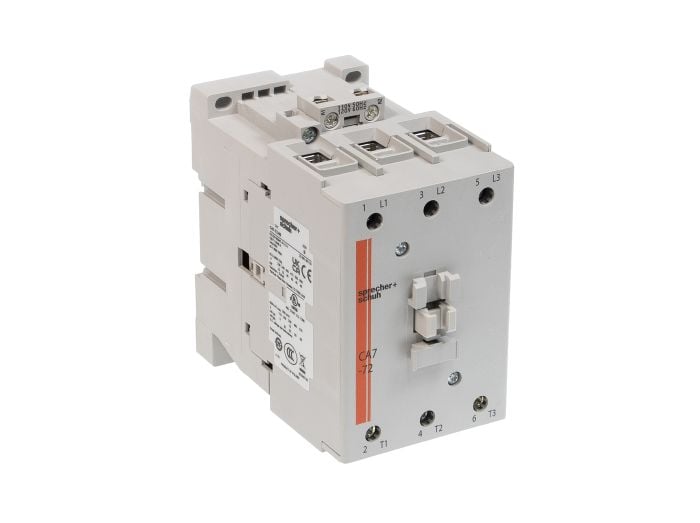

Sprecher & Schuh CA7-72-10-120 IEC Contactor 72 A (3 Pole)

Product Description

The Sprecher & Schuh CA7-72-10-120 is a CA7 series 3-pole IEC contactor rated 72 A (AC-3) with a 120 VAC coil and one normally open auxiliary contact. It features screw terminations, a modular CA7 frame, mechanically linked (positively guided) contacts that meet IEC 60947-5-1 clearances, and approvals including CCC, CSA and cULus. Typical applications include motor control and protection in industrial control panels.

• 72 A AC-3 rating (100 A AC-1) with CA7 frame and screw terminations
• 120 VAC nominal coil, non-latching; 3 poles with 1 normally open auxiliary contact
• Mechanically linked contacts meeting IEC 60947-5-1; approvals: CCC, CSA, cULus

Product Highlights

3-pole IEC contactor, 72 A AC-3, 120 VAC coil, 1NO auxiliary, CA7 modular frame

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-72-10-120

Technical Specifications

• Manufacturer: Sprecher & Schuh
• Manufacturer Part Number: CA7-72-10-120
• Product Series: CA7
• Type: AC non-reversing IEC contactor
• Poles: 3
• Frame Size: CA7
• Coil Voltage: 120 VAC
• Coil Type: Non latching (AC coil)
• Auxiliary Contact: 1 normally open (1NO)
• Termination: Screw
• Rated Current (AC-3): 72 A
• Rated Current (AC-1): 100 A
• Max Motor Horsepower: Up to 75 HP (CA7 line) @ 460/575 V
• Mounting: 35 mm DIN rail
• Standards / Approvals: IEC 60947-1; IEC 60947-5-1 compliance; CCC, CSA, cULus
• Net Weight: 3.18 lbs
