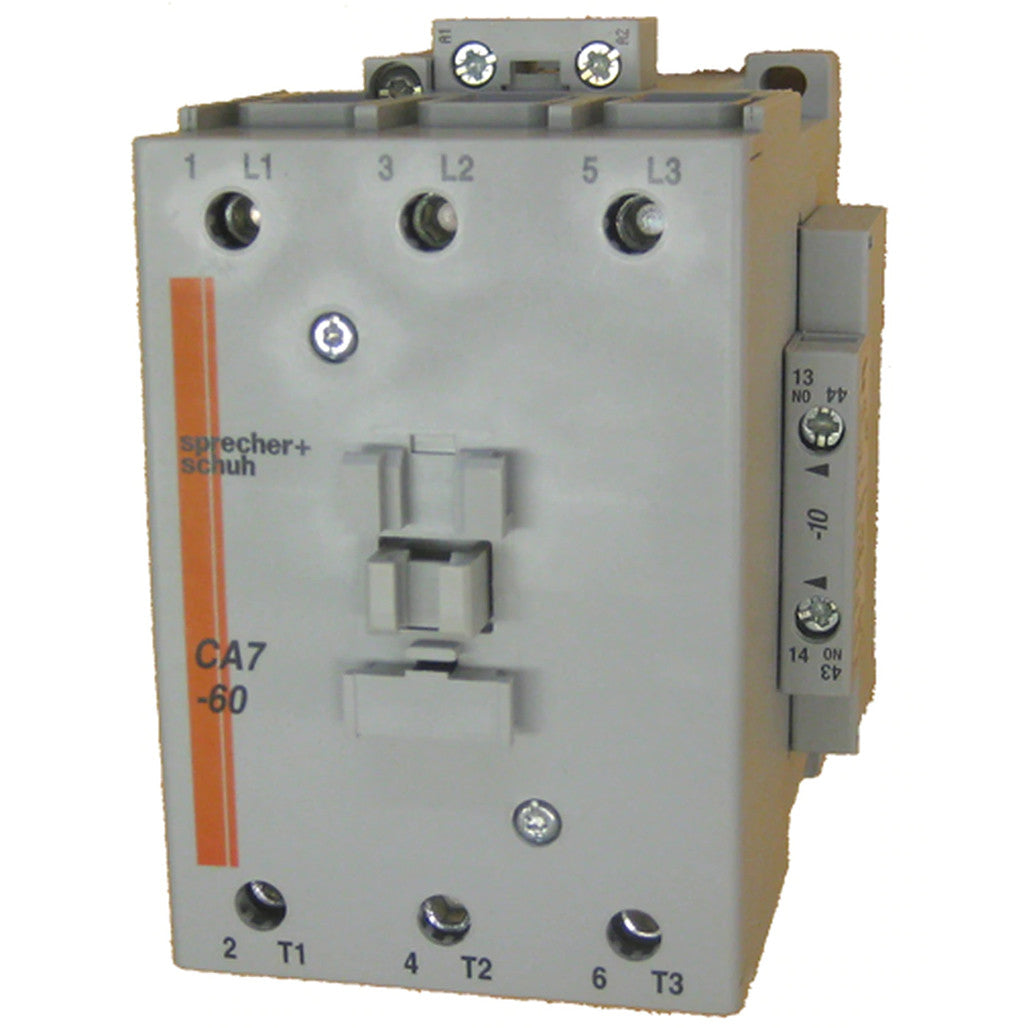

Sprecher & Schuh CA7-60-10-24Z 3-pole contactor 60 A (24 V AC)

Product Description

Sprecher & Schuh CA7-60-10-24Z is a 3-pole IEC contactor with a 24 V AC (50/60 Hz) coil for industrial switching. It provides a 60 A AC-3 rating and a 100 A AC-1 rating, and is rated for 20 HP at 230 V and 40 HP at 460 V (3-phase). The unit includes one normally open side-mounted auxiliary contact, screw terminals, arc chutes to reduce arcing, and 35 mm DIN rail mounting.

• 24 V AC coil (50/60 Hz) with 60 A AC-3 and 100 A AC-1 current ratings
• One normally open side-mounted auxiliary contact; screw terminals; 35 mm DIN rail mounting
• Supports 2- and 4-pole top-mount and 2-pole side-mount auxiliaries; compatible with CEP7 overload relays

Product Highlights

IEC 3-pole contactor, arc chutes for extended contact life, UL/CSA/CE approvals

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-60-10-24Z
• Country of Origin: Switzerland

Technical Specifications

• Brand: Sprecher & Schuh
• Manufacturer Part Number: CA7-60-10-24Z
• Product Type: Contactor (IEC)
• Poles: 3
• Coil Voltage: 24 V AC (50/60 Hz)
• AC-3 Current Rating: 60 A
• AC-1 Current Rating: 100 A
• Horsepower Rating: 20 HP @ 230 V; 40 HP @ 460 V (3-phase)
• Auxiliary Contacts: 1 normally open (N.O.), side-mounted
• Terminals: Screw
• Mounting: 35 mm DIN rail
• Mounting Options: Supports 2- and 4-pole top-mount and 2-pole side-mount auxiliaries
• Compatible Accessories: CEP7 electronic overload relays
• Arc Suppression: Arc chutes to reduce electrical arcing
• Standards/Certifications: UL listed; CSA approved; CE marked; meets IEC 60947-1
• Country of Origin: Swiss Confederation
