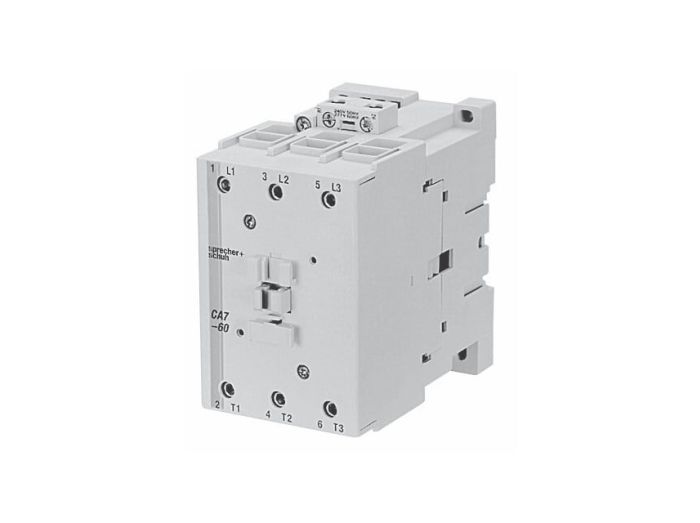

Sprecher + Schuh CA7-60-00-120 Contactor 60A

Product Description

The SPRECHER + SCHUH CA7-60-00-120 is a high-quality contactor designed for industrial applications. It features a 3-pole configuration with a 110/120VAC 50/60Hz coil, making it compatible with standard power systems. The contactor has a maximum current rating of 60A, making it suitable for handling heavy loads. It is designed to be easily mounted on a 35mm DIN rail.

• Rugged, space-saving, and modular design
• Lighter, lower depth
• More energy-efficient contactors

Product Highlights

The SPRECHER + SCHUH CA7-60-00-120 contactor is an excellent choice for industrial applications that require reliable motor control. Its robust design and efficient performance make it a trusted solution for a wide range of applications.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-60-00-120
• Country of Origin: CN

Technical Specifications

• Supplier: Sprecher + Schuh
• Part No: CA7-60-00-120
• RoHS: Yes
• COO: CN
• ECCN: EAR99
• Product Series: CA7
• Description: IEC Contactor 60 A
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Voltage: 110/120 VAC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: None
• Termination: Screw
• General Purpose (AC1): 100 A
• UL Motor Switching (AC3): 60 A
• Approvals: CCC, CSA, cULus
• Mounting Type: DIN Rail
• Frequency Rating: 50/60 Hz
• Contact Configuration: 1NO+1NC
• Operating Temperature: -25 to 60 deg C
• Series: CA7
• Maximum Load Current: 60 A
• Primary brand: Sprecher+Schuh
• Order code / Manufacturer SKU: CA7-60-00-120
• Manufacturer product status: Commercialized
• Manufacturer description: S+S CA7 Contactors - 60-97A - AC - CONTACTOR 60A 120Vac
