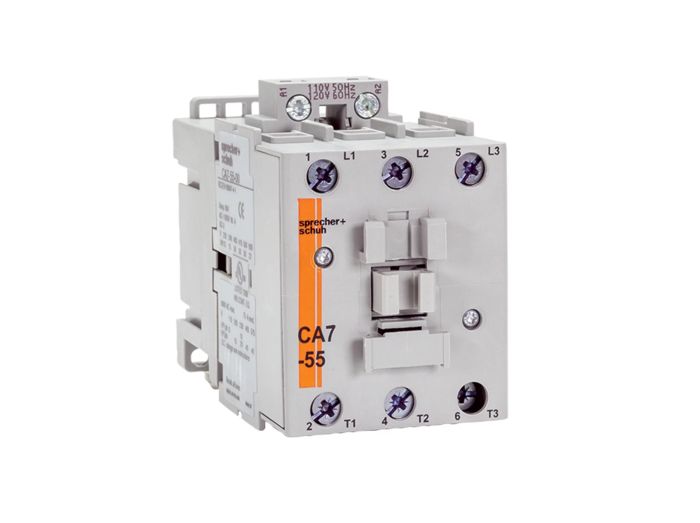

Sprecher & Schuh CA7-55-10-24Z Contactor 55 A 24 VAC (3 Pole)

Product Description

Sprecher & Schuh CA7-55-10-24Z is a CA7 series definite-purpose contactor with a 55 A motor switching rating and a 24 VAC coil operating at 50/60 Hz. It provides three main poles with one normally open auxiliary contact and screw terminations. The CA7 design includes mechanically linked, force-guided contacts per IEC 60947-5-1, high contact pressure, and bounce-free operation to handle high starting currents in industrial control and motor switching applications.

• 55 A motor switching rating (AC3) and 85 A general purpose (AC1) capacity with 24 VAC coil at 50/60 Hz
• Three main poles, one normally open auxiliary contact (1 NO), screw termination
• Mechanically linked (force-guided) contacts per IEC 60947-5-1; high contact pressure and bounce-free contacts

Product Highlights

55 A (AC3) contactor, 24 VAC coil, 3 poles, 1 NO auxiliary, IEC 60947-5-1 force-guided contacts

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-55-10-24Z
• Country of Origin: United States

Technical Specifications

• Manufacturer: Sprecher & Schuh
• Manufacturer Part Number: CA7-55-10-24Z
• Product Series: CA7
• Type: AC non-reversing IEC
• Category: Definite purpose contactor
• Rated Current (AC3): 55 A
• Rated Current (AC1): 85 A
• Coil Voltage: 24 VAC
• Coil Frequency: 50/60 Hz
• Coil Type: Non latching
• Poles: 3
• Auxiliary Contacts: 1 NO
• Contact Configuration: Normally Open (NO)
• Termination: Screw
• Frame Size: CA7
• Approvals: CCC, CSA, cULus
• Country of Origin: United States
