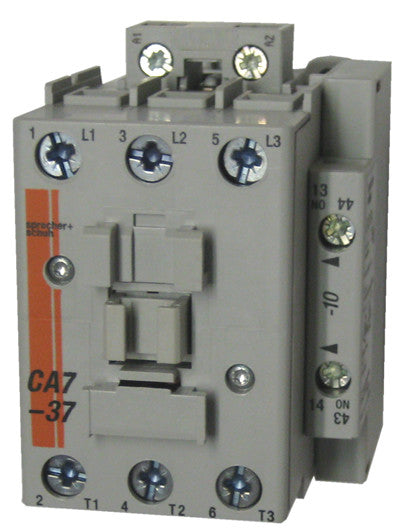

Sprecher & Schuh CA7-37-10-220W Contactor 37 Amp (3-Pole)

Product Description

The Sprecher & Schuh CA7-37-10-220W is a 3-pole IEC contactor rated 37 A (AC-3) with a 208-240 V AC coil (60 Hz). It provides one normally open side-mounted auxiliary contact, screw terminals, and 35 mm DIN rail mounting. The device is rated 10 HP at 230 V and 25 HP at 460 V (three-phase) and supports integration with CEP7 electronic overload relays for motor starter assemblies.

• Rated current: 37 A (AC-3) and 65 A (AC-1); motor ratings 10 HP @ 230 V, 25 HP @ 460 V (3-phase)
• Coil voltage: 208-240 V AC, 60 Hz; IEC design with arc chutes to extend contact life
• One normally open side-mounted auxiliary contact, screw terminals, and 35 mm DIN rail mounting

Product Highlights

3-pole 37 A contactor with 208-240 V AC coil and DIN-rail mounting

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-37-10-220W

Technical Specifications

• Brand: Sprecher & Schuh
• Model/MPN: CA7-37-10-220W
• Series: CA7
• Pole Count: 3
• Rated Current (AC-3): 37 A
• Rated Current (AC-1): 65 A
• Coil Voltage: 208-240 V AC, 60 Hz
• Horsepower Rating: 10 HP @ 230 V; 25 HP @ 460 V (3-phase)
• Auxiliary Contacts: 1 normally open (N.O.)
• Auxiliary Contact Location: Side-mounted
• Terminals: Screw
• Mounting: 35 mm DIN rail
• Contact Design: Mechanically linked main contacts; cross-stamped auxiliary contacts
• Compatible Overload Relays: CEP7 electronic overload relays
• Standards/Certifications: UL Listed, CSA Approved, CE marked; meets IEC 60947-1
