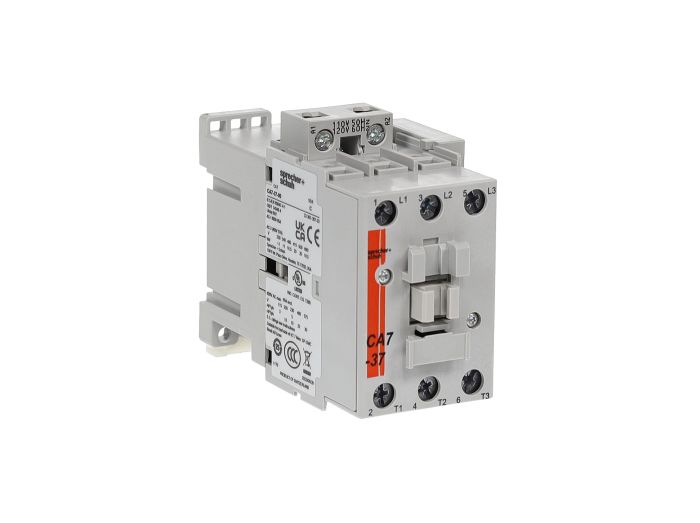

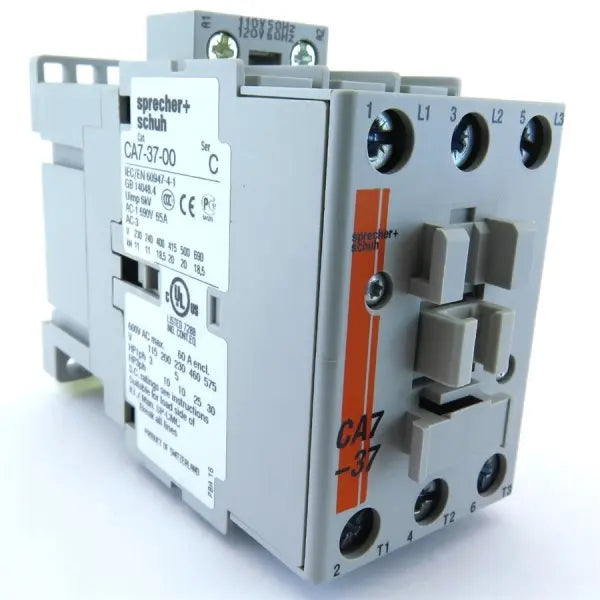

Sprecher & Schuh CA7-37-10-120 contactor 37 amp (3-pole)

Product Description

Sprecher & Schuh CA7-37-10-120 is a 3-pole, 37 A IEC contactor with a reversible AC coil rated 110 V 50 Hz / 120 V 60 Hz and a single normally open base-mounted auxiliary contact. It provides motor switching capacity (10 HP at 230 V, 25 HP at 460 V), can be base mounted or snapped onto a 35 mm DIN rail, and uses mechanically linked force-guided, bounce-free contacts for handling high starting currents.

• 3-pole, 37 A main contacts with 1 normally open base-mounted auxiliary contact
• Reversible AC coil 110 V 50 Hz / 120 V 60 Hz (non-latching); screw termination
• Rated 10 HP @ 230 V and 25 HP @ 460 V; base mountable or 35 mm DIN rail snap-on

Product Highlights

3-pole 37 A IEC contactor with reversible 110/120 VAC coil, 1 NO auxiliary contact, CA7 series, DIN rail or base mount

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: CA7-37-10-120
• Country of Origin: United States

Technical Specifications

• Manufacturer: Sprecher & Schuh
• Manufacturer Part Number: CA7-37-10-120
• Series: CA7
• Type: IEC contactor
• Poles: 3
• Rated Current: 37 A
• Auxiliary Contacts: 1 normally open (N.O.), base-mounted
• Coil Voltage: 110 V 50 Hz / 120 V 60 Hz AC (reversible)
• Coil Type: Non-latching, reversible AC coil
• Horsepower Ratings: 10 HP @ 230 V (3-phase); 25 HP @ 460 V (3-phase)
• Mounting: Base mountable or 35 mm DIN rail snap-on
• Termination: Screw
• General Purpose (AC1): 65 A
• UL Motor Switching (AC3): 37 A
• Approvals: CCC, CSA, cULus
• RoHS: Yes
• Net Weight: 1.095 lbs
• Country of Origin: CN
