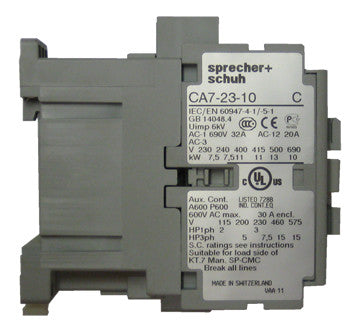

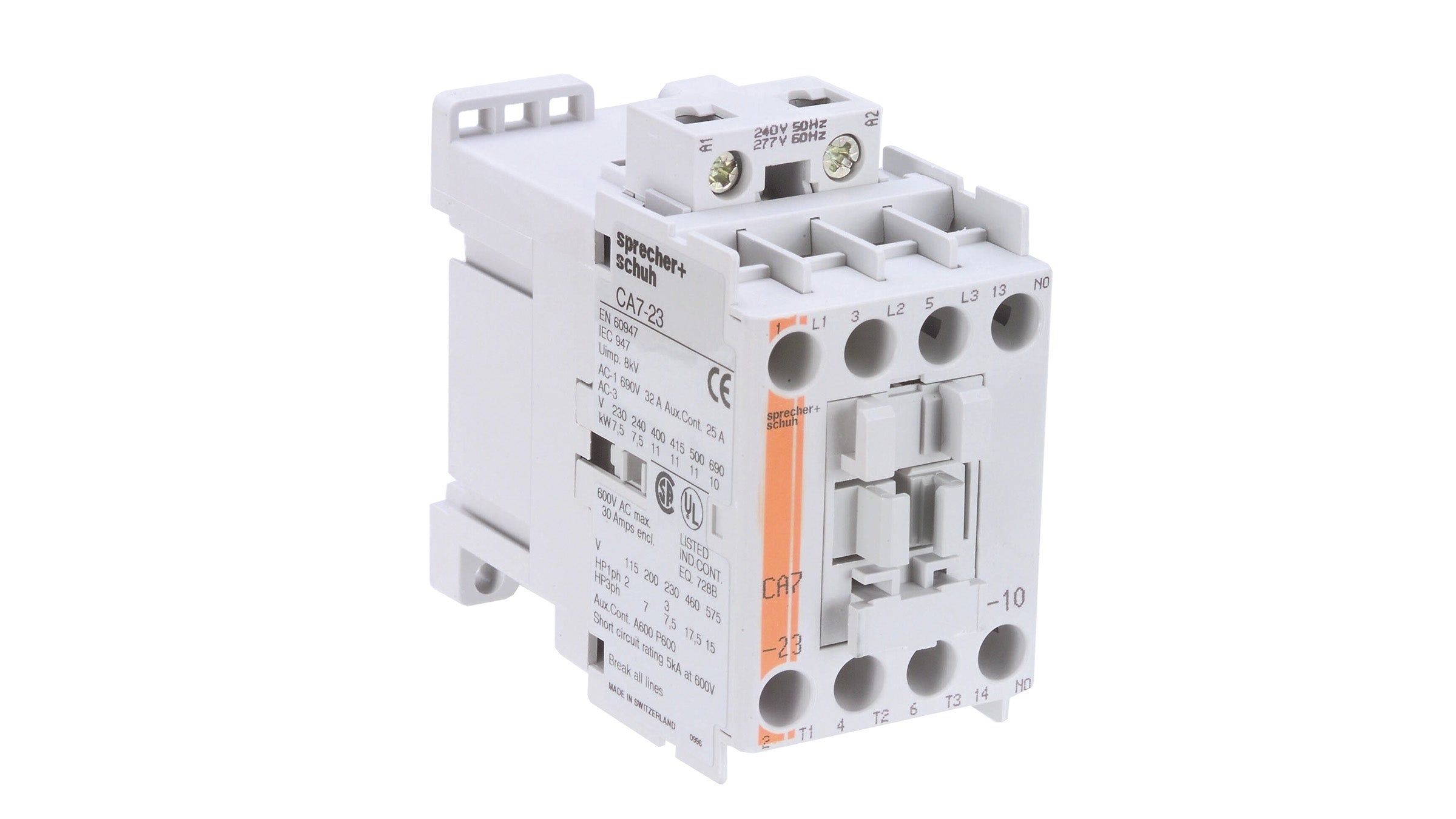

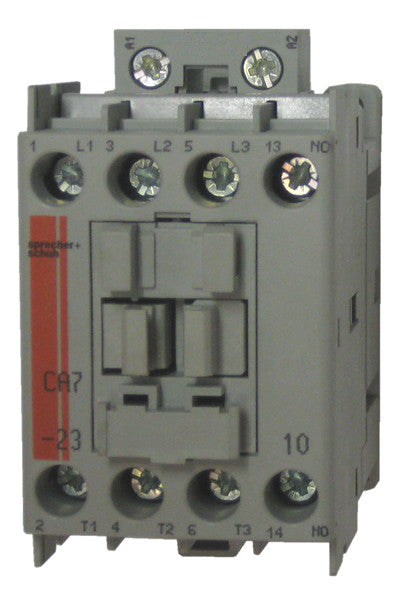

Sprecher + Schuh CA7-23-10-600 Contactor 23 A (3-pole) 22-321-401-36

Brand: SPRECHER + SCHUH
SKU: CA7-23-10-600
Availability: In Stock

Ships same day if ordered by 12 pm
$291.55
$291.55
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Sprecher + Schuh CA7-23-10-600 is a 3-pole IEC contactor with a 550 V/50 Hz or 600 V/60 Hz AC coil, rated 23 A for AC-3 motor switching and 32 A for AC-1 general purpose loads. The contactor provides one normally open auxiliary contact, screw terminals, and 35 mm DIN rail mounting for industrial control and motor starter applications.

  • Coil voltage: 550 V AC (50 Hz) or 600 V AC (60 Hz); coil code 600
  • Current ratings: 23 A (AC-3), 32 A (AC-1); motor ratings: 7.5 HP @ 230 V, 15 HP @ 460 V (3-phase)
  • Mechanical and electrical: 3-pole configuration, 1 NO auxiliary contact, screw terminals, 35 mm DIN rail mount; UL, CSA, CE, meets IEC 60947-1

Product Highlights

3-pole IEC contactor, 23 A AC-3; coil 550/600 V AC; 1 NO auxiliary; DIN rail mount; UL/CSA/CE certified

Product Information

Standard Information

  • Brand: SPRECHER + SCHUH
  • Manufacturer Part Number: CA7-23-10-600
  • Country of Origin: Swiss Confederation
Technical Specifications
Brand
Sprecher + Schuh
Manufacturer Part Number
CA7-23-10-600
Alternate Part Number
22-321-401-36
Series
CA7
Product Type
AC non-reversing IEC contactor
Poles
3
Coil Voltage
550 V AC (50 Hz) / 600 V AC (60 Hz)
Coil Code
600
Rated Current AC-3
23 A
Rated Current AC-1
32 A
Horsepower Ratings
7.5 HP @ 230 V; 15 HP @ 460 V (3-phase)
Auxiliary Contacts
1 normally open (1 NO)
Terminals
Screw terminals
Mounting Type
35 mm DIN rail
Frame Size
CA7
Certification / Standards
UL Listed, CSA Approved, CE marked, meets IEC 60947-1
Weight
0.83 lb
Country of Origin
Swiss Confederation
