Sprecher + Schuh CA7-23-10-480 Contactor 7.5 HP/15 HP

Product Description

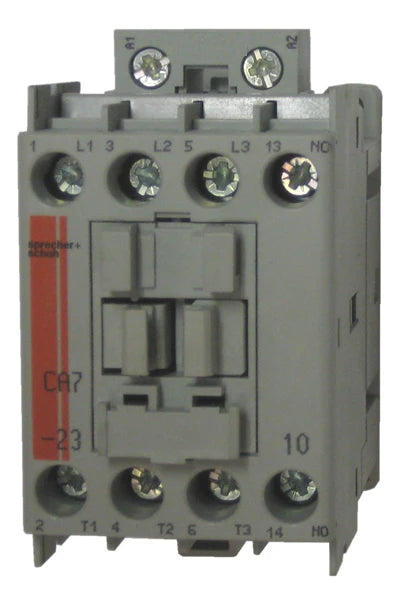

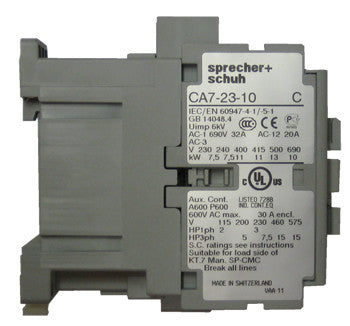

The Sprecher + Schuh CA7-23-10-480 is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 7.5 HP at 230V and 15 HP at 460V. This 23 AMP AC-3 (32 AMP AC-1) IEC contactor features 1 normally open (N.O.) auxiliary contact and a 440v50Hz/480v60Hz AC rated coil.

• 3-Pole AC Contactor
• 480VAC Coil
• 1 normally open (N.O.) auxiliary contact

Product Highlights

The Sprecher + Schuh CA7-23-10-480 contactor is UL Listed, CSA Approved, carries the CE Mark and meets IEC 60947-1 requirements.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-23-10-480
• Country of Origin: United States

Technical Specifications

• Amp ratings AC3: 23
• Amp ratings AC1: 32
• Three phase HP ratings 230V: 7.5
• Three phase HP ratings 460V: 15
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 0
• Coil Voltage 50Hz: 440V
• Coil Voltage 60Hz: 480V
• Manufacturer: Sprecher + Schuh
• Part Number: CA7-23-10-480 + CEP7-EEDB
• Item model number: CA7-23-10-480 + CEP7-EEDB
• Coil Voltage: 480 VAC
• Poles: 3
• Termination: Screw
• UL Motor Switching (AC3): 23 A
• Approvals: CCC, CSA, cULus
• MPN: CA7-23-10-480
• Nominal Coil Voltage: 480 VAC
• Coil Type: Non Latching
• Frame Size: CA7
• General Purpose (AC1): 32 A
• Auxiliary Contact: 1NO
