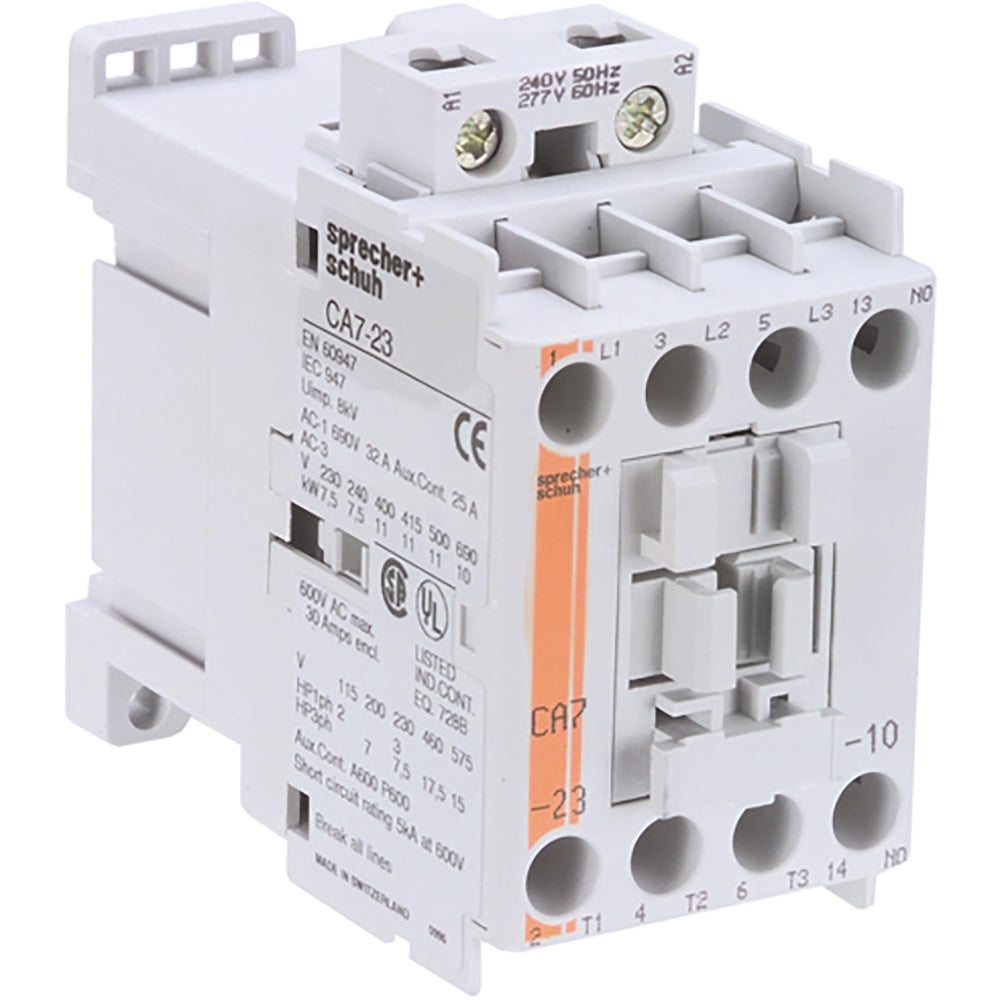

Sprecher + Schuh CA7-23-10-120-L22 Contactor 23A 120 VAC (3 Pole) 01DDAM0000H0004

Product Description

The Sprecher + Schuh CA7-23-10-120-L22 is a CA7 series three-pole AC contactor with a 120 VAC non-latching coil and a 23 A motor switching rating. It features one normally open auxiliary contact, screw terminations, and a non-reversing IEC design. Mechanically linked force-guided contacts maintain safety clearances per IEC 60947-5-1, and the unit supports general-purpose AC1 switching up to 32 A.

• Coil voltage: 120 VAC non-latching coil; three-pole configuration
• Contact ratings: 23 A (AC3 motor switching), 32 A general-purpose (AC1); auxiliary contact: 1 NO
• Construction: screw termination, CA7 frame size, AC non-reversing IEC type, approvals CCC, CSA, cULus

Product Highlights

Three-pole CA7 contactor, 23 A (AC3) with 120 VAC coil, 1 NO auxiliary contact, screw termination, IEC 60947-5-1 compliant

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-23-10-120-L22
