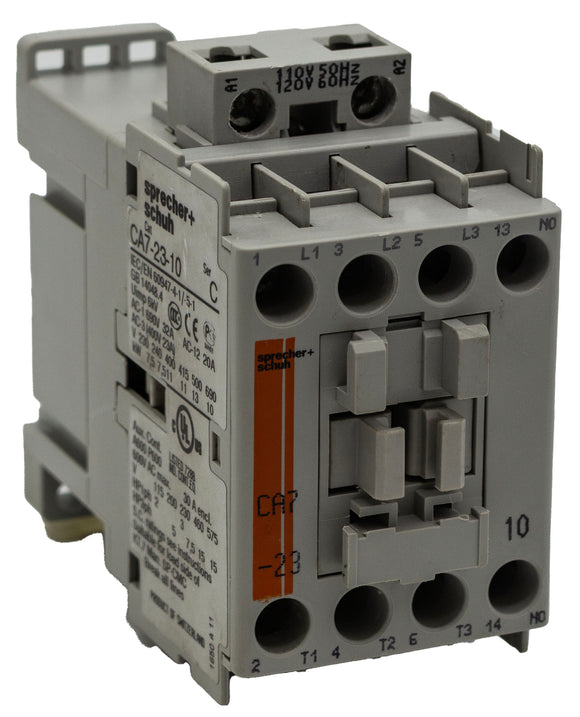

Sprecher + Schuh CA7-23-10-120 Contactor 23 A

Product Description

The SPRECHER + SCHUH CA7-23-10-120 is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 7.5 HP at 230V and 15 HP at 460V. Conforms to IEC/EN 60947-4-1 / 5-1 AC OPERATING COIL VOLTAGE: 110V50HZ, 120V60HZ.

• 3-Pole AC Contactor
• Genuine New OEM Part
• Series CA7 3PH General & Definite Purpose Contactors

Product Highlights

The CA7-23-10-120 is a 3-pole AC contactor with a coil voltage of 110V at 50 Hz and 120V at 60 Hz. It features auxiliary contacts and is suitable for general and definite purpose applications.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-23-10-120

Technical Specifications

• AC3: 23
• AC1: 32
• 230V: 7.5
• 460V: 15
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 0
• Coil Voltage 50Hz: 110V
• Coil Voltage 60Hz: 120V
• Manufacturer: Sprecher & Schuh
• Part Number: CA7-23-10-120
• Item model number: CA7-23-10-120
• Is Discontinued By Manufacturer: No
• Material: copper
• Voltage: 120 Volts
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Product Series: CA7
• Family Series: Sprecher + Schuh Contactors, CA7 Series
• Description: IEC Contactor 23 A
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Voltage: 120 VAC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 32 A
• UL Motor Switching (AC3): 23 A
• Approvals: CCC, CSA, cULus
• Net Weight: 0.865 lbs
• Gross Weight: 0.865 lbs
• Series: CA7
• Terminal Type: Dual Power
• Wattage: 10 kW
• Manufacturer Name: Sprecher + Schuh
• UNSPSC: 39121529
