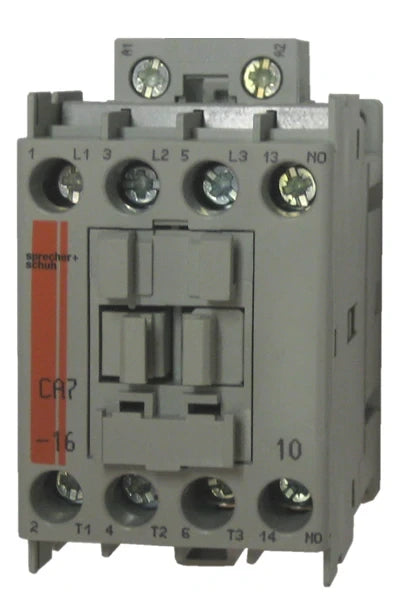

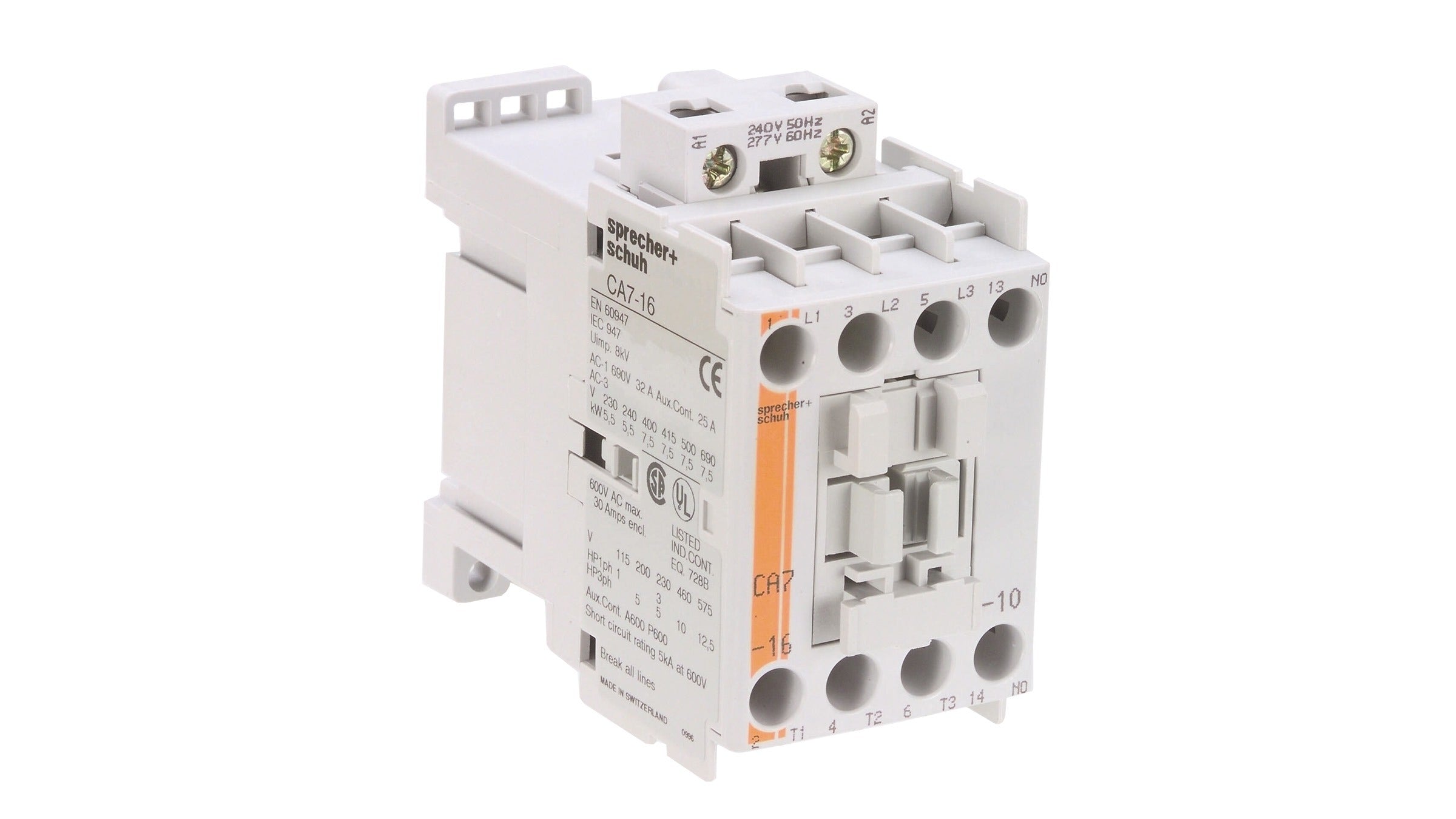

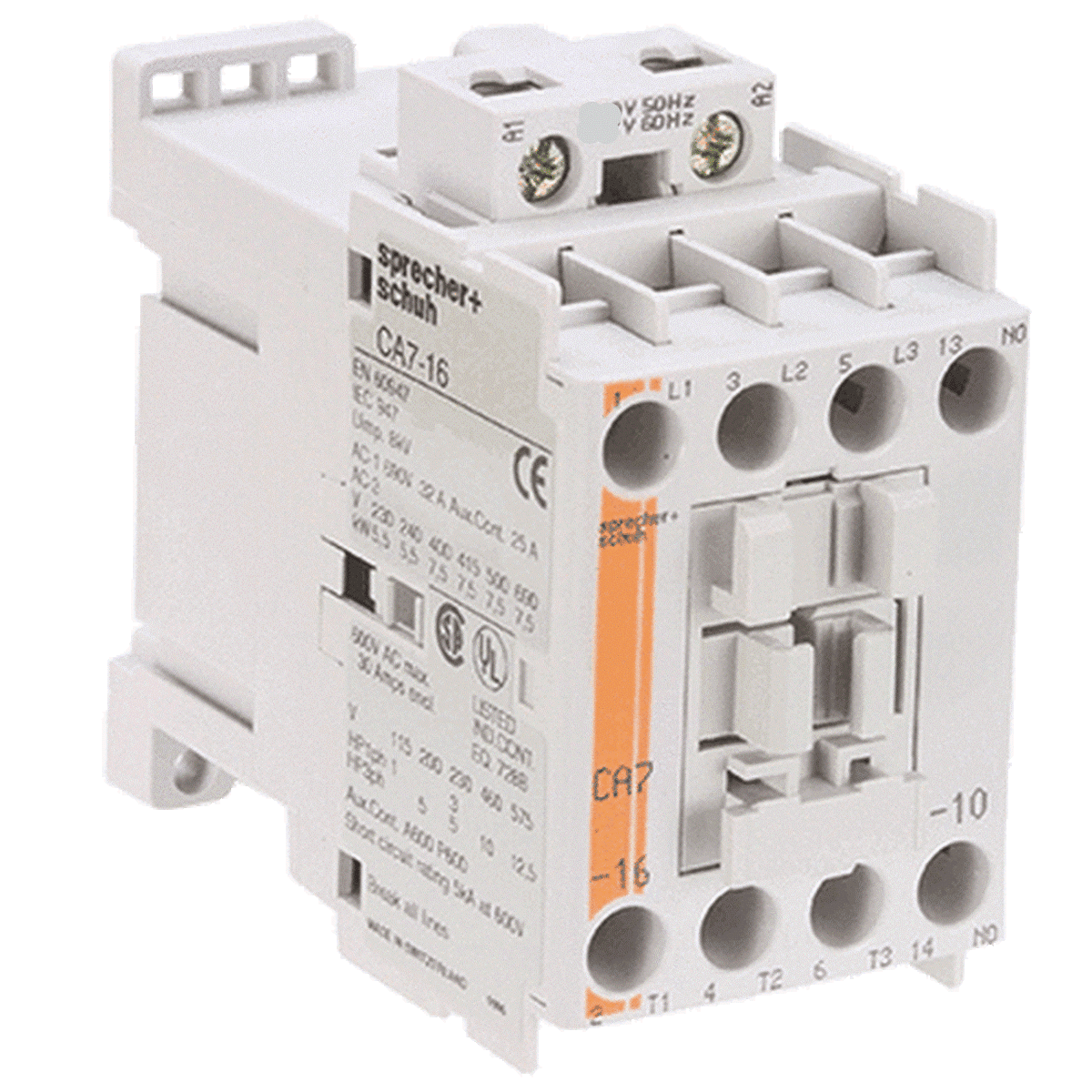

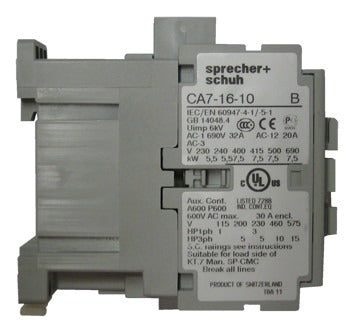

Sprecher Schuh CA7-16-10-480 3-Pole 3-Phase Contactor 5 HP @230 V / 10 HP @460 V (16 A) J0338

Product Description

The Sprecher Schuh CA7-16-10-480 is a three-pole, three-phase IEC-rated contactor for motor control, rated 5 HP at 230 V and 10 HP at 460 V. It carries a 16 A AC-3 rating (32 A AC-1 noted on selection data), accepts a 440 V AC coil at 50 Hz or a 480 V AC coil at 60 Hz, and includes a single normally open auxiliary contact. The unit mounts on a 35 mm DIN rail and uses screw terminals.

• Three-pole, three-phase contactor; IEC/EN 60947-4-1 / 5-1 compliant
• Electrical ratings: 5 HP @ 230 V, 10 HP @ 460 V; 16 A (AC-3), 32 A (AC-1)
• Coil voltage 440 V AC (50 Hz) / 480 V AC (60 Hz); 1 normally open auxiliary contact; 35 mm DIN rail mount

Product Highlights

3-pole motor contactor, 16 A AC-3 rating, 440/480 V AC coil, 1 NO auxiliary

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-16-10-480
• Country of Origin: United States
