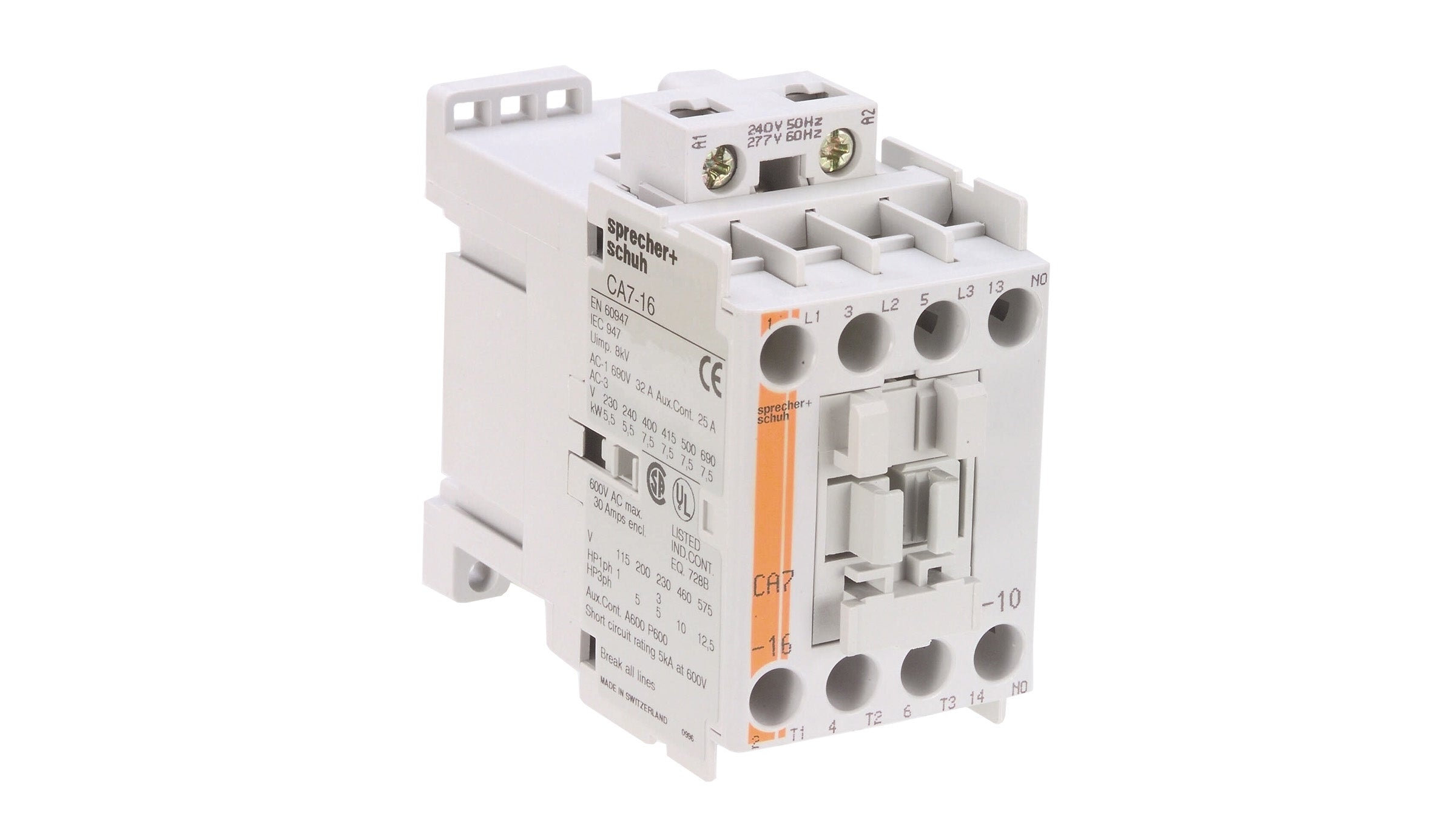

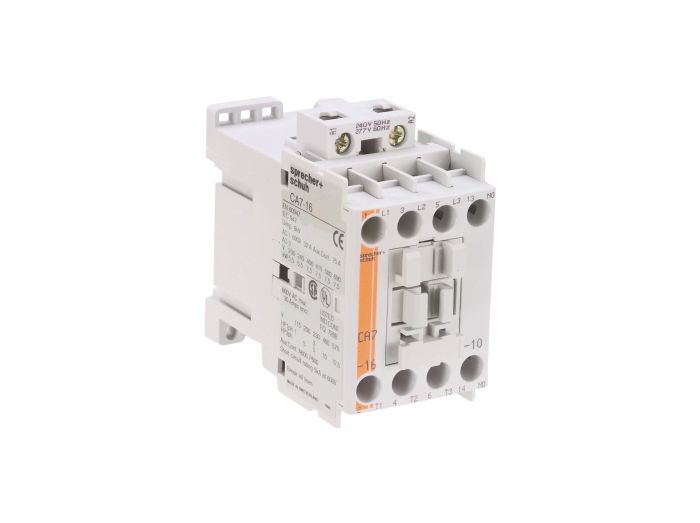

Sprecher + Schuh CA7-16-01-480 Contactor 16A 480VAC (3-Pole)

Product Description

The Sprecher + Schuh CA7-16-01-480 is a CA7 series industrial contactor rated 16 A at 480 VAC with one normally closed auxiliary contact. It is a three-pole, AC non-reversing device with a 480 VAC coil (compatible with 440V 50Hz / 480V 60Hz control voltages). The contactor supports AC-1 duty up to 32 A and AC-3 motor switching up to 16 A for motor control and general industrial switching applications.

• Rated current: 16 A at 480 VAC; three main poles with 1NC auxiliary contact
• Coil/control voltage: 480 VAC (also specified for 440V 50Hz / 480V 60Hz)
• Duty ratings: AC-1 up to 32 A; AC-3 (motor switching) up to 16 A; CA7 series

Product Highlights

CA7 series 3-pole contactor, 16 A 480 VAC, 1 normally closed auxiliary contact, 480 VAC coil, AC-1 32A / AC-3 16A

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-16-01-480
• Country of Origin: United States

Technical Specifications

• Manufacturer: Sprecher + Schuh
• Manufacturer Part Number: CA7-16-01-480
• Series: CA7
• Product Type: Contactor
• Poles: 3
• Rated Current: 16 A
• Rated Voltage: 480 VAC
• Control Voltage: 480 VAC (440V 50Hz / 480V 60Hz)
• Auxiliary Contacts: 1 NC (one normally closed)
• AC-1 Rating: 32 A
• AC-3 Rating: 16 A
• Coil Type: Non latching
• Termination: Screw
• Frame Size: CA7
• Product Description: Contactor 16A 480VAC 1NC
• Series Duty / Application: Motor control and industrial switching
