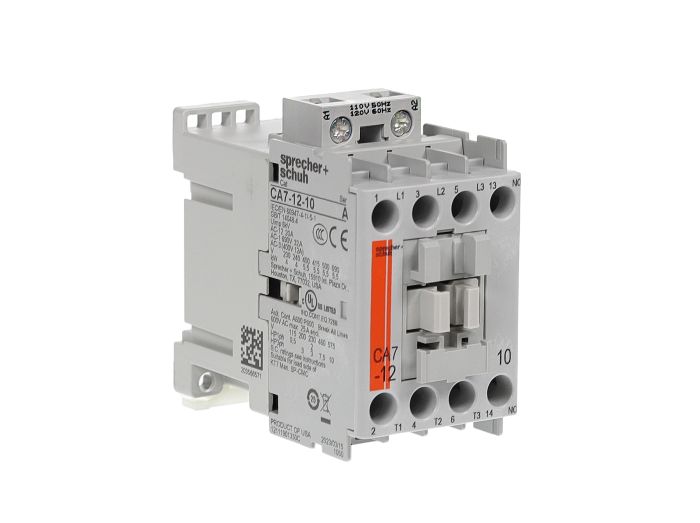

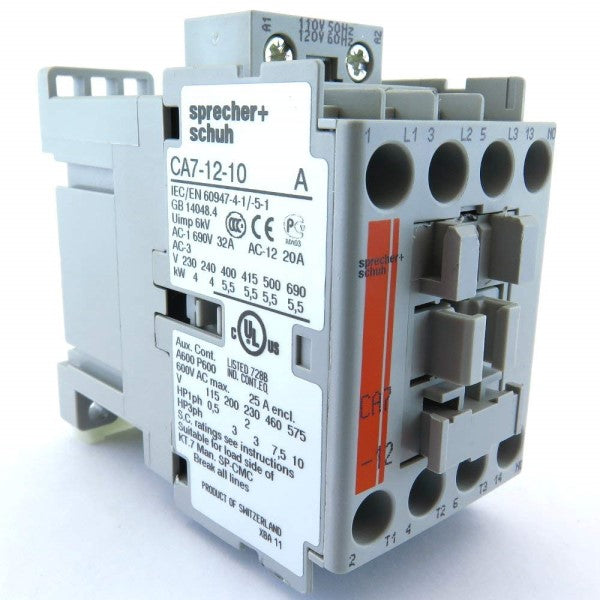

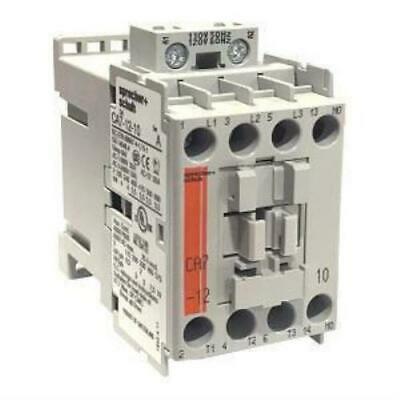

Sprecher + Schuh CA7-12-10-120 Contactor 12 Amps, 120 VAC

Product Description

The Sprecher + Schuh CA7-12-10-120 is a 3-phase IEC rated contactor used for the control of electric motors. It is rated 3 HP at 230V and 7.5 HP at 460V. The contactor features a normally open base mounted auxiliary contact and a 110V50Hz/120V60Hz AC rated coil. It can be base mounted or snapped onto 35mm DIN rail.

• Genuine New OEM Part
• 3-Pole AC Contactor
• Electromechanical Contactor

Product Highlights

The CA7-12-10-120 contactor has mechanically linked contacts and high contact pressure. It is energy efficient and has easier wiring.

Product Information

Standard Information

• Brand: SPRECHER + SCHUH
• Manufacturer Part Number: CA7-12-10-120
• Country of Origin: CN

Technical Specifications

• AC3: 12
• AC1: 32
• 230V: 3
• 460V: 7.5
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 0
• Coil Voltage 50Hz: 110V
• Coil Voltage 60Hz: 120V
• Part No: CA7-12-10-120
• Manufacturer Part Number: 22-381-517-33
• Manufacturer: Sprecher + Schuh
• Product Series: CA7
• Family Series: Sprecher + Schuh Contactors, CA7 Series
• Description: IEC Contactor 12 Amps, 120VAC
• Type: AC Non-Reversing IEC
• Nominal Coil Voltage: 120 VAC
• Coil Voltage: 120 VAC
• Coil Type: Non Latching
• Poles: 3
• Frame Size: CA7
• Auxiliary Contact: 1NO
• Termination: Screw
• General Purpose (AC1): 32 A
• UL Motor Switching (AC3): 12 A
• Approvals: CCC, CSA, cULus
