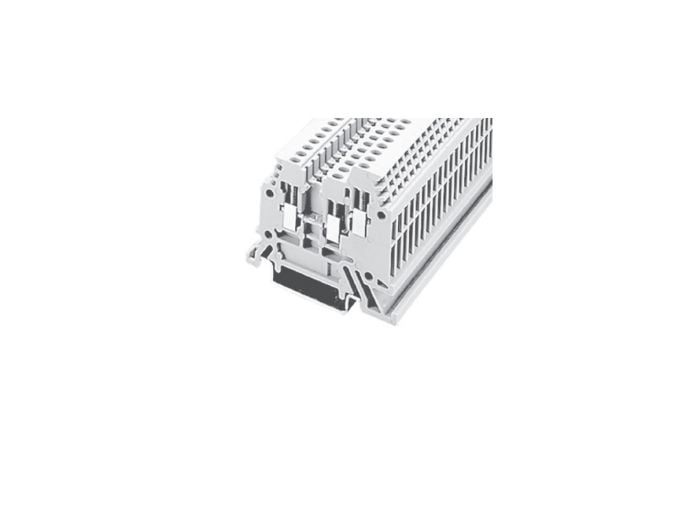

Sprecher and Schuh V7-W3TW Screw connection feed-through terminal block 24 A (5 mm)

Product Description

Sprecher and Schuh V7-W3TW is a screw-connection feed-through terminal block rated 24 A and 800 V that accepts conductors 0.5-2.5 mm^2 and supports up to three conductor entries with two clamp positions per level. Designed for DIN-rail (top hat 35 mm) mounting, it provides a 5 mm pitch, nominal tightening torque 0.5 Nm, 9 mm wire strip length, and an operating temperature range of -40 to 90 C for control and distribution wiring.

• Screw connection feed-through terminal; DIN-rail (35 mm) mounting; 5 mm pitch
• Electrical ratings: 24 A, 800 V; accepts 0.5-2.5 mm^2 (30-14 AWG) conductors
• Mechanical: two clamp positions per level, nominal tightening torque 0.5 Nm, wire strip length 9 mm; dimensions W 5 mm x H 52.1 mm x D 41.6 mm

Product Highlights

Feed-through DIN-rail terminal block; screw connection; 24 A/800 V; 0.5-2.5 mm^2 conductors

Product Information

Standard Information

• Brand: SPRECHER & SCHUH
• Manufacturer Part Number: V7-W3TW
• Country of Origin: Dominican Republic

Technical Specifications

• Brand: Sprecher and Schuh
• Manufacturer Part Number: V7-W3TW
• Product Series: V7
• Component Type: Feed-through terminal block
• Connection Type: Screw connection
• Rated Current: 24 A
• Rated Voltage: 800 V
• Number of Levels: 1
• Conductor Entries: 3
• Clamp Positions per Level: 2
• Wire Size: 0.5-2.5 mm^2
• Wire Size AWG: 30-14 AWG
• Wire Strip Length: 9 mm
• Pitch/Spacing: 5 mm
• Mounting Method: DIN rail (top hat 35 mm)
• Nominal Tightening Torque: 0.5 Nm
• Operating Temperature: -40 to 90 C
• Width: 5 mm
• Height: 52.1 mm
• Depth: 41.6 mm
• Package Quantity: 50
• Approvals: CE, CSA, cUR, IEC, UR
• Country of Origin: Dominican Republic
